Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101BH065-01B
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
800x1280
Brightness :
250 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
143.1(W) x228.7(H) x 2.8(T) mm
Operating Temperature :
-10℃~+60℃
Description

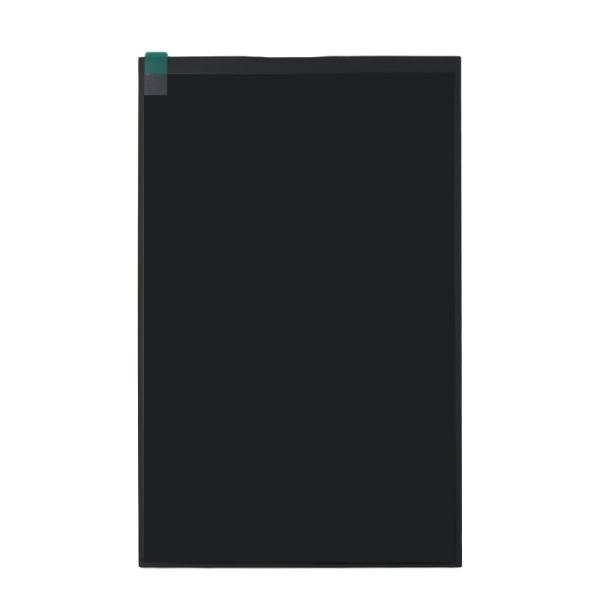

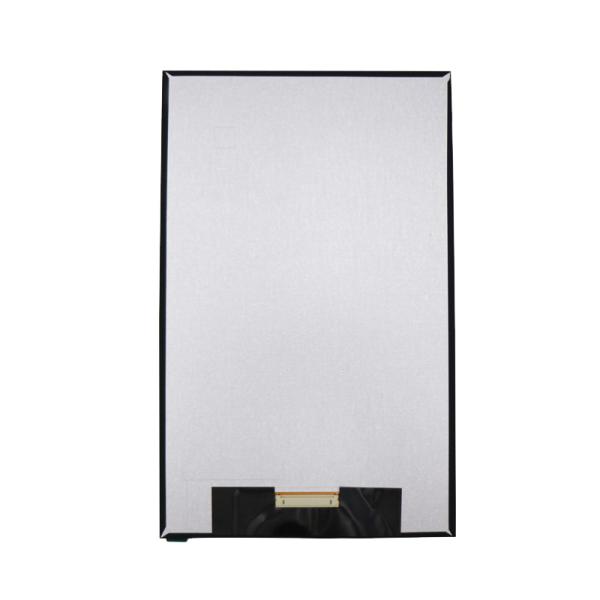

10.1 Inch HD TFT LCD Display 800x1280 High Resolution LVDS Interface

The ZH101BH065-01B is a 10.1-inch HD TFT LCD Display module designed for high-resolution embedded displays, ensuring excellent visibility from any angle, making it ideal for industrial control panels, medical equipment, automotive displays, and smart IoT terminals.

This 10.1-inch HD TFT LCD Display with 800×1280 resolution and 16.7 million colors delivers rich, detailed images with excellent clarity.

It is full-directional visibility (80° from all sides) with Normally Black mode ensures high contrast and color depth in various lighting environments.

Operating Temp: -10°C to +60°C

Storage Temp: -20°C to +60°C
Built to perform in demanding environments with rigorous thermal, vibration, and ESD testing.

The HD TFT LCD Display with white LED backlight with PWM dimming support and up to 20,000 Hrs lifetime.

The 10.1 inch HD TFT LCD DisplayIndustrial-Grade Stability with LVDS interface, wide power range, and compliance with RoHS standards.

​​​​

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH101BH065-01B
Screen Size 10.1 Inch
Resolution 800x1280
Brightness 250 cd/m²(Typ.)
Display Mode IPS, Normally Black
Driver IC NT35521
Interface LVDS, 20pins Connector
Lifetime 20,000Hrs.(Typ)
Active Aera 135.36(W) x216.576(H) mm
Outline Dimension 143.1(W) x228.7(H) x 2.8(T) mm
Backlight 30-Chip white LED, 120mA 15V
Operating Temperature -10℃~+60℃
Storage Temperature -20℃~+60℃
Touch Panel Optional Touch Panel

Product Drawing

10.1 Inch LCD TFT HD Screen 800x1280 High Resolution LVDS Interface Display

10.1 Inch LCD TFT HD Screen 800x1280 High Resolution LVDS Interface Display

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium HD TFT LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
