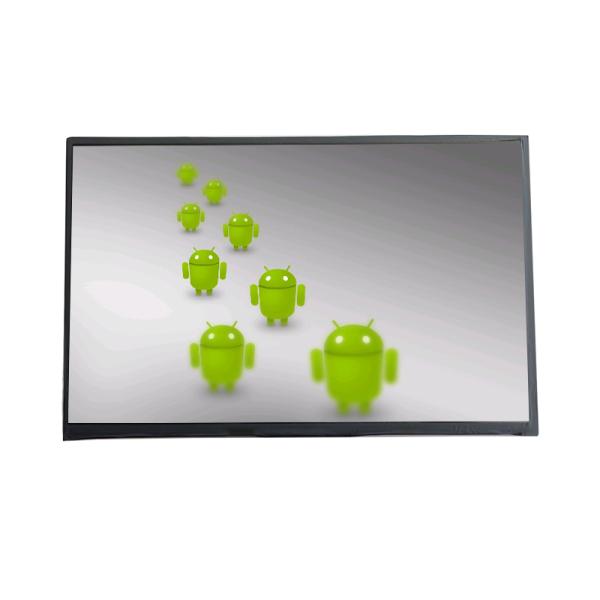

IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101HH058- 03
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1280x800
Brightness :
350 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
229.26(W) x148.9(H)x2.5(T) mm
Operating Temperature :
0℃~+55℃
Description

IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module


The 10.1 inch LCD display module is a high-performance IPS TFT screen designed for versatile scenarios. Featuring 1280×800 HD resolution, it delivers sharp details and vivid colors, while its compact size and reliable performance ensure wide applicability.

Centered on usability, this display supports flexible deployment. It is well-suited for industrial HMIs, portable terminals, medical auxiliary devices, smart retail equipment, and control panels, meeting diverse user demands with adaptable design.

Key Features

  • 10.1 Inch IPS 1280x800
Ideal for space-constrained devices. The 1280×800 resolution paired with IPS technology ensures wide viewing angles and clear visuals, satisfying daily and professional display needs.
  • HD TFT LCD Display
Adopts high-quality HD TFT LCD technology, delivering crisp and stable image quality. It effectively presents fine details, perfectly meeting the display requirements of industrial control, medical auxiliary and commercial scenarios.
  • LVDS Interface & 350 Nits Brightness
Equipped with LVDS interface for stable and efficient data transmission, enabling seamless connection with various host devices. 350 nits brightness ensures clear visibility in common indoor environments, expanding its application scope.

Applications

  • Industrial control and HMI terminals
  • Medical auxiliary display devices
  • Portable detection and measurement tools
  • Smart retail and commercial control panels
  • Portable terminal devices

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems


Product Specification


Item Number
ZH101HH058- 03
Screen Size 10.1 Inch
Resolution 1280x800
Brightness 350 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 40pins Connector
Active Aera 216.96(W) x135.6(H) mm
Outline Dimension 229.26(W) x148.9(H)x2.5(T) mm
Backlight 30-Chip White LED, 200mA 10.2V
Operating Temperature 0℃~+55℃
Storage Temperature -20℃~+60℃
Touch Panel Optional Touch Panel


Product Drawing

IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module

IPS 1280x800 Resolution HD TFT LCD Display 10.1 Inch 350 Nits LVDS LCD Module


Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness


FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!


Call to Action :

  • Upgrade your device visibility with this premium HD TFT LCD display !

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
