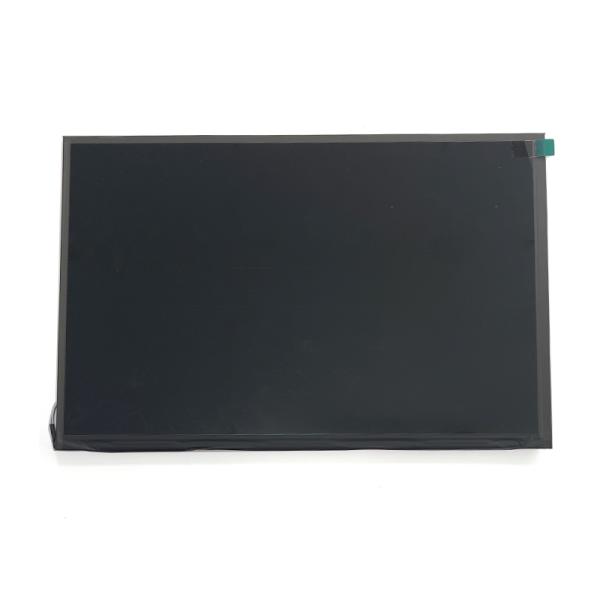

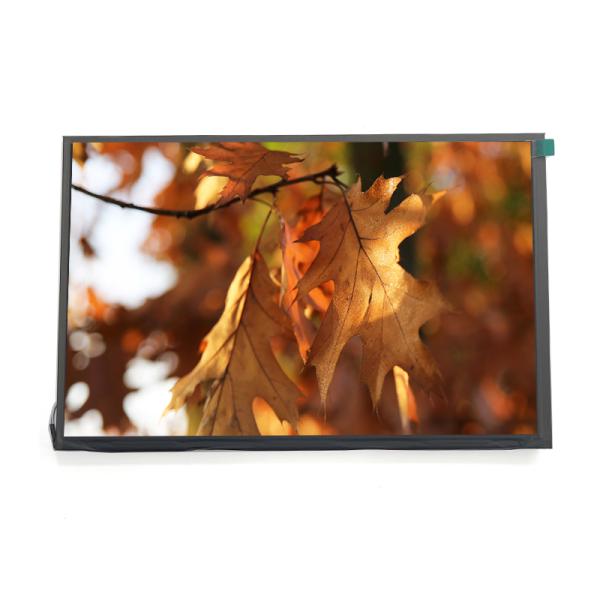

1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101BH053-01B
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1920x1200
Brightness :
500 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
229.2(W)x149.8(H)x4.5(T) mm
Operating Temperature :
-20℃~+70℃
Description

1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel with LVDS Interface

The ZH101BH053-01B 10.1 Inch HD TFT LCD Display is engineered for exceptional clarity and durability, offering an optimal balance of high resolution and brightness. With a 1920x1200 resolution, 500 cd/m² brightness, and IPS technology, this HD TFT LCD Display ensures vibrant, sharp visuals ideal for a wide range of commercial, industrial, and embedded applications. Whether you're developing POS systems, digital signage, industrial control panels, or medical devices.

High Definition Resolution: With 1920x1200 resolution, the ZH101BH053-01B offers crystal-clear images, making it ideal for applications requiring detailed visuals.

Superior Brightness and Viewing Angles: The 500 cd/m² brightness and IPS technology ensure clear, vivid visuals from any angle, ideal for retail, POS systems, and industrial displays.

Energy Efficient: The LED backlight with 220mA 23V ensures low power consumption, providing a cost-effective solution for continuous use.

Wide Temperature Range: With an operating temperature of -20℃ to +70℃, this display is built to withstand harsh industrial environments, ensuring reliable operation under various conditions.

Customizable: The optional touch panel and LVDS interface allow the ZH101BH053-01B to be integrated into interactive applications and custom systems, giving your business greater flexibility and scalability.

Product Specification

Item Number
ZH101BH053-01B
Screen Size 10.1 Inch
Resolution 1920x1200
Brightness 500 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 45pins connector
Active Aera 216.8064(W)x135.504(H) mm
Outline Dimensions 229.2(W)x149.8(H)x4.5(T) mm
Backlight LED, 220mA 23V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel

Product Drawing

1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface

1920x1200 HD TFT LCD Display 10.1 Inch IPS Panel With LVDS Interface

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FAQ

Q1: Does the ZH101BH053-01B support touch functionality?
A1: Yes, the ZH101BH053-01B offers an optional touch panel, which can be added for interactive applications such as POS terminals, kiosks, and self-service systems.

Q2: What is the maximum operating temperature of the ZH101BH053-01B?
A2: The ZH101BH053-01B operates within a temperature range of -20℃ to +70℃, making it suitable for use in both standard and harsh environments.

Q3: Can the ZH101BH053-01B be used for digital signage?
A3: Yes, the ZH101BH053-01B is perfect for digital signage due to its 500 cd/m² brightness, IPS technology, and high resolution. It ensures visibility and clarity in a wide variety of commercial settings.

Q4: Can I use the ZH101BH053-01B in outdoor applications?
A4: The ZH101BH053-01B is designed for indoor environments. For outdoor use, additional protection (e.g., a weatherproof enclosure) may be required.

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
