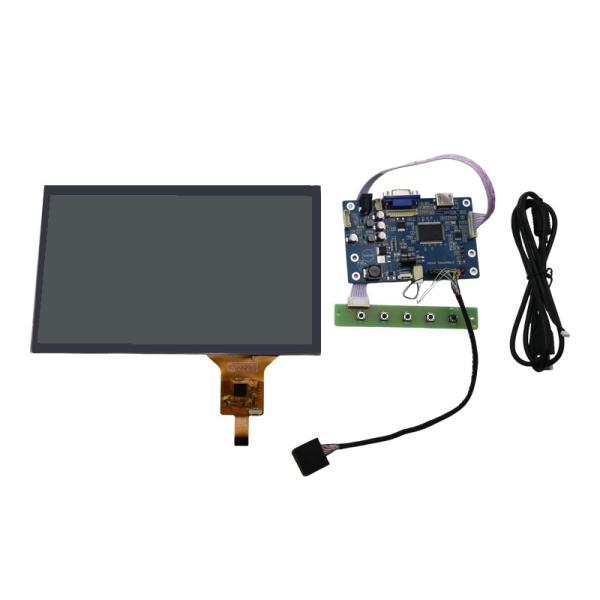

1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101BH062-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1920x1080
Brightness :
280 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
229.91(W)×135.74(H)×2.8(T) mm
Operating Temperature :
0℃~+50℃
Description

FHD 1920x1080 TFT LCD Display 10.1 Inch with LVDS Interface 40pins

The ZH101BH062-01A is a high-performance HD TFT LCD Display engineered for professional and industrial applications that demand precise image reproduction, stable operation, and long-term reliability.

Featuring a 10.1-inch screen with 1920x1080 Full HD resolution, this display delivers exceptional image clarity and detail. The IPS, Normally Black technology ensures wide viewing angles and true-to-life color accuracy, making it ideal for use in environments where consistent visual performance is critical.

With its LVDS 40-pin interface, the ZH101BH062-01A offers a stable and efficient connection for integration into embedded systems, control panels, and other professional-grade devices.

Advantages of the 10.1 Inch HD TFT LCD Display
Full HD Visuals – Crisp, detailed 1920x1080 resolution for professional imaging needs

Wide Viewing Angles – IPS technology ensures consistent visuals from any direction

Flexible Integration – LVDS 40-pin interface for easy system compatibility

Industrial Reliability – Built for stability in demanding working environments

Optional Touch Panel – Upgrade to interactive control for advanced applications

Applications

Industrial control and monitoring systems

Medical diagnostic and imaging equipment

Transportation displays and onboard systems

High-end vending machines and kiosks

Embedded computing and automation panels

​​​​

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH101BH062-01A
Screen Size 10.1 Inch
Resolution 1920x1080
Brightness 280 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 40pins Connector
Active Aera 125.712(W)x223.488(H) mm
Outline Dimension 229.91(W)×135.74(H)×2.8(T) mm
Operating Temperature 0℃~+50℃
Storage Temperature -10℃~+60℃
Touch Panel Optional Touch Panel

Product Drawing

1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins

1920x1080 Full HD TFT LCD Screen 10.1 Inch With LVDS Interface 40pins

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium HD TFT LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
