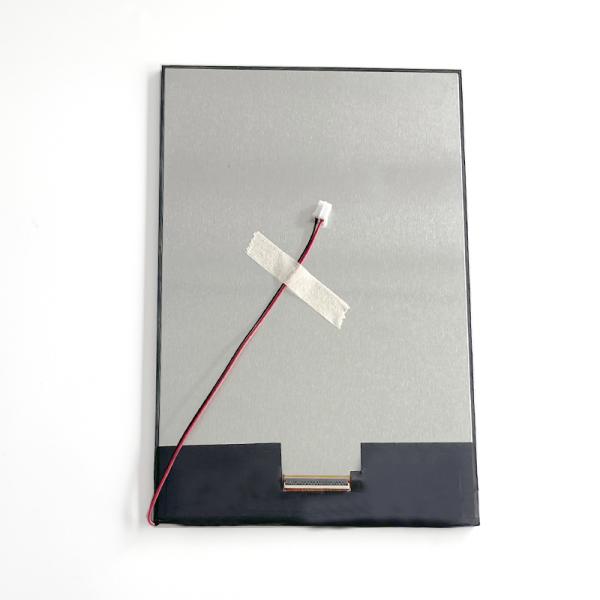

High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070TH001-03B
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
1200x1920
Brightness :
1500 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
111.0(W) x166.0(H) x3.29(T) mm
Operating Temperature :
-20℃~+70℃
Description

7 Inch HD TFT LCD Display High Brightness 1500nits with MIPI interface

The ZH070TH001-03B 7.0 Inch HD TFT LCD Display offers stunning visual clarity with a resolution of 1200x1920 and a remarkable brightness of 1500 cd/m². This HD TFT LCD Display is engineered to provide vivid, high-definition images that are easy to read and interact with, even in bright environments or outdoor settings.

Whether you are looking to enhance your digital signage, interactive kiosks, POS systems, or other applications, this display offers exceptional performance.

Featuring IPS technology, it guarantees superior color accuracy and wide viewing angles, making it a perfect solution for a variety of consumer-facing displays.

Exceptional Brightness: With a brightness of 1500 cd/m², this HD TFT LCD Display ensures that your content is easily visible even in high-light environments, making it ideal for outdoor applications and bright spaces.

High-Resolution Display: The 1200x1920 resolution offers crisp, clear images and vibrant colors, bringing your content to life with exceptional detail.

Optional Touch Panel: The ZH070TH001-03B includes the option for an optional touch panel, enhancing interactivity for interactive kiosks, digital signage, and other touch-enabled devices.

Customize Your Display with OEM Options

Touch Panel Integration: Add a touch panel for interactive kiosks and self-service terminals.

Brightness Customization: We can adjust the brightness to suit your specific application needs.

Custom Designs: If you have specific requirements, we can work with you to design a custom solution.

Product Specification

item ZH070TH001-03B
Screen Size 7.0 Inch
Resolution 1200x1920
Brightness 1500 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface MIPI, 40pins Connector
Active Aera 94.5(W) x 151.2(H) mm
Outline Dimension 111.0(W) x166.0(H) x3.29(T) mm
Backlight 56-Chip white LED, 400mA 21V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel

Product Drawing

High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface

High Brightness HD TFT LCD Display 7 Inch 1500nits With MIPI Interface

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
