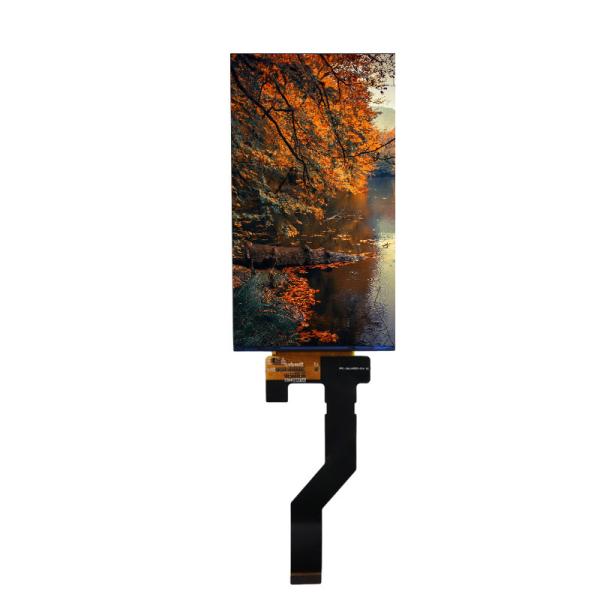

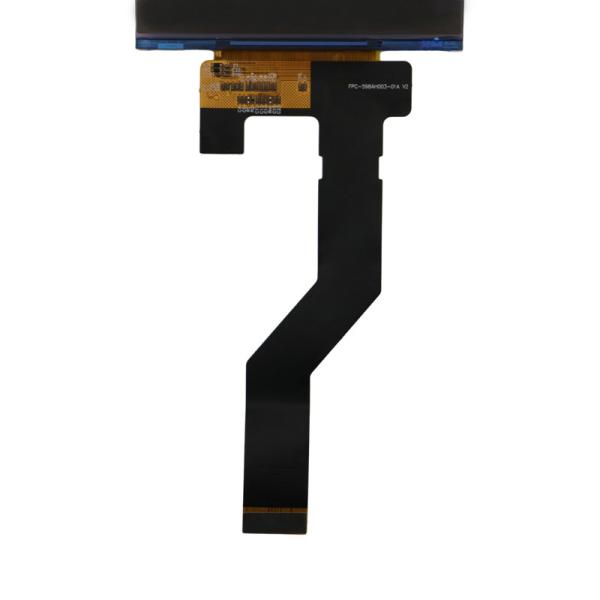

OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH598AH003-011
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
5.98 Inch
Resolution :
1440x2560
Brightness :
400 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
76.72(W) x139.62(H) x1.32(T) mm
Operating Temperature :
-20℃~+70℃
Description

OEM 5.98 Inch HD TFT LCD Display Module 1440x2560 MiPi Interface

Ideal for embedded displays, high brightness, IPS technology. Fast delivery.

This 5.98 inch HD TFT LCD display module offers a stunning 1440x2560 resolution with IPS wide viewing technology and MIPI interface. Designed for compact high-performance applications, this module is ideal for embedded systems, handheld devices, industrial monitors, and medical displays..

This HD TFT LCD Display combines sleek design and powerful performance, making it perfect for advanced visual interfaces in portable or fixed devices.

Application Scenarios:

This 5.98 Inch HD TFT LCD Display is widely used in:

Industrial handheld terminals

Medical monitors and lab displays

Smartphones or VR headsets (2K prototype screens)

Embedded display systems with Raspberry Pi / STM32 / Jetson Nano

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH598AH003-011
Screen Size 5.98 Inch
Resolution 1440x2560
Brightness 400 cd/m²(Typ.)
Interface MIPI 8 Lanes, 50pins Connector
Driver IC NT35598
Display Mode
IPS, Normally Black
View Angle 80/80/80/80
Active Aera 74.52(W) x132.48(H) mm
Outline Dimension 76.72(W) x139.62(H) x1.32(T) mm
Backlight 16 White LED Chip 40mA 25V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel

Product Drawing

OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display

OEM 5.98 Inch HD LCD TFT Display Module 1440x2560 MiPi Interface Display

Why Choose ZhanHui HD TFT LCD Display?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

Q1: What is the refresh rate of this 5.98 inch HD TFT LCD Display?
A1: Typically 60Hz. Please consult for 90Hz or higher frame rate customization.

Q2: Can this LCD module be used with Raspberry Pi?
A2: Yes, with our HDMI-to-MIPI adapter board, it's plug-and-play with Raspberry Pi 3/4.

Q3: Do you provide customization services?
A3: Absolutely. We support touch integration, FPC re-design, brightness enhancement, and connector changes.

Q4: Is a capacitive touch version available?
A4: Yes. Capacitive touch panels (CTP) with USB or I²C interface can be added on demand.

Call to Action :

  • Upgrade your device visibility with this premium HD TFT LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
