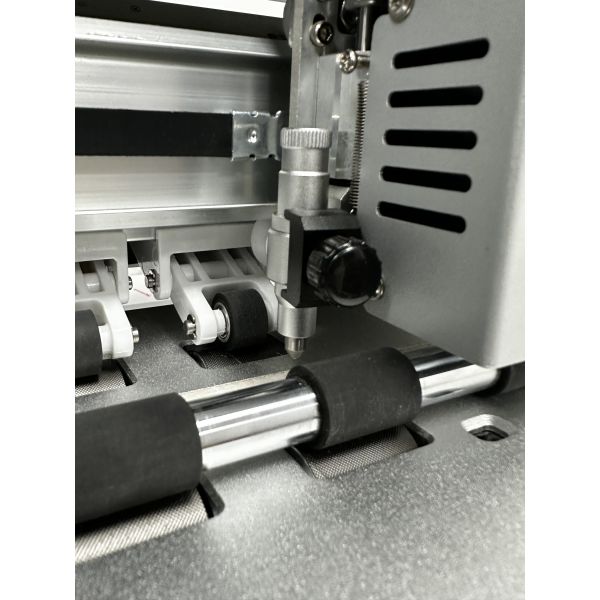

STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor
Specifications
Brand Name :
Anycut
Model Number :
STD350
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$713~970/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L790mm*W510mm*H450mm
max force :
2000g
max cutting speed :
1000mm/s
max material thickness :
450gsm
support software :
CDR/AI/PS/Contour software/Signmaster
auto contour cut :
4.3 inch touch screen
suitable cutting material :
self-adhesive sticker/coated paper/PVC
connect or interface :
USB cable/Udisk/web cable/WIFI
positioning mode :
Qr code/Dot/Right angle
motor :
stepper motor
max cutting width :
330mm
Description

STD350 A3/A4 Double Cutter Head Indentation Die Cutting Machine With Stepper Motor



This basic die cutting machine is designed for versatile applications such as label cutting, hang tag engraving, and sheet processing. It offers multiple connectivity options including USB, U-disk, network cable, and WIFI, ensuring flexible operation. With a maximum cutting width of 330mm and a robust 2000g force, it delivers reliable performance for your basic cutting needs.


MODEL ZKST350
Max. media width 335mm
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor Stepper motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 870mm*W 550mm*H 550mm
Machine size L 700mm*W 425mm*H 310mm
Gross/Net weight 40kgs/32kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1200mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory １Ｇ
Support system All versions of windows
