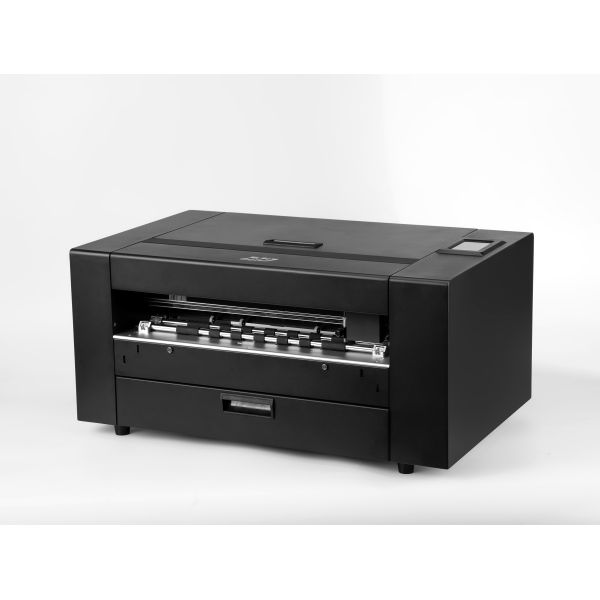

High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DW
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$1641~1827/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L890mm*W580mm*H570mm
support software :
CDR/AI/PS/Contour software/Signmaster(optional)
Blade type :
Rowland blade
Max cutting width :
340mm
Support system :
All version of windows
suitable cutting material :
Self-adhesivesticker/coated paper/PVC
Auto contour cut :
Camera(automatically contour cutting)
max cutting speed :
1600mm/s
Connect or interface :
USB cable/Udisk/web cable/WIFI
max force :
2000g
Positioning mode :
Qr code/Dot/Right angle
Description

High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine


The ZKSVD370DW is a professional, high-performance digital cutting solution designed for precision and efficiency.

- Max Cutting Width: 340mm, ideal for handling a wide range of media sizes.

- Max Cutting Speed: 1600mm/s, powered by a high-speed servo motor for rapid production.

- Max Cutting Force: 2000g, ensuring clean and precise cuts through diverse materials.


Perfect for print shops, sign-making businesses, packaging manufacturers, and professional graphic design studios. It is the ideal choice for environments requiring high-volume, high-precision cutting operations, such as label production, custom packaging, and promotional material creation.



MODEL ZKSVD370DW
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 770mm*W 475mm*H 370mm
Gross/Net weight 63kgs/47kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
