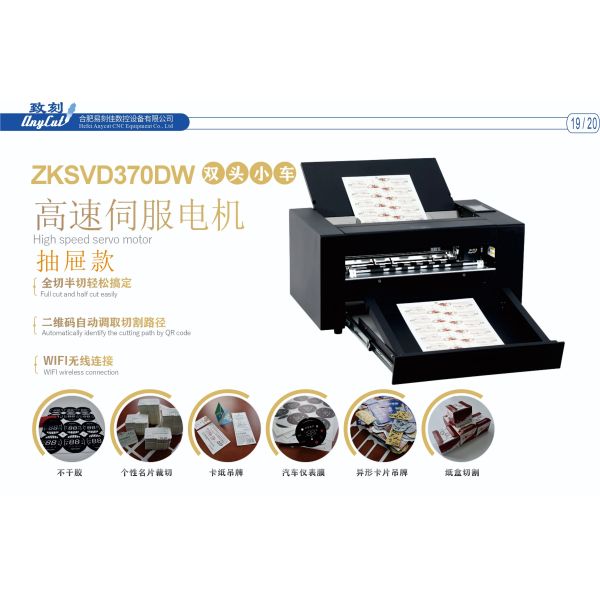

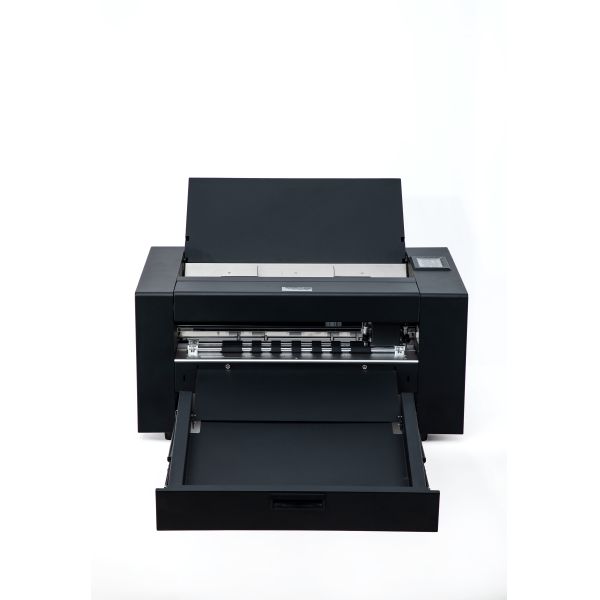

ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DW
Certification :
CE/FCC
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$1641~1827/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L890mm*W580mm*H570mm
Max cutting width :
340mm
Positioning mode :
Qr code/Dot/Right angle
Connect or interface :
USB cable/Udisk/web cable/WIFI
suitable cutting material :
Self-adhesivesticker/coated paper/PVC
support sofrware :
CDR/AI/PS/Contour software/Signmaster(optional)
Support system :
All version of windows
Blade type :
Rowland blade
Auto contour cut :
Camera(automatically contour cutting)
Description

ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine



ZKSVD370DW cutting machine—a high-performance tool that’s perfect for your material cutting needs, and here’s why it stands out:

1. High efficiency:

Equipped with a high-speed servo motor, it reaches a max cutting speed of 1600mm/s, boosting your production efficiency significantly.
2. Smart operation:

Features camera automatic contour cutting and QR code path recognition; the 4.3-inch touch screen makes operation straightforward, even for full/half-cut tasks.
3. Strong versatility:

Uses durable Roland blades to cut self-adhesive paper, PVC, coated paper (up to 450gsm) precisely (±0.01mm cutting accuracy), suitable for stickers, tags, paper boxes and more.
4. Easy connectivity & compatibility:

Supports USB/Udisk/web cable/WIFI, works with all Windows systems and common design software (CDR/AI/PS), fitting right into your existing workflow.


ZKSVD370DW Dual Heads High Speed CCD Auto Contour Compact Die Cutting Machine

MODEL ZKSVD370DW
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 770mm*W 480mm*H 370mm
Gross/Net weight 63kgs/47kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
