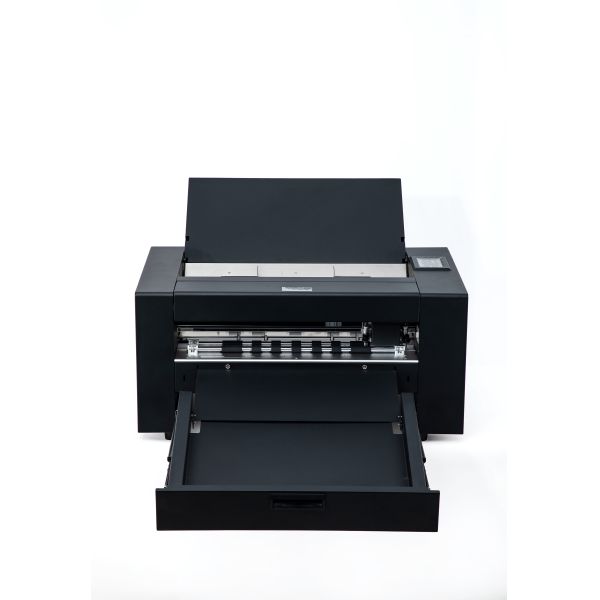

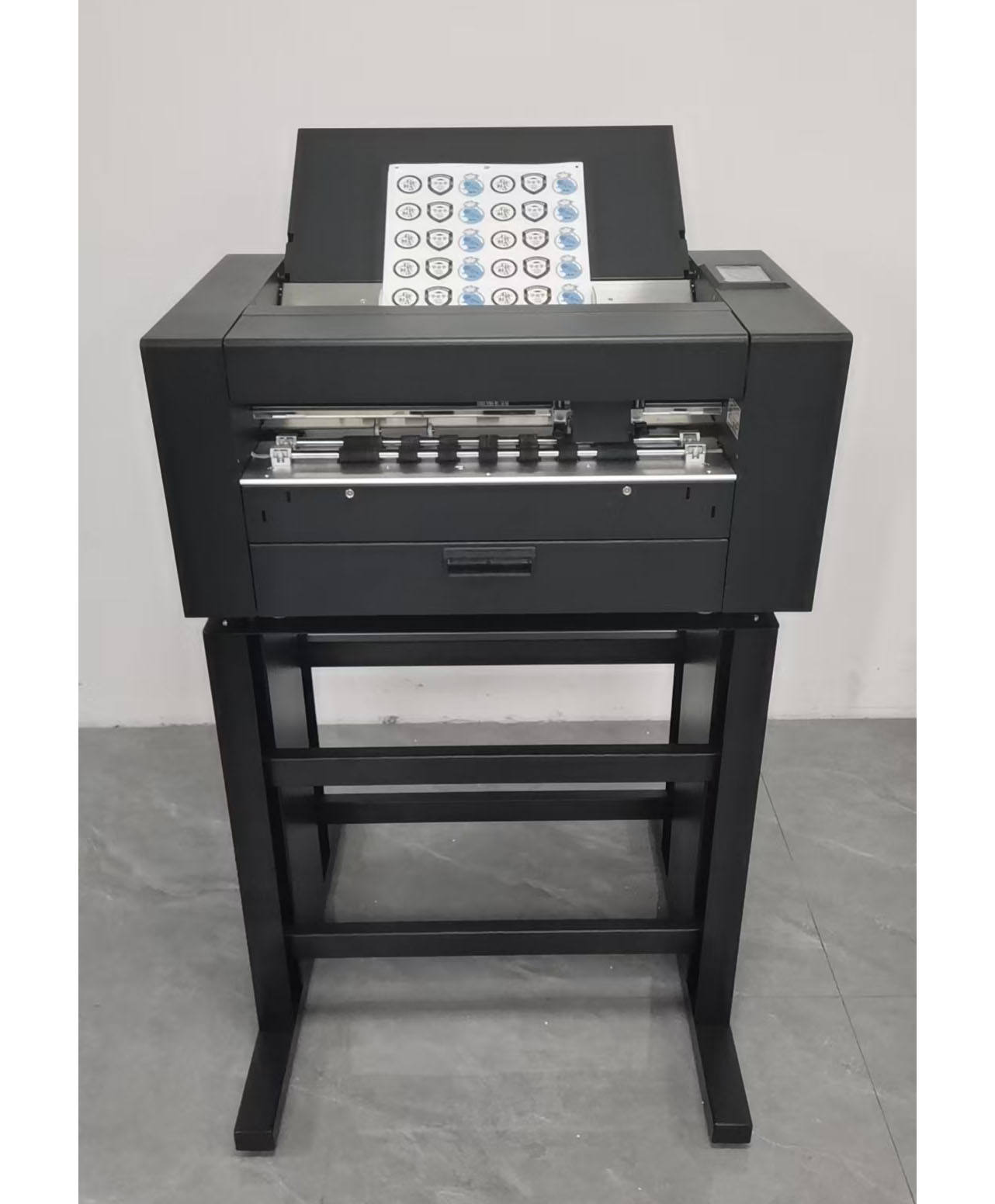

Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DW
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$1641~1827/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L890mm*W580mm*H570mm
support software :
CDR/AI/PS/Contour software/Signmaster(optional)
Blade type :
Rowland blade
Max cutting width :
340mm
Support system :
All version of windows
suitable cutting material :
Self-adhesivesticker/coated paper/PVC
Auto contour cut :
Camera(automatically contour cutting)
max cutting speed :
1600mm/s
Connect or interface :
USB cable/Udisk/web cable/WIFI
max force :
2000g
Positioning mode :
Qr code/Dot/Right angle
Description

Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine


1600mm/s High-Speed Servo Motor: Dual-head trolley design boosts efficiency for high-volume jobs.


  • Full & Half-Cut Flexibility: Seamlessly handles self-adhesive stickers, cards, and small-batch packaging.
  • Smart Auto Contour Cutting: Camera auto-detects paths via QR code/dot/right angle for perfect alignment.
  • WIFI + Multi-Interface: USB, U-disk, Ethernet, and wireless connectivity for easy file sharing.
  • ±0.01mm Cutting Accuracy: Delivers consistent, professional results every time.
  • 4.3-inch Touchscreen: Intuitive control for quick setup and operation.
  • Drawer-style Paper Tray: Clean, convenient material handling and collection.
  • Wide Compatibility: Cuts self-adhesive, coated paper, PVC (up to 450gsm), and works with CDR/AI/PS design software.


Ideal for labels, business cards, glossy silver stickers, and custom die-cut packaging.



Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine



Anycut Drawer Type Double Heads A3/A4 High Speed And Precision Label Cutting Machine



MODEL ZKSVD370DW
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 770mm*W 480mm*H 370mm
Gross/Net weight 63kgs/47kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
