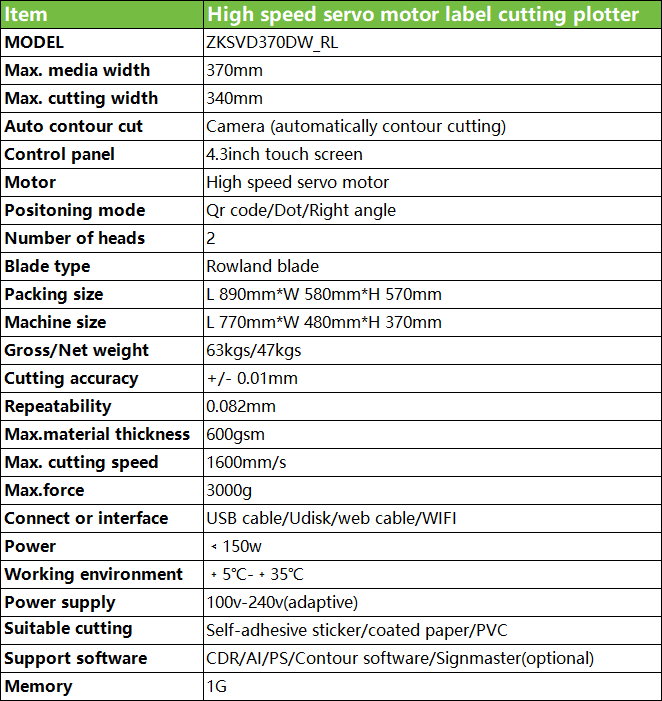

Specifications
Brand Name :
Anycut
Model Number :
SVD370DW_RL
Certification :
CE/FCC/RoHS
Place of Origin :
Anhui
MOQ :
1 piece
Price :
$1541-$2112
Payment Terms :
T/T,Western Union
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L 890mm*W 580mm*H 570mm
Max. media width :
370mm
Max.cutting width :
340mm
User Interface :
4.3" HD Color LCD Touchscreen
Auto contour cut :
Automatically camera contour cutting
Motor type :
High speed servo motor
Max. cutting speed :
1600mm/s
Max.force :
3000g(600gsm thinkness material)
Connect or interface :
USB cable/Udisk/web cable/WIFI
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Support software :
CDR/AI/PS/Contour software/Signmaster(optional)
Auto-Feed system :
Camera-Assisted QR Code/Dot/Right angle Alignment
Support system :
All versions of windows
Description

Anycut SVD370DW_RL Wheel-Type Creasing & Cutting Machine Precise Positioning 1600mm/s



The SVD370DW_RL Wheel Indentation High-Speed Servo Motor Cutting Machine:

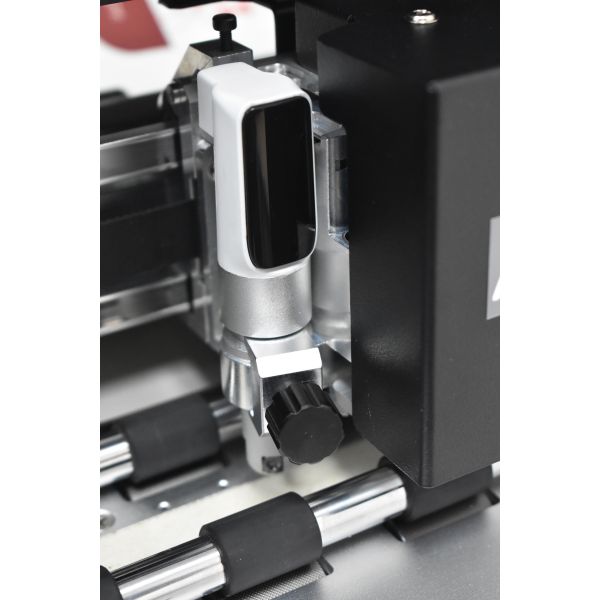

✅ Dual Creasing Head System

Equipped with ceramic creasing head (longer lifespan, lower consumable cost) and wheel-type creasing head (3000g uniform pressure, prevents material cracking/deformation), compatible with 120g–600gsm materials for professional, clean creases.

✅ All-in-One Full & Half Cut

Dual Roland blades complete full cut and half cut in one pass, no secondary operation needed; creasing wheel and cutter work synchronously for smooth edges.

✅ Auto Contour Recognition & Precise Positioning

Built-in camera scans QR codes/patterns to auto-generate cutting paths; QR code/dot/right-angle positioning delivers ±0.01mm cutting accuracy and 0.082mm repeatability, eliminating manual layout errors.

✅ 1600mm/s High-Speed Servo Performance

Powered by high-speed servo motor, reaches 1600mm/s cutting speed; processes 150–200 sheets per batch, ideal for small-batch multi-order production.

✅ WiFi Wireless & Multi-Interface Connectivity

Supports WiFi wireless file transfer (cable-free), plus USB, LAN and USB disk ports for flexible file input; 4.3-inch touch screen for intuitive operation.

✅ Drawer-Type Paper Tray & Labor-Saving Design

Cut materials automatically drop into the drawer tray for easy collection, reducing manual intervention and sorting work.

✅ Wide Software & Material Compatibility

Supports all Windows versions, 1G memory, compatible with CDR/AI/PS/Contour software (SignMaster optional); handles self-adhesive, coated paper, PVC, cardboard, PET and more.

✅ Versatile Application Scenarios

Perfect for custom business cards, shaped hang tags, car instrument films, carton cutting, special sticker die-cutting and other small-batch production needs.
