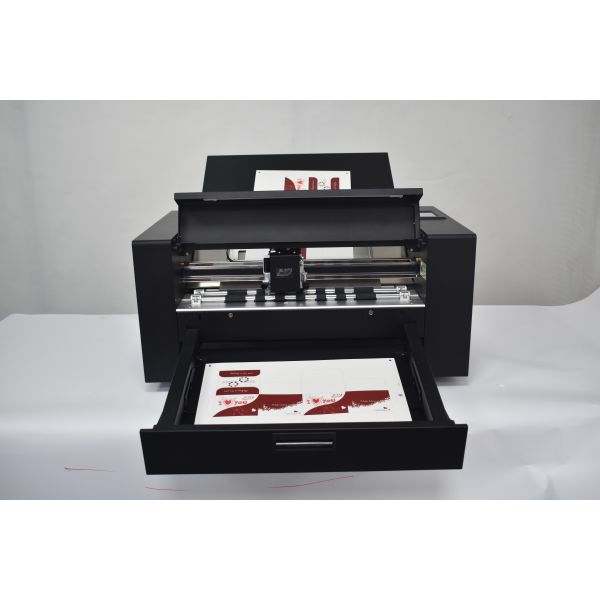

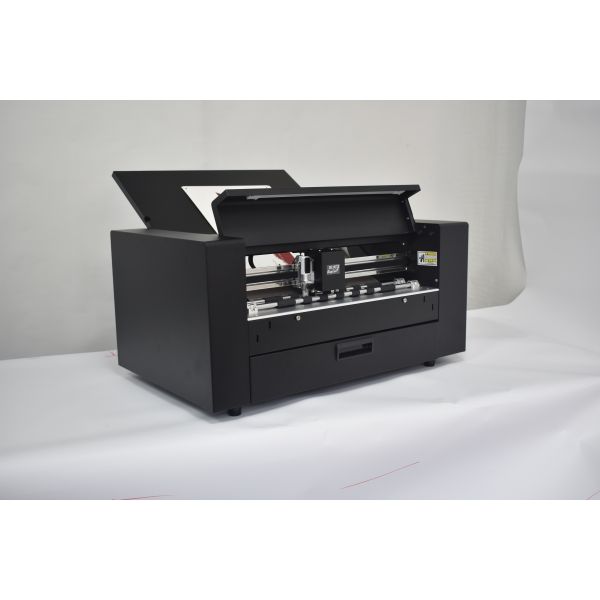

ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DW_RL
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1piece
Price :
$1145~1622/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days
Delivery Time :
20~30 work days
Packaging Details :
L890mm*W580mm*H570mm
motor :
high speed servo motor
Control panel :
4.3 inch touch screen
package detail :
wooden case
Support software :
CDR/AI/PS/Contour software/Signmaster(optional)
Connect or interface :
USB cable/Udisk/web cable/WIFI
Max cutting speed :
1600mm/s
Positioning mode :
Qr code/Dot/Right angle
max cutting width :
340mm
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Max force :
3000g
Max material thickness :
600gsm
Auto contour cut :
Camera(automatically contour cutting)
Description

ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter



High-Speed & Precision Cutting for Professional Labels & Packaging

- 1600mm/s Ultra-Fast Cutting Speed & 3000g Max Force: Finish jobs in record time with powerful, precise wheel indentation.

- All-in-One Full & Half Cut: One-pass molding for seamless label production, no extra steps needed.

- Auto Contour Cut via QR Code: Scan QR codes to auto-generate cutting paths—smart, efficient, error-free.

- 4.3" Touch Screen + WiFi Connectivity: Intuitive control and wireless operation for flexible workflow.

- Versatile Material Compatibility: Cuts self-adhesive stickers, coated paper, PVC, card tags, business cards, and more.

- High Precision: ±0.01mm cutting accuracy and 0.082mm repeatability for consistent, professional results.

Ideal for label makers, packaging producers, and print shops demanding speed, accuracy, and versatility.



MODEL ZKSVD370DW_RL
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 768mm*W 455mm*H 336mm
Gross/Net weight 63kgs/46kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
