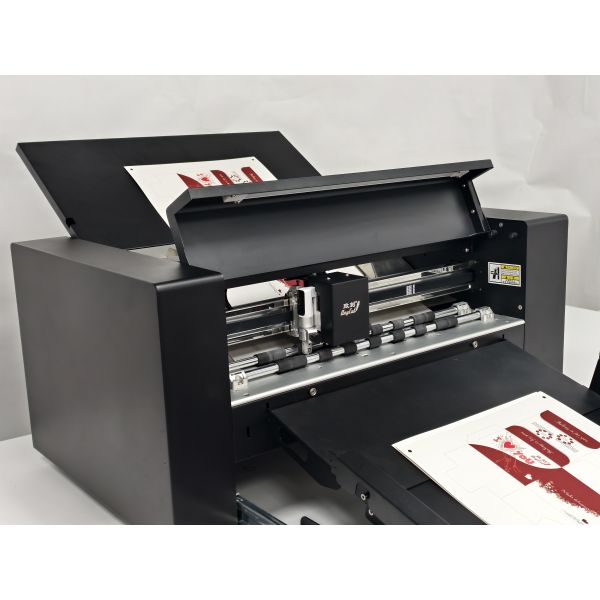

Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DW_RL
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
￥$1145~1622/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days
Delivery Time :
20~30 work days
Packaging Details :
L890mm*W590mm*H570mm
Positioning mode :
Qr code/Dot/Right angle
support system :
All versions of windows
Control panel :
4.3 inch touch screen
suitable cutting material :
self-adhesive sticker/coated/PVC
Connect or interface :
USB cable/Udisk/web cable/WIFI
Max material thickness :
600gsm
Support software :
CDR/AI/PS/Contour software/Signmaster(optional）
Max cutting speed :
1600mm/s
Max force :
3000g
Description

Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine




1. One-Pass Efficiency:

Delivers both full and half cuts in a single pass, paired with a high cutting speed of 1600mm/s for fast, streamlined production.


2. Smart QR Code Positioning:

Automatically identifies cutting paths via QR code, and supports dot/right-angle positioning for pinpoint accuracy of ±0.01mm.


3. Powerful & Precise Performance:

Features a 3000g max cutting force and Roland blade, ensuring clean, precise cuts on materials up to 600gsm thick.


4. Flexible Connectivity:

Offers multiple interface options including USB, U-disk, wired network, and WiFi, enabling seamless integration into any workflow.


5. User-Friendly Control:

The 4.3-inch touch screen and high-speed servo motor provide intuitive, responsive operation for consistent, professional results.


6. Broad Compatibility: Supports CDR/AI/PS/Contour software and Signmaster (optional), and works with all Windows operating systems, making it adaptable to diverse design environments.




MODEL ZKSVD370DW_RL
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 768mm*W 455mm*H 336mm
Gross/Net weight 63kgs/47kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
