Specifications
Brand Name :
Anycut
Model Number :
ZKST350
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$663-828/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L 790mm*W 510mm*H 450mm
Contour Cutting Tech :
Camera Auto-contour cutting
Material width :
335mm
Paper width :
330mm
Control panel :
4.3inch touch screen (Visual Operation)
Positoning mode :
QR Code/Dot/Right Angle (Multi-Mode Precise Positioning)
File Transfer Method :
WIFI/USB/QR Code Scan/Ethernet (Multi-Channel Transfer)
Max.cutting Speed :
1000mm/s
Connectivity :
Udisk,USB,Web Cable,WiIFI
Cutting force rating :
2000g super force for thick and tough materials
Repeatable precision :
0.082mm for Consistent Batch Production
Power Supply Compatibility :
100-240V Global Adaptive (Wide Voltage Compatible)
Applicable Material Range :
Custom small cards, business cards, car dashboard films, self-adhesive labels
Max Cutting Material Thickness :
450gsm (Thick Material Compatible)
Supported Os :
All windows
Feeding System :
Double row pressure wheel for stable, wrinkle-free feeding
Power Supply :
100V-240V (auto-adaptive) global voltage
Description

High Precision ZKST350 Cutting Plotter with Camera for PVC, Self-Adhesive & Dashboard Films



The Anycut ZKST350 double-row pressure wheel die-cutting machine:
✅ Camera Automatic Contour Cutting

Equipped with a high-definition camera for intelligent positioning, it automatically identifies file contours without manual tracing, greatly improving the precision and efficiency of cutting custom cards, business cards, and car films.

✅ WIFI Wireless Connection

Supports multi-channel transmission via WiFi/USB/Ethernet, freeing from cable constraints. Files can be remotely sent from computers or mobile phones, ideal for multi-station collaborative work.

✅ 2000g Super Force

Powerful cutting force easily handles thick materials like PVC self-adhesive, gold foil self-adhesive, car dashboard films, and crystal labels, with smooth and burr-free edges.

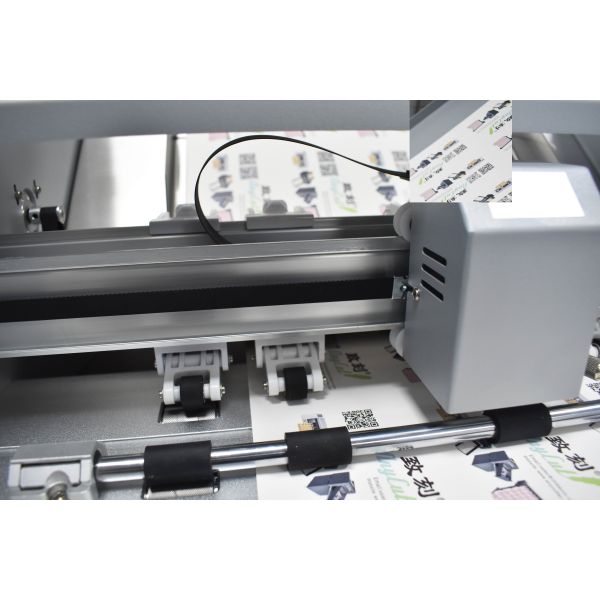

✅ Double Row Pressure Wheel Feeding

The double row pressure wheel structure ensures more stable material feeding, effectively preventing material shift and wrinkling, and guarantees continuous cutting of long materials without deviation.

✅ Scan Code to Retrieve Files

Retrieve cloud/local cutting files quickly by scanning QR codes with a mobile phone. The operation is extremely simple, allowing beginners to get started quickly and reducing training costs.

✅ Unlimited Cutting Length

Breaks through the length limit of traditional cutters, enabling continuous cutting of extra-long car films, banners, and roll labels to meet large-size production needs.

✅ 4.3-inch LCD Touch Screen

Visual operation interface allows direct file preview and parameter adjustment on the machine, and can complete cutting tasks independently even offline.

✅ High Precision Repeat Positioning

Repeat positioning accuracy of ±0.01mm ensures consistent dimensions of batch-produced cards, business cards, and labels for stable quality.

✅ Wide Material Compatibility

Perfectly compatible with common materials in printing shops, such as self-adhesive labels, PVC films, car dashboard films, heat transfer papers, kraft papers, and coated papers.

✅ Full Windows System Compatibility

Supports mainstream design software like CDR/AI/PS/Contour, seamlessly integrating with existing design workflows without additional tool changes.


MODEL ZKST350
Max. media width 335mm
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor Stepper motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 810mm*W 510mm*H 540mm
Machine size L 700mm*W 425mm*H 310mm
Gross/Net weight 38kgs/30kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1000mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
