ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKST350
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$663~827/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L790mm*W510mm*H450mm
Positioning mode :
Qr code/Dot/Right angle
max cutting width :
330mm
connect or interface :
USB cable/Udisk/web cable/WIFI
max force :
2000g
auto contour cut :
Camera(automatically contour cut)
Support software :
CDR/AI/PS/Contour software/Signmaster
Control panel :
4.3 inch touch screen
Blade type :
Rowland blade
max material thickness :
450gsm
max cutting speed :
1000mm/s
Description

ZKST350 Compact Single Head Double Row Pressure Wheel Stepper Motor Label Cutting Machine

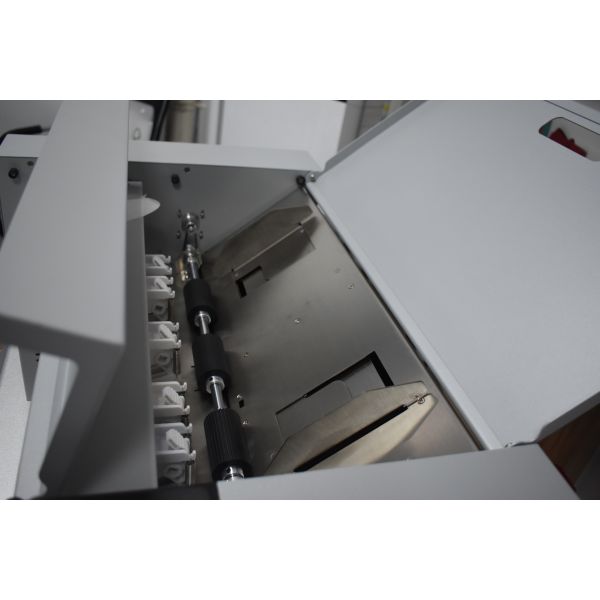

The ZKST350 is a high-efficiency cutting plotter engineered with a double row pressure wheel system, ensuring stable, uniform feeding of materials for consistent, high-precision cuts. It is designed for processing self-adhesive labels, PVC stickers, and decals, delivering crisp, clean results for both small-batch and production-scale tasks.

Boasting a maximum cutting speed of 1000mm/s, it handles materials up to 450gsm in thickness with ease. The 2000g maximum pressure ensures reliable performance across a range of substrates, including self-adhesive vinyl, coated paper, and PVC. It is compatible with all Windows systems and industry-standard software like CDR, AI, PS, and Contour software, making it a reliable solution for sign makers, label producers, and packaging businesses.



MODEL ZKST350
Max. media width 335mm
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor Stepper motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 790mm*W 510mm*H 450mm
Machine size L 700mm*W 425mm*H 310mm
Gross/Net weight 34kgs/29kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1200mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)

1G
Support system All versions of windows
