Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
Specifications
Brand Name :
Anycut
Model Number :
ZKST350
MOQ :
1 piece
Price :
$663-828/piece
Certification :
CE/FCC/RoHS
Place of Origin :
Anhui
Payment Terms :
T/T,Western Union
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L 790mm*W 510mm*H 450mm
Auto contour cut :
Camera (automatically contour cutting)
Control panel :
4.3inch touch screen
Positoning mode :
Qr code/Dot/Right angle
Interface :
Serial, USB, Bluetooth
Paper Width :
330mm
Print Speed :
1000mm/s
Supported Os :
All windows
Connectivity :
Udisk,USB,web cable,WiIFI
Description
Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film

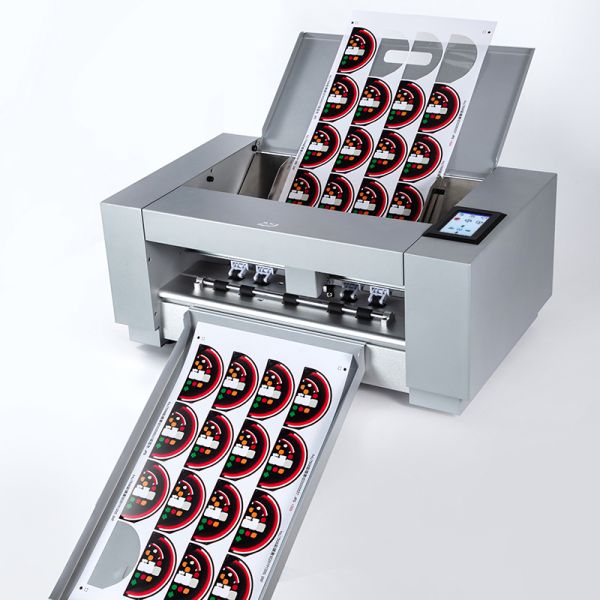

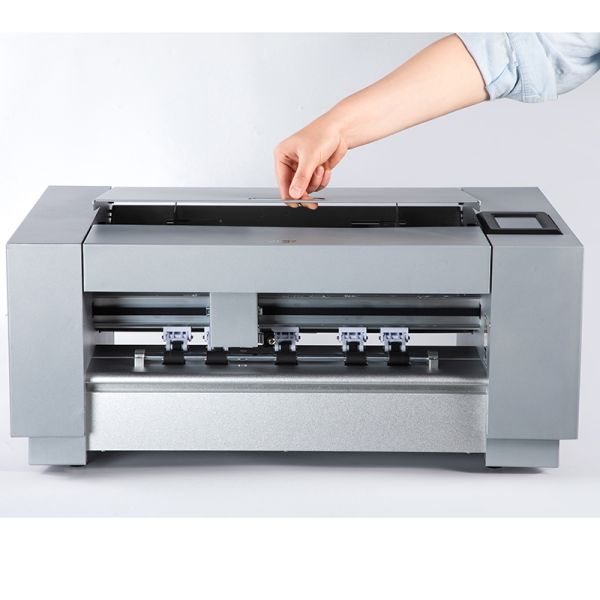

The ZKST350 double-row pressure wheel die-cutting machine is an intelligent cutting device focusing on high efficiency and precision. With a double-row pressure wheel design and camera automatic positioning technology, it is a powerful tool for processing materials such as self-adhesive labels and PVC stickers. Equipped with a CCD high-definition camera for fully automatic contour cutting, it offers three positioning methods (QR code, dot, right angle) to accurately match processing files, eliminating the hassle and errors of manual plate alignment.

In terms of operation, it supports WIFI wireless connection and file retrieval by scanning codes, and the 4.3-inch LCD touch screen makes the operation process more intuitive, even for beginners to master quickly. In performance, the 2000g super pressure can easily cut 450gsm thick materials; the ±0.01mm cutting accuracy combined with a 1000mm/s cutting speed balances fineness and processing efficiency, and the 0.082mm repeat accuracy ensures the consistency of multi-batch products.

With a compact body of only 700×425×310mm and a net weight of 34kg for easy movement and placement, it is compatible with all Windows systems and various design software, and can be flexibly adapted for small-batch customization in graphic shops or large-scale production in processing plants.


MODEL ZKST350
Max. media width 335mm
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor Stepper motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 810mm*W 510mm*H 540mm
Machine size L 700mm*W 425mm*H 310mm
Gross/Net weight 38kgs/30kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1000mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows



Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film

Anycut A3/A4 Sticker Label Cutting Machine Double Row Pressure Wheel Automatic Feeding Film
