ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKST350
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1
Price :
$663~827/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L810mm*W510mm*H540mm
max cutting width :
330mm
auto contour cut :
Camera(automatically contour cut)
Control panel :
4.3 inch touch screen
Blade type :
Rowland blade
max material thickness :
450gsm
max cutting speed :
1000mm/s
max force :
2000g
connect or interface :
USB cable/Udisk/web cable/WIFI
Support software :
CDR/AI/PS/Contour software/Signmaster
support system :
All versions of windows
Description

ZKST350 A3/A4 Sheet Stepper Motor CCD Camera Contour Label Cutting Machine



1. Dual-row pressure wheel design ensures stable material feeding for smooth cutting.


2. Camera auto-positioning enables precise contour cutting with high accuracy.


3. 2000g super force handles thick materials like heavy-duty stickers and cardstock easily.


4. Multi-connection modes (USB/UDisk/WiFi) offer flexible operation for different work scenarios.


5. Unlimited cutting length meets the demand for large-format material processing.



MODEL ZKST350
Max. media width 335mm
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)

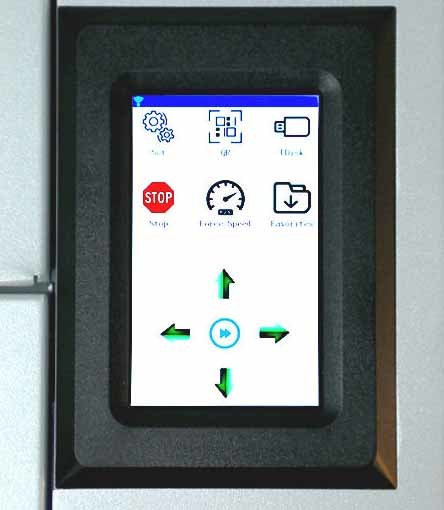

Control panel 4.3inch touch screen
Motor Stepper motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 790mm*W 510mm*H 450mm
Machine size L 700mm*W 425mm*H 310mm
Gross/Net weight 34kgs/29kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1000mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory １Ｇ
Support system All versions of windows
