Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS
MOQ :
2 sets
Price :
CN¥697464/units
Certification :
CE
Type :
distribution transformer
Material :
Copper, 100% Copper Wire
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Power
Phase :
Three
Coil Structure :
Wound Coil
Coil Number :
Multi-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Output Voltage :
11kV, 110V, 220V, 380V, 440V, 480V, 415V, 400V
Product name :
Oil Immersed Power Transformer
Standard :
IEC ANSI IEEE
Rated capacity :
75KVA-3750KVA
Cooling Method :
ONAN ONAF OFAF
Core material :
100% Cooper
Color :
Green
Warranty :
3 Years
Feature :
High Efficiency
Application :
Electronic Equipment
Description
3 Phase Electric Step up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed Transformer
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
PRODUCT PARAMENTERS
Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed
THREE PHASE PAD MOUNTED TRANSFORMER







Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
lmpedance
Efficiency
75


2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%


110
120
208
240
277
347
415
416
480
600
690
130
100
4.0-6.3
99.03
152



200
1800

99.16
225



350
3100

99.23
300



430
3700

99.27
500



600
5410

99.35
750



880
7500

99.4
1000



1000
10300

99.43
1500



1400
14500

99.48
2000



1800
18300

99.51
2500



2300
23100

99.53
3150







3750







Electric Step Up Transformer Medium Voltage Instrument Transformers 3750 Kva Oil Immersed


Product Overview

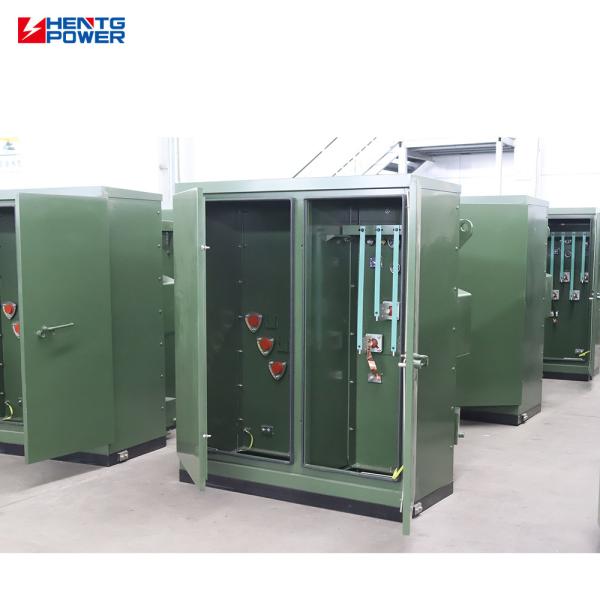

The 3750kVA Three-Phase Pad-Mounted Transformer is a premium outdoor power distribution solution designed for large-scale industrial, utility, and commercial applications. Built for reliability, safety, and efficiency, it features a robust sealed enclosure, tamper-resistant design, and optimized core technology. Ideal for high-load demands, this transformer offers long-term performance with minimal maintenance and a compact footprint suitable for space-constrained installations.

F – Features

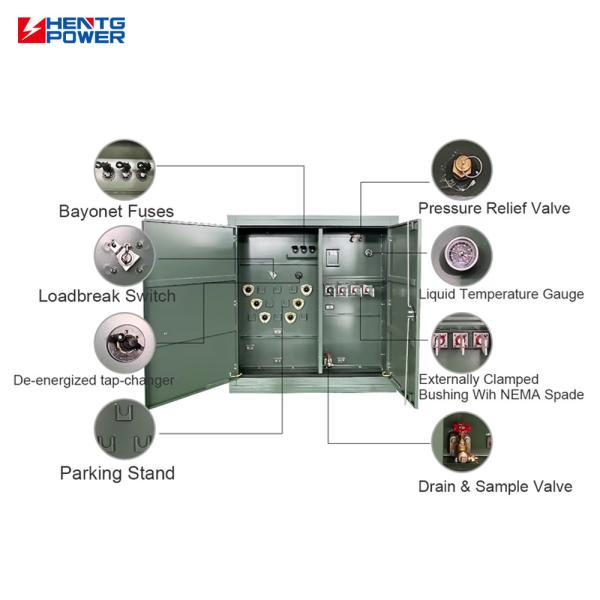

  • Three-phase, pad-mounted design for ground-level deployment

  • Oil-filled, sealed tank system for extended insulation life

  • Tamper-proof cabinet with lockable doors

  • Weather-resistant and corrosion-protected enclosure

  • Designed to meet or exceed IEEE/ANSI/IEC standards

  • Quiet operation with low noise emissions

B – Benefits

  • ✅ Outdoor-Ready: Engineered for harsh environments with protection from dust, moisture, and extreme temperatures.

  • ✅ Secure in Public Spaces: No exposed live components—ideal for parks, commercial areas, or utility substations.

  • ✅ Space-Saving Design: Eliminates need for indoor transformer rooms; install directly at the site.

  • ✅ Reduced Maintenance: Hermetically sealed system reduces oil oxidation and inspection frequency.

  • ✅ Reliable Power Delivery: Maintains stable voltage output under fluctuating loads with high efficiency.

A – Advantages

  • ⚡ Heavy-Duty Capacity: Handles high-power demand for utility grids, manufacturing hubs, and data centers.
