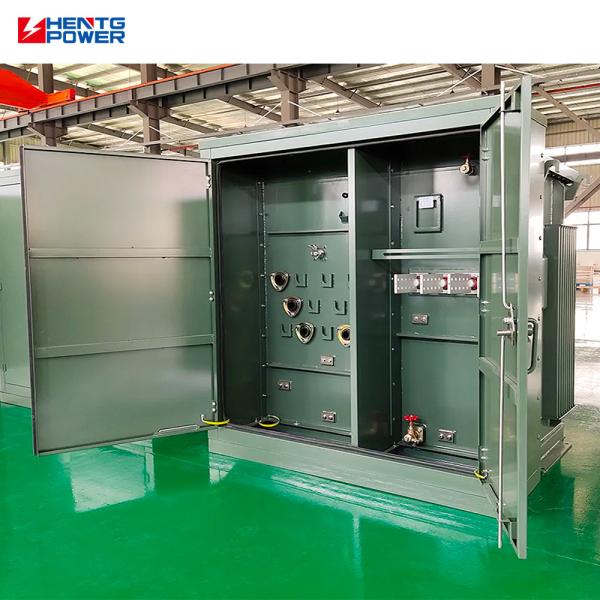

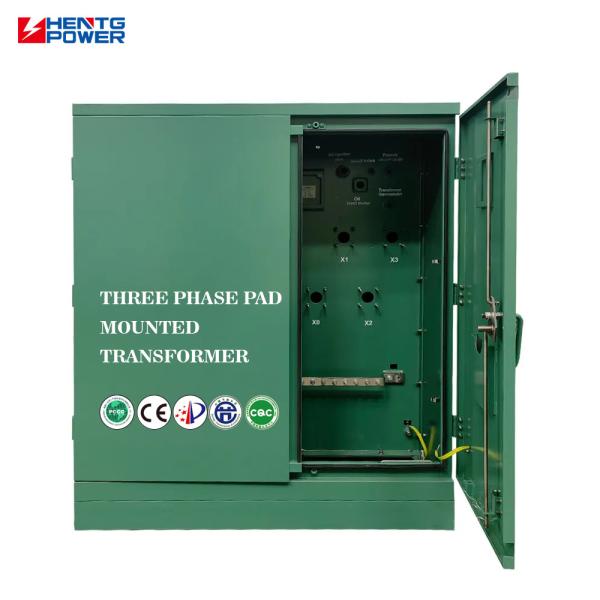

112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥8994/sets
Certification :
CE
MOQ :
2 sets
Frequency :
50Hz, 60Hz
Phase :
Three
Coil Number :
Multi Winding, Three Windings
application :
distribution system
Coil Structure :
layer coil, fully sealed construction, Disc Coil
Output Voltage :
415V, 110V, 220V, 380V, 400V , 440V
Input Voltage :
10kV
Type :
Oil-Immersed Transformer, Dual Winding Transformer
Name :
Oil Type Three Phase Pad Mounted Transformer
Primary voltage :
2.4 through 35KV (150KV BIL)
Low Voltage :
Up to 600 volts
Capacity :
300kva 500kva 750kva
Enclosure :
NEMA Type 3R
Insulation Rating :
Class E Insulation - 120°C, 248°F
Enclosure Rating :
NEMA 3R Weatherproof
Dimensions :
71-W x 73-D x 71-H
Insulation Level :
E Class
Feed Type :
Loop Feed
Warranty :
Varies depending on model
Insulation Class :
Varies depending on model
Winding Material :
Copper or Aluminum
Primary Voltage :
Varies depending on model
Cooling Type :
ONAN/KNAN
Description
112kVA Three-Phase Pad-Mounted Transformer
High-Efficiency, Reliable Outdoor Power Distribution
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
Product Specifications
Attribute Value
Frequency 50Hz, 60Hz
Phase Three
Coil Number Multi Winding, Three Windings
Application Distribution system
Coil Structure Layer coil, fully sealed construction, Disc Coil
Output Voltage 415V, 110V, 220V, 380V, 400V, 440V
Input Voltage 10kV
Type Oil-Immersed Transformer, Dual Winding Transformer
Primary Voltage 2.4 through 35KV (150KV BIL)
Low Voltage Up to 600 volts
Capacity 300kva 500kva 750kva
Enclosure NEMA Type 3R
Insulation Rating Class E Insulation - 120°C, 248°F
Enclosure Rating NEMA 3R Weatherproof
Dimensions 71-W x 73-D x 71-H
Feed Type Loop Feed
Winding Material Copper or Aluminum
Cooling Type ONAN/KNAN
Technical Parameters
Capacity (KVA) HV Tapping range LV No-load loss Load loss Impedance Efficiency
75 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 ±2X2.5% 110 120 208 240 277 347 415 416 480 600 690 130 100 4.0-6.3 99.03
152 200 1800 99.16
225 350 3100 99.23
300 430 3700 99.27
500 600 5410 99.35
750 880 7500 99.4
112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
Product Overview

The 112kVA Three-Phase Pad-Mounted Transformer is engineered for reliable, high-efficiency power distribution in outdoor applications. It is designed to provide a stable and consistent power supply for medium-sized commercial, industrial, and residential applications. With its rugged oil-immersed insulation and weatherproof design, this transformer ensures low maintenance, safe operation, and long-lasting performance in a variety of challenging outdoor environments.

Key Features
  • Rated Capacity: 112kVA - Ideal for powering medium-to-large commercial, industrial, and utility applications.
  • Three-Phase Power - Provides reliable, balanced power to three-phase systems commonly used in commercial and industrial settings.
  • Pad-Mounted Design - Compact and outdoor-ready, designed for quick, space-saving installation.
  • Oil-Immersed Cooling - Efficient cooling system to manage heat dissipation and prevent transformer overheating.
  • Low Noise Emission - Operates with ≤ 55 dB noise level, suitable for urban or residential installations.
  • Weather-Resistant Construction - Built to withstand harsh environmental conditions such as moisture, dust, and temperature fluctuations.
  • IP23 Protection Rating - Protects internal components from dust and water ingress in outdoor environments.
Product Benefits
  • Efficient Power Delivery: Provides balanced, stable three-phase power for various applications.
  • Space-Saving Outdoor Design: Allows installation in constrained spaces without taking up valuable ground area.
  • Energy Efficient: Low no-load and load losses help reduce electricity costs over the transformer's lifespan.
  • Minimal Maintenance Needs: Oil-immersed system and sealed construction reduce maintenance frequency.
  • Durable and Weatherproof: Designed for reliable operation in harsh weather conditions.
  • Quiet Operation: Suitable for urban areas, residential complexes, and noise-sensitive locations.
Key Advantages
  • Perfect for Medium-Scale Applications: Ideal for small industrial plants, retail complexes, and commercial buildings.
  • Complies with Global Standards: Conforms to IEC 60076 and GB/T 10228 for safety and reliability.
  • Customizable Options: Offers flexibility with different voltage configurations and protection ratings.
  • Long Lifespan and Reliability: Oil-immersed design ensures extended operational life.
  • Eco-Friendly Solution: Built with recyclable materials and designed to minimize energy losses.
Business Partner Information
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment. We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We provide guarantee service of over 2 years.
Why choose us?
We have professional and independent drawing team and technical team. We can confirm all contents on drawings within 7 days. Our technical team includes 30+ senior engineers offering 24 hours online service with response within 30 minutes.
What services can we provide?
We accept OEM, business payment terms are negotiable.
