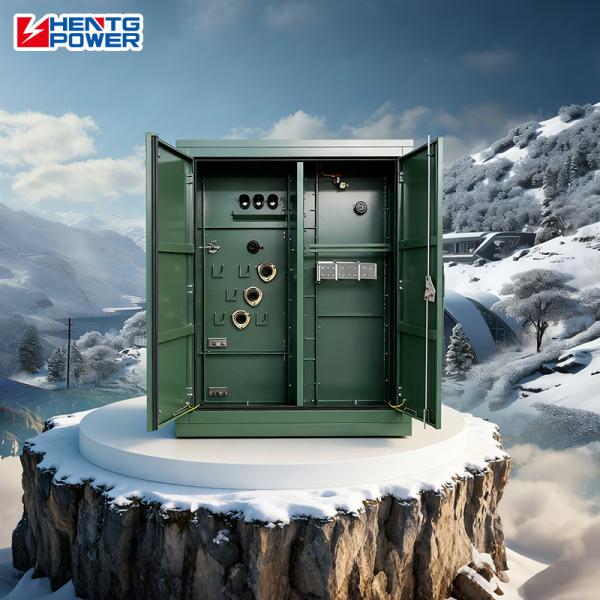

Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Specifications
Brand Name :
HENTG Power
Certification :
CE
Manufactory :
HENTG Power
Cooling :
ONAN/ONAF or Customized
Rated Power :
1000kVA
Product Type :
Oil immersed Type
Voltage Rating :
Up to 500 kV
Installation :
Indoor/Outdoor
Operating Temperature :
40°C
Capacity :
75KVA 3150KVA
Installation Method :
Outdoor/Indoor
Voltage :
6kv-11kv
Impedence :
4 % or Customized
Standerds :
ISO IEC GB
Type :
Oil-filled Transformer
Quality :
100% Tested
Description

1. Fully sealed and insulated design for strong safety protection.

It features anti-incorrect operation and anti-theft features, making it suitable for public locations.

The fully insulated and sealed structure is waterproof and dustproof, making it suitable for outdoor and underground installation.

The wiring compartment is physically isolated from the fuel tank, ensuring safe operation.


2. Compact size and easy installation.

It occupies a small footprint, making it suitable for urban power distribution, commercial parks, residential communities, and other areas.

Ground-mounted installation eliminates the need for substation construction, saving on construction costs.

Pre-assembled at the factory, requiring only simple on-site wiring for operation.


3. Compliant with ANSI/IEEE standards, customizable.

Manufactured in strict accordance with ANSI C57.12 and IEEE standards, it is suitable for North American and international markets.

Customizable options include rated capacity, voltage level, and wiring method (ring network/radial).

Optional accessories include overload protection, fault indicators, and SPDs.

Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation

Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation

Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation

Capacity (KVA) HV Tapping range LV No-load loss Load loss lmpedance Efficiency
75 2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500		 ±2X2.5% 110
120
208
240
277
347
415
416
480
600
690		 130 100 4.0-6.3 99.03
152 200 1800 99.16
225 350 3100 99.23
300 430 3700 99.27
500 600 5410 99.35
750 880 7500 99.4
1000 1000 10300 99.43
1500 1400 14500 99.48
2000 1800 18300 99.51
2500 2300 23100 99.53
3150 　 　 　
3750 　 　 　
üDesigned for underground loads (shopping malls, schools, institutions, factories)
üFeatures: stable voltage, no neutral drift, low loss, compact, reliable
üStandards: CSA, ANSI C57, DOE, IEEE
