750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
Specifications
Place of Origin :
China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥24000-27300/sets
Certification :
CE
MOQ :
1
Frequency :
50Hz, 60Hz, 50/60 Hz
application :
distribution system
Output Voltage :
380V, 400V , 440V, 480V
Input Voltage :
10kV
Product name :
Three Phase Oil Immersed Transformer
Application :
Power Distribution System Power Transformer
Rated capacity :
750KVA-1000KVA
Cooling Method :
Oil Cooling
Impedance :
5.8%
Standard :
ANSI / IEEE / DOE 2016
Kva Rating :
2500KVA
Enclosure Rating :
NEMA 3R or NEMA 4X
Ul Certificate Numbers :
UL-US-2431836-0, UL-CA-2423202-0
Secondary Voltage :
120/240 V or 208Y/120 V
Temperature Rise :
65°C
Rated Power :
15 kVA to 500 kVA
Operation :
Step-Up Operation
Transformer Feed Type :
Loop Feed
Description
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
Product Attributes
Attribute Value
Frequency 50Hz, 60Hz, 50/60 Hz
Application distribution system
Output Voltage 380V, 400V, 440V, 480V
Input Voltage 10kV
Product Name Three Phase Oil Immersed Transformer
Application Power Distribution System Power Transformer
Rated Capacity 750KVA-1000KVA
Cooling Method Oil Cooling
Impedance 5.8%
Standard ANSI / IEEE / DOE 2016
KVA Rating 2500KVA
Enclosure Rating NEMA 3R or NEMA 4X
UL Certificate Numbers UL-US-2431836-0, UL-CA-2423202-0
Secondary Voltage 120/240 V or 208Y/120 V
Temperature Rise 65°C
Rated Power 15 kVA to 500 kVA
Operation Step-Up Operation
Transformer Feed Type Loop Feed
Product Description

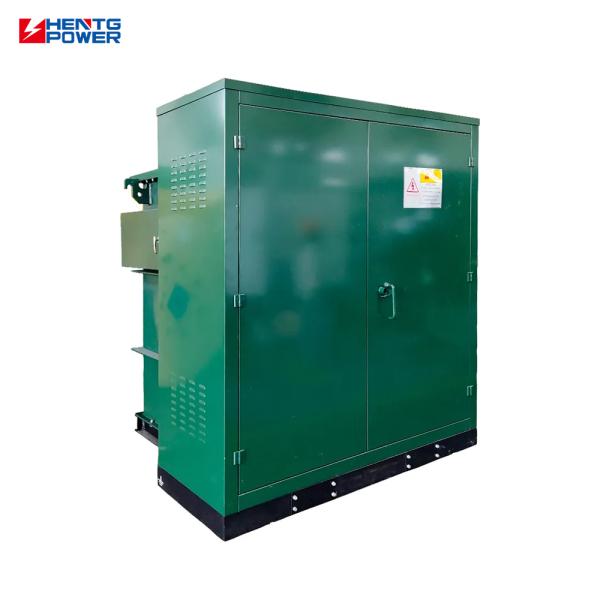

1000kVA Three-Phase Pad-Mounted Transformer | Outdoor Oil-Immersed Unit | High Reliability & Efficiency

750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
Capacity (KVA) HV Tapping Range LV No-load Loss Load Loss Impedance Efficiency
75 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 ±2X2.5% 110 120 208 240 277 347 415 416 480 600 690 130 100 4.0-6.3 99.03
152 200 1800 99.16
225 350 3100 99.23
300 430 3700 99.27
500 600 5410 99.35
750 880 7500 99.4
1000 1000 10300 99.43
1500 1400 14500 99.48
2000 1800 18300 99.51
2500 2300 23100 99.53
3150
3750
750KVA-1000KVA Three Phase Pad Mounted Transformer Oil Cooling Step Up Operation
Product Overview

The 1000kVA Three-Phase Pad-Mounted Transformer is built for high-capacity, secure, and weather-resistant outdoor power distribution. It features a sealed oil-immersed design that ensures long-term durability and low maintenance. With a tamper-proof, compact enclosure and global standard compliance, this transformer is a reliable solution for industrial, commercial, and utility-scale applications. Engineered for consistent performance, it's ideal for environments demanding high load handling with operational stability.

Features
  • Three-phase, pad-mounted configuration
  • Oil-immersed for efficient cooling
  • Fully enclosed, tamper-resistant construction
  • Outdoor-rated, weatherproof design
  • Quiet and low-vibration operation
  • Long service life with minimal maintenance
  • Compliant with ANSI, IEEE, IEC standards
Benefits
  • High Power Delivery: Supports large-scale operations with stable, balanced power distribution.
  • Outdoor Resilience: Withstands extreme temperatures and moisture, ideal for exposed or remote locations.
  • Maintenance-Friendly: Sealed design minimizes the need for routine servicing, saving time and cost.
  • Space-Saving Installation: Pad-mounted configuration allows quick setup in confined or urban spaces.
  • Enhanced Safety: Built-in tamper protection and thermal safety features ensure operational security.
  • Energy Efficient: Optimized design reduces energy losses and improves long-term cost savings.
  • Flexible Deployment: Suitable for both new installations and upgrades in commercial, industrial, or utility settings.
Applications

Typical Applications:

  • Industrial Zones: Reliable power for heavy equipment and factory operations.
  • Commercial Developments: Powers shopping malls, data centers, and large buildings.
  • Utility Substations: Part of grid expansion or backup systems.
  • Renewable Energy Integration: Converts and stabilizes output from solar and wind farms.
  • Municipal Infrastructure: Used in street lighting networks, public facilities, and transportation hubs.
