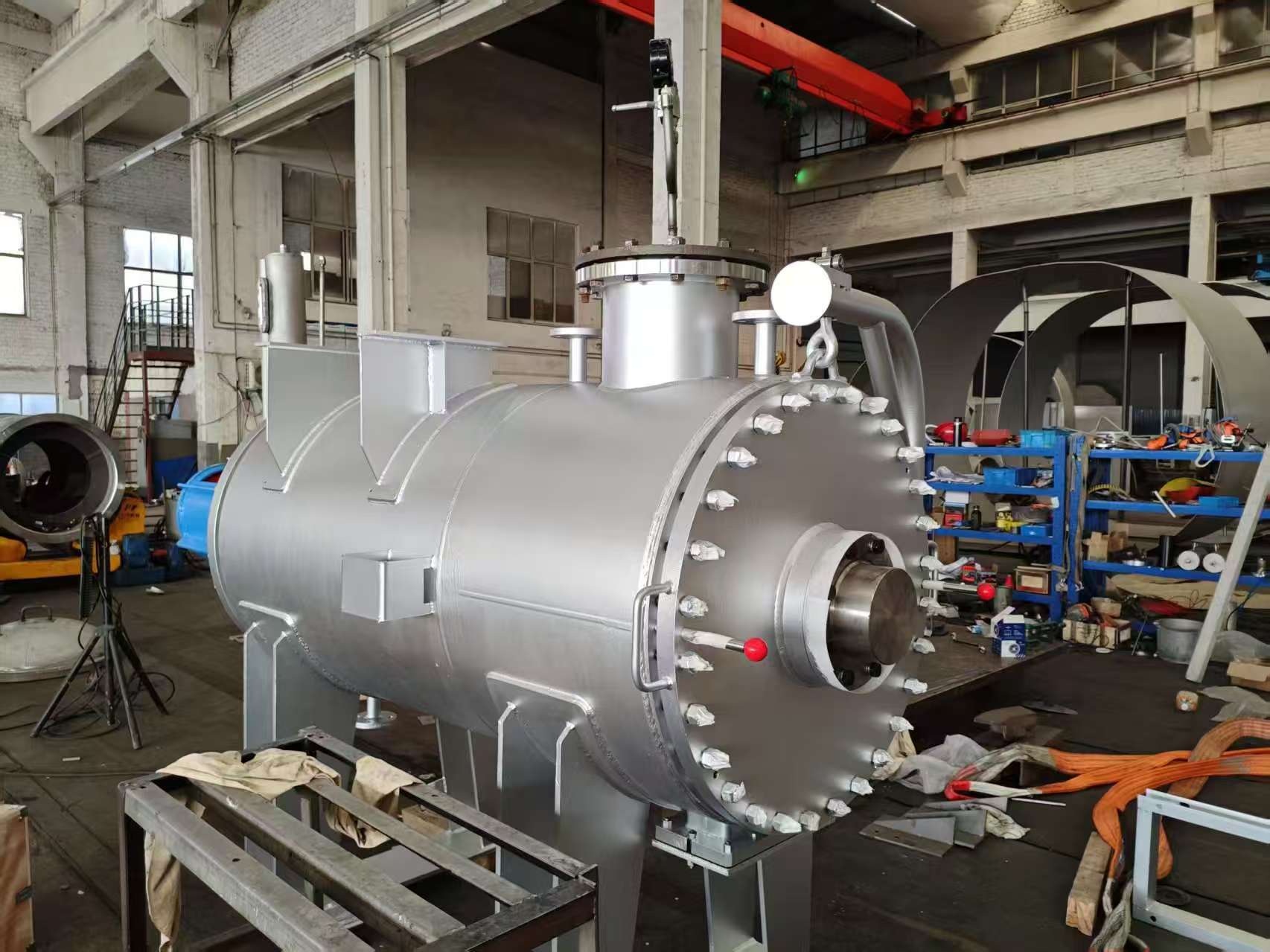

ASME Industrial Thin Film Evaporator For Chemical Concentration
ASME Industrial Thin Film Evaporator For Chemical Concentration
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Description
Product Description

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures industrial Thin Film Evaporators designed for efficient concentration and separation processes in chemical industries.

The equipment provides a reliable solution for processing materials that require:

  • High evaporation efficiency
  • Stable continuous operation
  • Precise temperature control
  • Reduced thermal exposure
  • Improved product recovery

With advanced thin film technology, materials are evenly distributed on the heating surface to achieve rapid heat transfer and efficient evaporation.

Working Principle

The feed liquid enters the evaporation chamber and is spread into a thin moving film through a rotating wiping system.

Under vacuum conditions:

  1. Liquid film contacts the heated surface evenly
  2. Heat transfer occurs rapidly
  3. Volatile components evaporate
  4. Concentrated product is collected continuously

This design improves evaporation performance compared with conventional batch evaporation equipment.

Product parameter

Parameter Typical Value/Range Remarks
Evaporation Capacity 5～5500 kg/h Evaporation efficiency depends on material properties and heat transfer temperature difference
Operating Pressure 1atm～1mbar High vacuum working conditions require matching vacuum units
Operating Temperature 50-300°C High-temperature series with maximum operating temperature up to 350°C
Heat Transfer Area 0.1-100m² Custom designs available for the full range
Wiper Speed 2-15 m/s Affects liquid film thickness and heat transfer efficiency
Motor Power 0.25-55kw Correlates positively with rotor diameter and material viscosity
Viscosity Range 1-100000cP Specialized wiper design required for high-viscosity materials
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Shell

● Design standards: GB150, ASME VIII-1, PED, EN13445, GOST34347

● Jacket or half-pipe heating structure optional

● Internal baffles 2-3mm from wall to prevent short-circuit flow

● Heating media: hot water, thermal oil, steam

● Full boring with concentricity ≤0.05mm, polished to Ra0.2~0.8μm

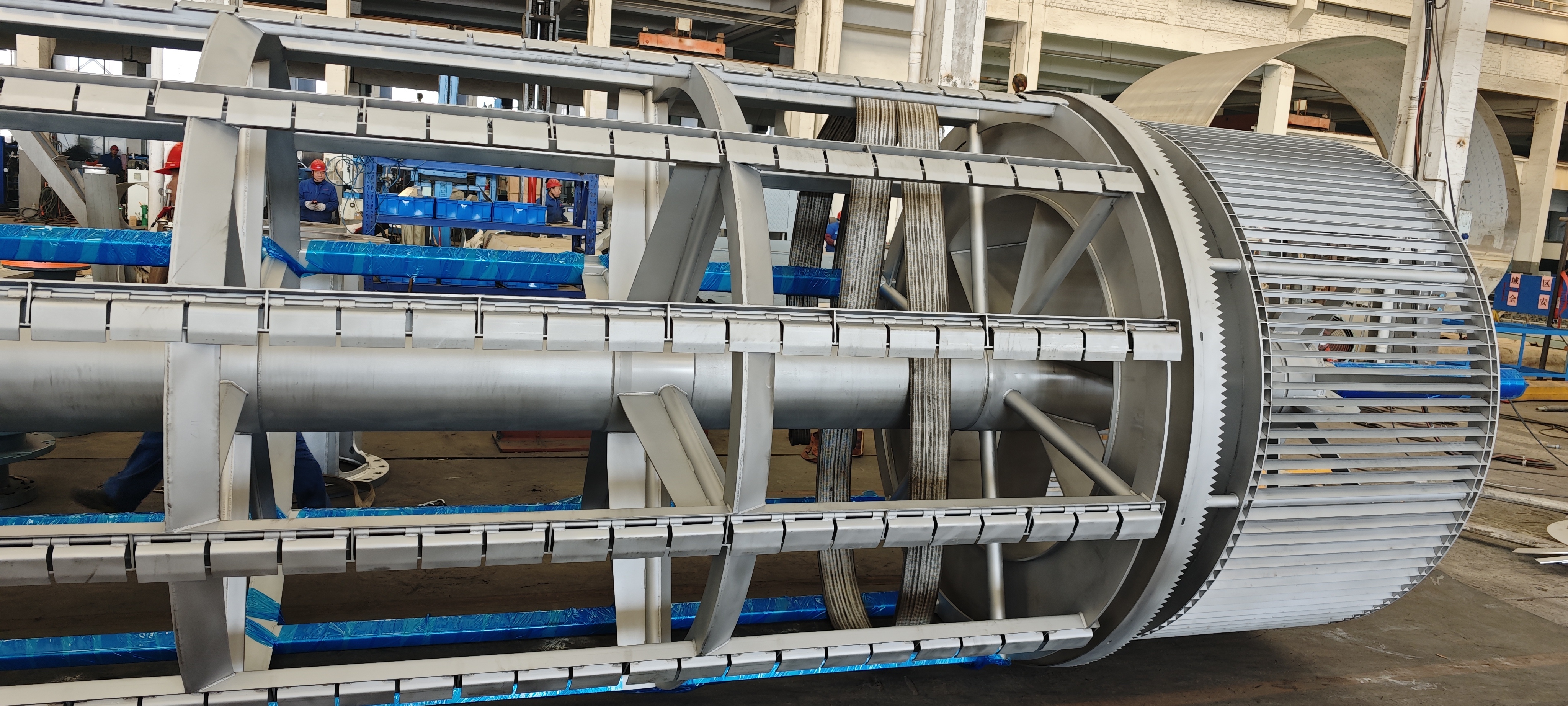

Rotor

● Core rotating assembly,installed at cylinder center

● Functions: uniform distribution, forced film forming, enhanced heat transfer

● Components: main shaft, distributor, support frame, scraper

● The concentricity of the main shaft is ≤0.05mm

● Two-stage distributor for even material spreading

● Static/dynamic balance treatment after forming

● Replaceable shaft sleeve design, can be carburized/nitrided

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!

FAQ

Q: What industries use Thin Film Evaporators?

A:
Chemical, pharmaceutical, battery materials, food, environmental and specialty industries.

Q: Can you customize evaporation capacity?

A:
Yes. Equipment can be designed according to feed properties, evaporation rate and production requirements.
