High Efficiency Vertical Thin Film Evaporator is an advanced continuous evaporation system engineered for industries seeking improved heat transfer performance, reduced energy consumption, and stable separation efficiency.

By forming a continuously renewed thin liquid film across the heated surface, this evaporator maximizes heat exchange efficiency while minimizing material residence time. The optimized vertical structure enables rapid evaporation, better thermal utilization, and consistent product quality, making it suitable for applications where production efficiency and operating cost control are critical.

Compared with conventional evaporation equipment, the high efficiency vertical thin film design provides advantages in energy utilization, process stability, and handling of heat-sensitive or high-value materials.

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures customized High Efficiency Vertical Thin Film Evaporator solutions for chemical manufacturers, new energy enterprises, pharmaceutical companies, and industrial process suppliers. Through engineering optimization, advanced fabrication technology, and strict quality control, Yiteng delivers reliable evaporation equipment designed to improve industrial production efficiency.

Product parameter

Shell

● Design standards: GB150, ASME VIII-1, PED, EN13445, GOST34347

● Jacket or half-pipe heating structure optional

● Internal baffles 2-3mm from wall to prevent short-circuit flow

● Heating media: hot water, thermal oil, steam

● Full boring with concentricity ≤0.05mm, polished to Ra0.2~0.8μm

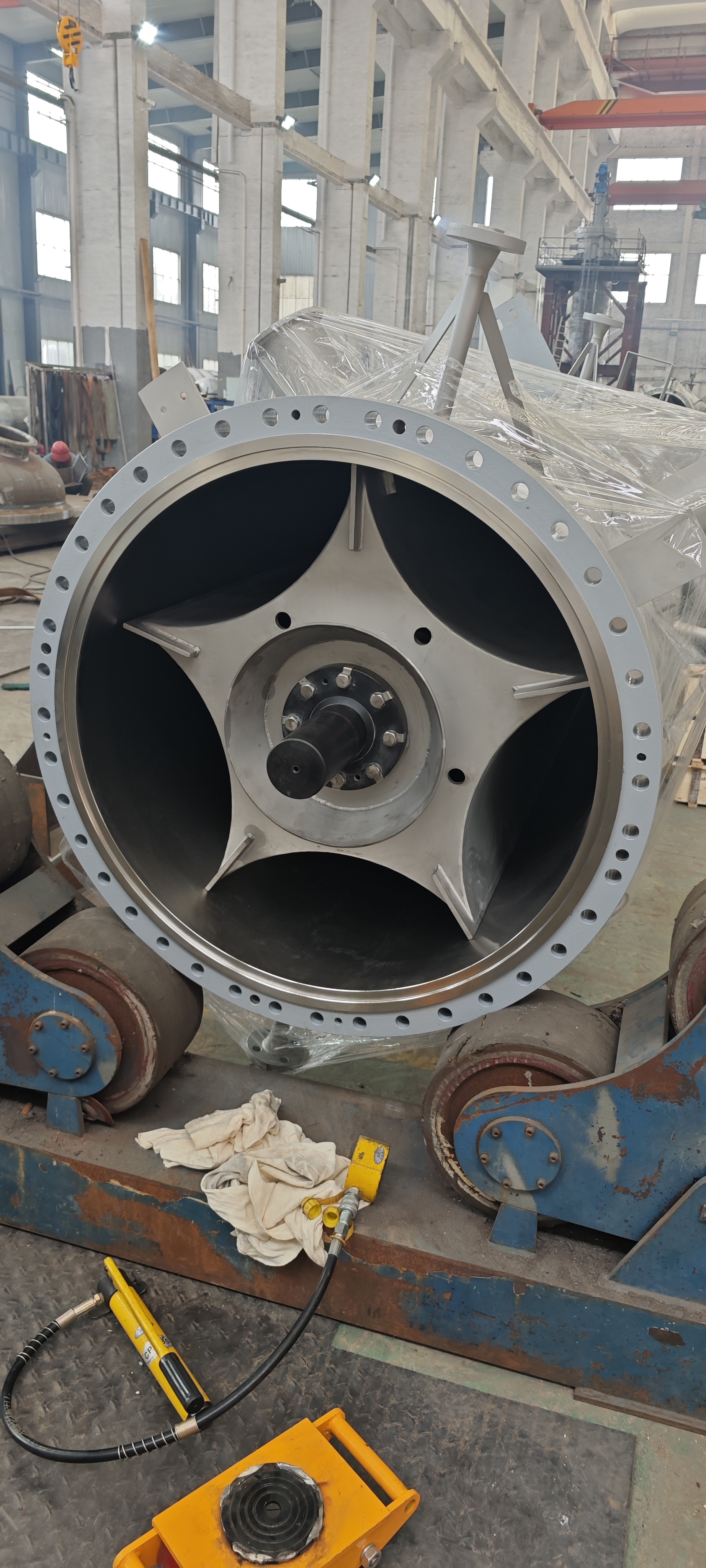

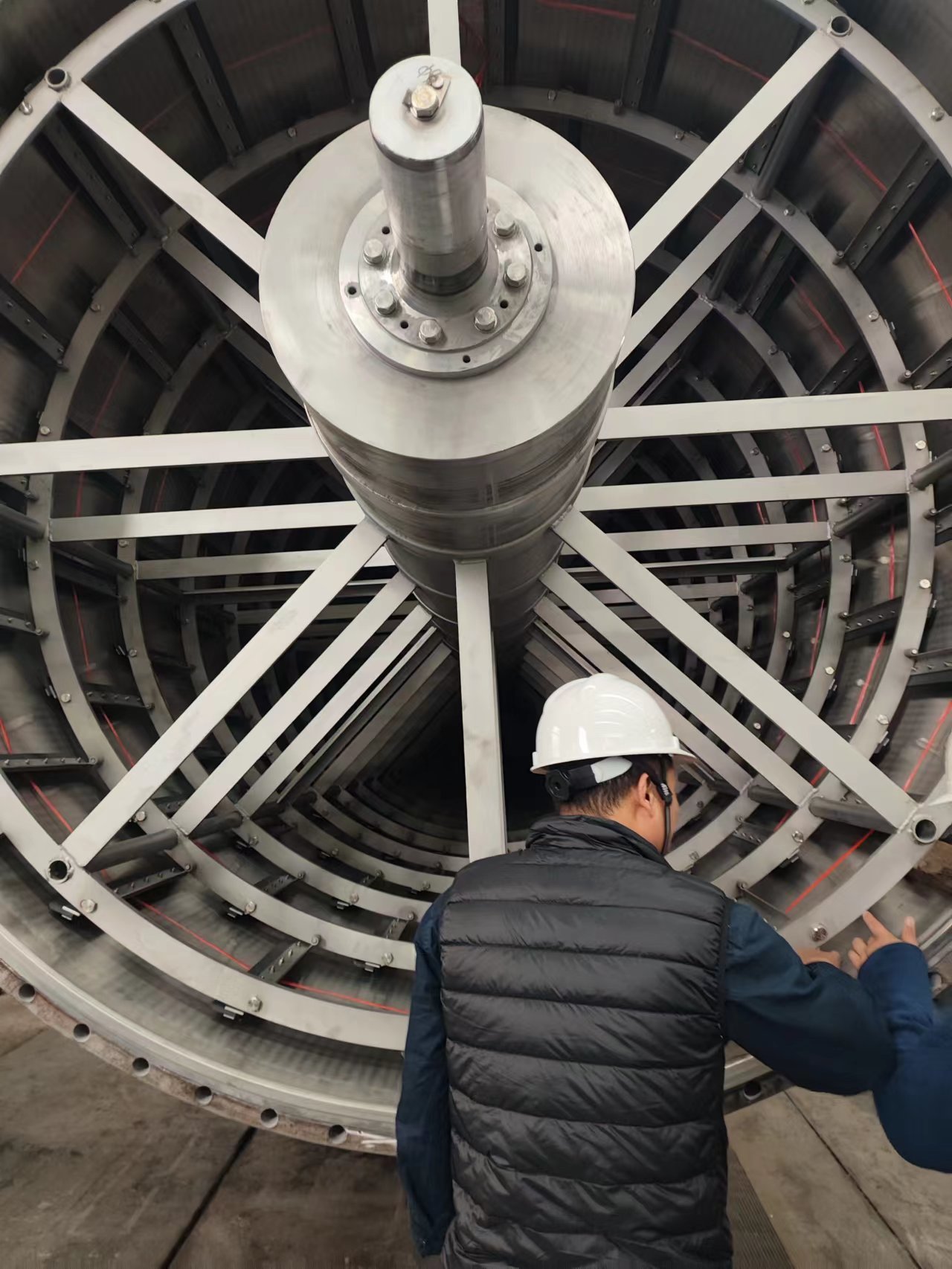

Rotor

● Core rotating assembly,installed at cylinder center

● Functions: uniform distribution, forced film forming, enhanced heat transfer

● Components: main shaft, distributor, support frame, scraper

● The concentricity of the main shaft is ≤0.05mm

● Two-stage distributor for even material spreading

● Static/dynamic balance treatment after forming

● Replaceable shaft sleeve design, can be carburized/nitrided

High Conversion RFQ Questions

1. Are you looking to improve evaporation efficiency or reduce operating costs?

Please provide:

• Current equipment performance
• Energy consumption data
• Improvement targets

Our engineers can evaluate optimization opportunities.

2. What is your required evaporation capacity and process throughput?

Please share:

• Feed flow rate
• Final concentration requirement
• Operating schedule

We can recommend suitable equipment specifications.

3. Are you replacing existing evaporation equipment or developing a new production line?

Please provide:

• Existing equipment information
• Process requirements
• Installation conditions

Yiteng can support both new projects and upgrade solutions.

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!
