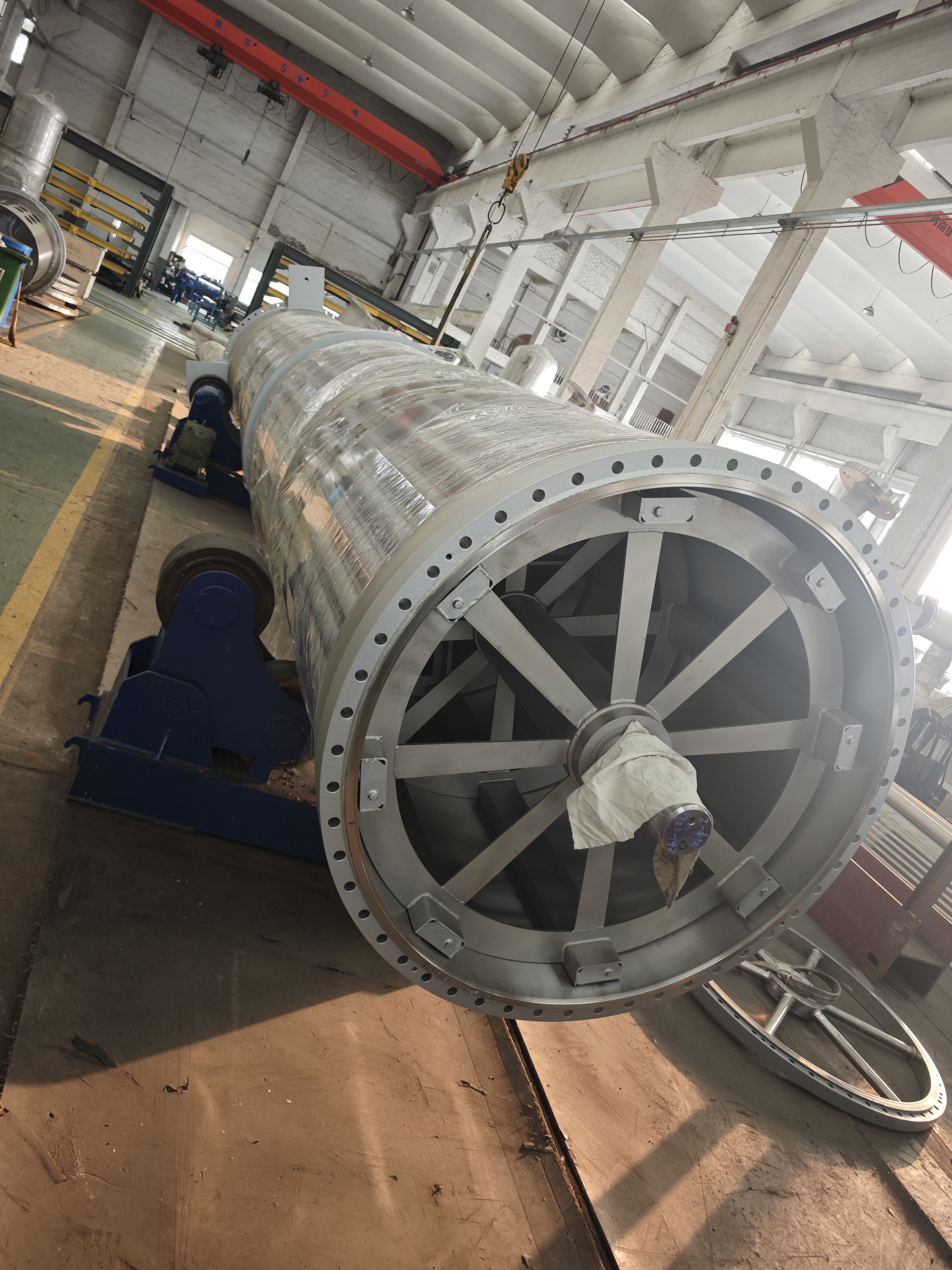

Intermediate Purification Thin Film Evaporator Short Residence Time
Intermediate Purification Thin Film Evaporator Short Residence Time
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Description
Intermediate Purification Thin Film Evaporator Short Residence Time
Product Description

Thin film evaporators feature high heat transfer efficiency, short residence time and excellent adaptability to heat-sensitive materials, efficiently meeting the separation, concentration, de-solvation and drying requirements of liquid mixtures. Yiteng’s professional team, with deep expertise in evaporation processes, provides full-process solutions for customers, from process design, thermal calculation and equipment selection to customized manufacturing and integrated skid-mounted delivery.

Product parameter

Parameter Typical Value/Range Remarks
Evaporation Capacity 5～5500 kg/h Evaporation efficiency depends on material properties and heat transfer temperature difference
Operating Pressure 1atm～1mbar High vacuum working conditions require matching vacuum units
Operating Temperature 50-300°C High-temperature series with maximum operating temperature up to 350°C
Heat Transfer Area 0.1-100m² Custom designs available for the full range
Wiper Speed 2-15 m/s Affects liquid film thickness and heat transfer efficiency
Motor Power 0.25-55kw Correlates positively with rotor diameter and material viscosity
Viscosity Range 1-100000cP Specialized wiper design required for high-viscosity materials
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Shell

● Design standards: GB150, ASME VIII-1, PED, EN13445, GOST34347

● Jacket or half-pipe heating structure optional

● Internal baffles 2-3mm from wall to prevent short-circuit flow

● Heating media: hot water, thermal oil, steam

● Full boring with concentricity ≤0.05mm, polished to Ra0.2~0.8μm

Rotor

● Core rotating assembly,installed at cylinder center

● Functions: uniform distribution, forced film forming, enhanced heat transfer

● Components: main shaft, distributor, support frame, scraper

● The concentricity of the main shaft is ≤0.05mm

● Two-stage distributor for even material spreading

● Static/dynamic balance treatment after forming

● Replaceable shaft sleeve design, can be carburized/nitrided

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!
