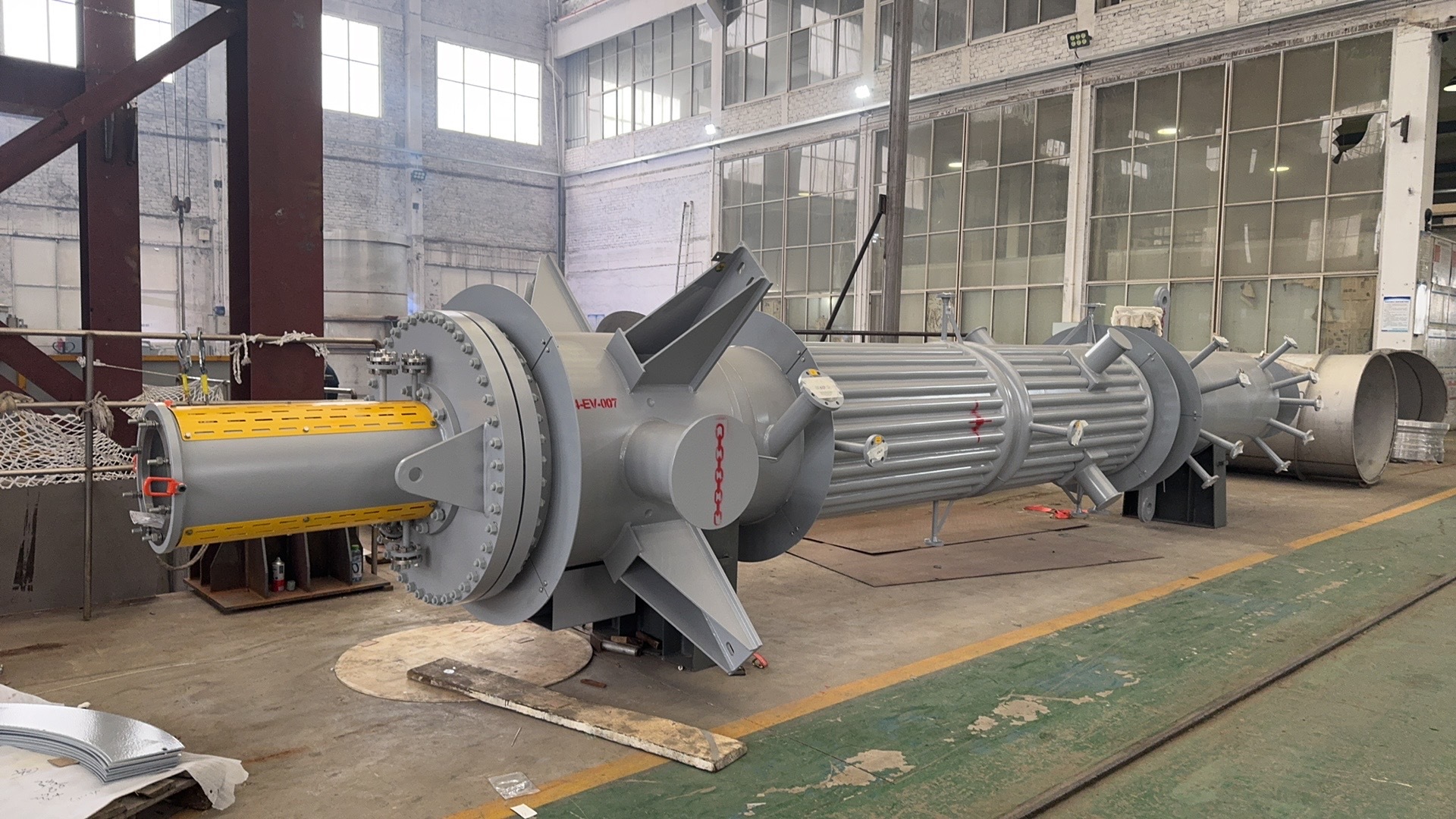

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures customized Wiped Film Evaporators designed for efficient processing of high viscosity, heat-sensitive and difficult-to-handle materials.

Unlike conventional evaporation equipment, the wiped film technology uses a mechanical wiping rotor to continuously renew the liquid film on the heating surface.

This unique design provides:

✓ Excellent heat transfer efficiency
✓ Short material residence time
✓ Reduced thermal degradation
✓ Improved evaporation performance
✓ Stable continuous production

Wiped Film Evaporator is widely used where product quality and process efficiency are critical.

Working Principle

The feed material enters the evaporation chamber and is distributed evenly by the rotating wiper system.

The wiper creates a thin turbulent film on the heated surface.

During operation:

1. Material spreads evenly across the heating wall
2. Heat transfers rapidly through the thin film
3. Volatile components evaporate under vacuum
4. Concentrated product exits continuously

The constant renewal of the liquid film prevents overheating and material accumulation.

Product parameter

Shell

● Design standards: GB150, ASME VIII-1, PED, EN13445, GOST34347

● Jacket or half-pipe heating structure optional

● Internal baffles 2-3mm from wall to prevent short-circuit flow

● Heating media: hot water, thermal oil, steam

● Full boring with concentricity ≤0.05mm, polished to Ra0.2~0.8μm

Rotor

● Core rotating assembly,installed at cylinder center

● Functions: uniform distribution, forced film forming, enhanced heat transfer

● Components: main shaft, distributor, support frame, scraper

● The concentricity of the main shaft is ≤0.05mm

● Two-stage distributor for even material spreading

● Static/dynamic balance treatment after forming

● Replaceable shaft sleeve design, can be carburized/nitrided

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!

FAQ

Q1: What materials are suitable for Wiped Film Evaporator?

A:
It is suitable for high viscosity liquids, heat-sensitive materials, organic compounds, chemical intermediates and solvent-containing products.

Q2: What is the advantage compared with traditional evaporators?

A:
The wiping system creates a continuously renewed thin film, improving heat transfer and reducing thermal damage.

Q3: Can Yiteng customize equipment according to customer process?

A:
Yes. We customize design based on material properties, evaporation capacity, temperature, vacuum level and installation requirements.
