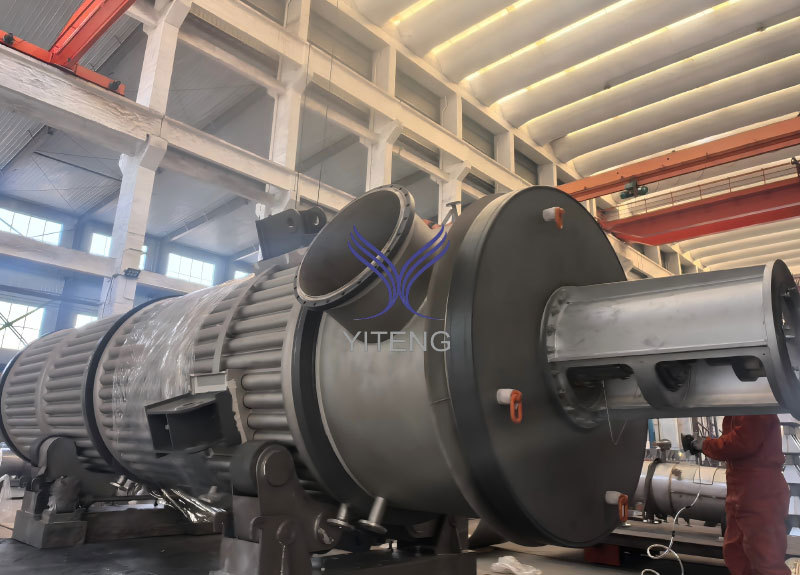

Battery Material Thin Wipe Film Evaporator Stainless Steel
Battery Material Thin Wipe Film Evaporator Stainless Steel
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Description
Product Description

Wuxi Yiteng Pressure Vessel Co., Ltd. provides customized Battery Material Thin Film Evaporators designed for the rapidly growing new energy industry.

The equipment is developed for efficient processing of battery-related materials, especially applications requiring:

  • NMP solvent recovery
  • Organic solvent recycling
  • Material concentration
  • Waste liquid reduction
  • Resource recovery

With advanced thin film evaporation technology, materials are processed under controlled temperature and vacuum conditions to achieve high recovery efficiency while reducing energy consumption.

Product parameter
Parameter Typical Value/Range Remarks
Evaporation Capacity 5～5500 kg/h Evaporation efficiency depends on material properties and heat transfer temperature difference
Operating Pressure 1atm～1mbar High vacuum working conditions require matching vacuum units
Operating Temperature 50-300°C High-temperature series with maximum operating temperature up to 350°C
Heat Transfer Area 0.1-100m² Custom designs available for the full range
Wiper Speed 2-15 m/s Affects liquid film thickness and heat transfer efficiency
Motor Power 0.25-55kw Correlates positively with rotor diameter and material viscosity
Viscosity Range 1-100000cP Specialized wiper design required for high-viscosity materials
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Working Principle

The battery-related liquid enters the evaporator chamber and forms a thin film on the heated surface.

Under vacuum conditions:

  1. Liquid material is evenly distributed
  2. Solvent evaporates at lower temperature
  3. Vapor enters condensation system
  4. Recovered solvent is collected
  5. Concentrated materials are discharged continuously

The process minimizes thermal damage and improves solvent recovery performance.

Why Choose Yiteng Vacuum Thin Film Evaporator?

✔ Experienced process equipment manufacturer

✔ Customized solutions for lithium battery industry

✔ Efficient solvent recovery technology

✔ Stainless steel precision fabrication

✔ Support for international projects

✔ Factory direct supply

FAQ

Q1: Can this equipment recover NMP solvent?

A:
Yes. The system is suitable for NMP solvent recovery and other organic solvent recycling applications.

Q2: Is it suitable for lithium battery factories?

A:
Yes. It is designed for battery material processing, solvent recovery and chemical recycling applications.

Q3: Can the equipment be integrated into an automated production line?

A:
Yes. PLC control and customized automation systems are available.
