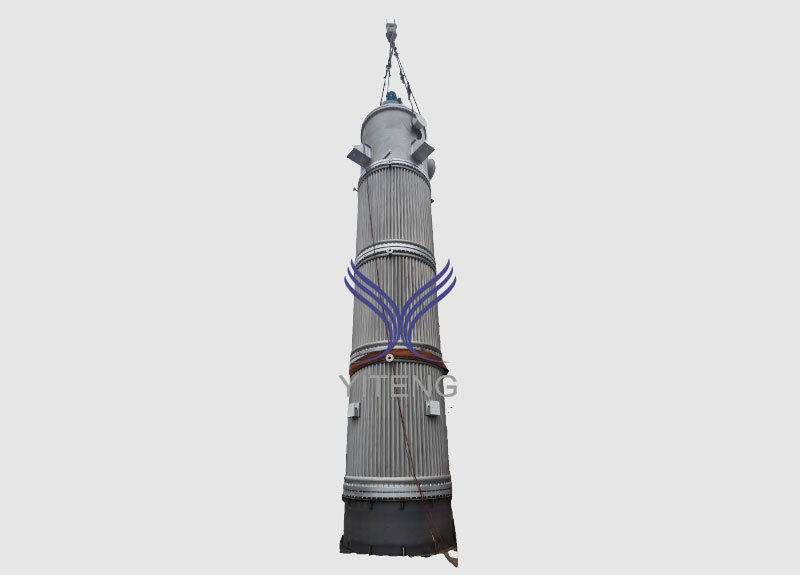

Industrial Thin Film Distillation Equipment For Separation Process
Industrial Thin Film Distillation Equipment For Separation Process
Specifications
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Supply Ability :
6000sets/Year
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Description
Product Description

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures customized Industrial Thin Film Distillation Equipment for advanced separation, purification and recovery processes.

The equipment combines thin film evaporation technology with vacuum distillation principles to achieve efficient separation of components with different boiling characteristics.

It is designed for industries requiring:

✓ High separation efficiency
✓ Continuous processing
✓ Low thermal exposure
✓ High product recovery
✓ Stable industrial operation

Compared with conventional distillation columns, thin film distillation provides shorter residence time and better processing capability for difficult materials.

Product parameter
Parameter Typical Value/Range Remarks
Evaporation Capacity 5～5500 kg/h Evaporation efficiency depends on material properties and heat transfer temperature difference
Operating Pressure 1atm～1mbar High vacuum working conditions require matching vacuum units
Operating Temperature 50-300°C High-temperature series with maximum operating temperature up to 350°C
Heat Transfer Area 0.1-100m² Custom designs available for the full range
Wiper Speed 2-15 m/s Affects liquid film thickness and heat transfer efficiency
Motor Power 0.25-55kw Correlates positively with rotor diameter and material viscosity
Viscosity Range 1-100000cP Specialized wiper design required for high-viscosity materials
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Working Principle

The feed material enters the distillation chamber and forms a thin flowing film on the heated surface.

Under vacuum conditions:

  1. Material is evenly distributed
  2. Volatile components evaporate rapidly
  3. Different components are separated according to volatility
  4. Vapor phase is condensed and collected
  5. Concentrated product is continuously discharged

This process improves separation efficiency while reducing thermal stress.

Why Choose Yiteng Vacuum Thin Film Evaporator?

✔ Advanced separation technology

✔ Customized industrial solutions

✔ Strong pressure equipment manufacturing capability

✔ Suitable for chemical and pharmaceutical applications

✔ Reliable export quality

✔ Factory direct supply

FAQ

Q1: What is thin film distillation used for?

A:
It is used for separation, purification and recovery of high-value chemical materials, solvents and heat-sensitive compounds.

Q2: What is the difference between thin film distillation and traditional distillation?

A:
Thin film distillation provides shorter residence time, better heat transfer and improved performance for difficult materials.

Q3: Can the system be customized?

A:
Yes. Yiteng designs equipment according to material properties, production capacity and separation requirements.
