Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Description
Product Description

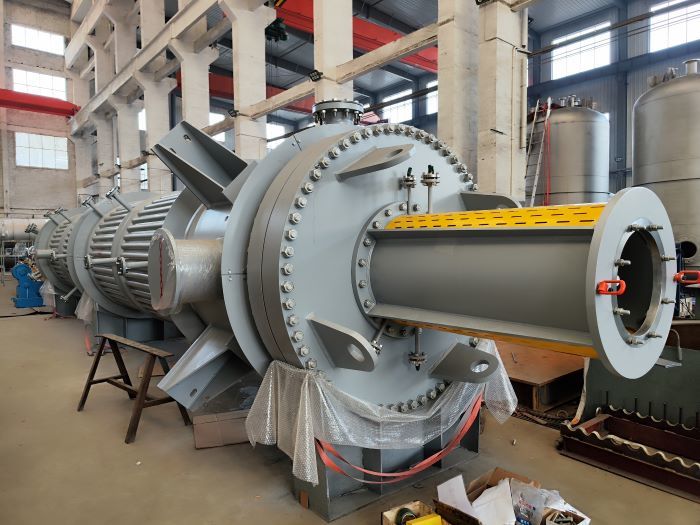

Wuxi Yiteng Pressure Vessel Co., Ltd. designs and manufactures Agitated Thin Film Evaporators for continuous concentration, evaporation and separation processes.

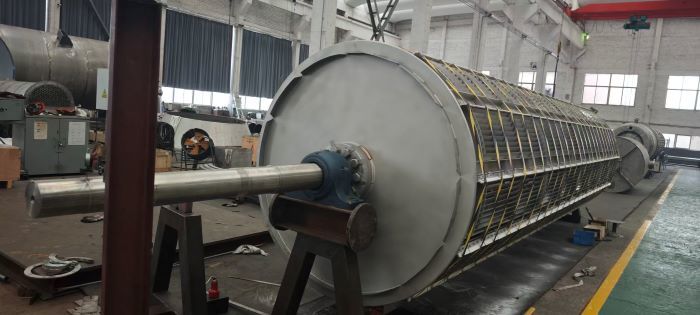

The equipment uses a specially designed rotating agitation system to improve liquid distribution and maintain a uniform thin film on the heated surface.

Compared with conventional evaporation equipment, the agitated thin film structure provides:

✓ Enhanced heat transfer performance
✓ Better material circulation
✓ Reduced fouling risk
✓ Shorter residence time
✓ Stable continuous operation

It is particularly suitable for materials with:

  • High viscosity
  • High solids content
  • Difficult heat transfer characteristics
  • Strong concentration requirements
Product parameter
Parameter Typical Value/Range Remarks
Evaporation Capacity 5～5500 kg/h Evaporation efficiency depends on material properties and heat transfer temperature difference
Operating Pressure 1atm～1mbar High vacuum working conditions require matching vacuum units
Operating Temperature 50-300°C High-temperature series with maximum operating temperature up to 350°C
Heat Transfer Area 0.1-100m² Custom designs available for the full range
Wiper Speed 2-15 m/s Affects liquid film thickness and heat transfer efficiency
Motor Power 0.25-55kw Correlates positively with rotor diameter and material viscosity
Viscosity Range 1-100000cP Specialized wiper design required for high-viscosity materials
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.
Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Why Choose Yiteng Vacuum Thin Film Evaporator?

✔ Strong process equipment manufacturing capability

✔ Customized solutions for complex materials

✔ Suitable for chemical and pharmaceutical industries

✔ High-quality stainless steel fabrication

✔ Factory direct supply

✔ Professional export support

FAQ

Q1: What is the advantage of an Agitated Thin Film Evaporator?

A:
The agitation system improves liquid circulation and heat transfer, making it suitable for high viscosity and difficult-to-process materials.

Q2: What materials can be processed?

A:
It can process chemical solutions, polymers, pharmaceutical intermediates, specialty materials and concentrated liquids.

Q3: Can the equipment be customized?

A:
Yes. Yiteng designs equipment according to material properties, capacity requirements and customer process conditions.
