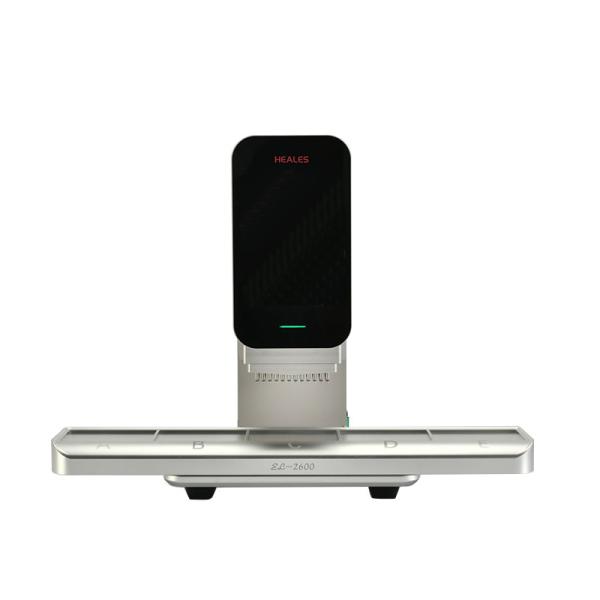

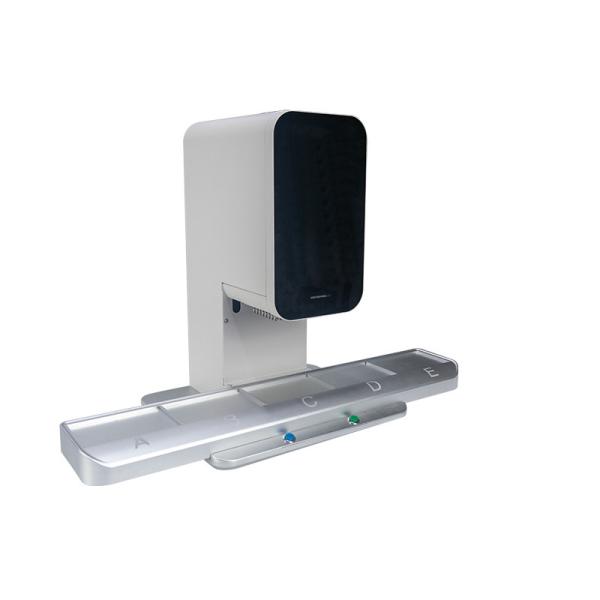

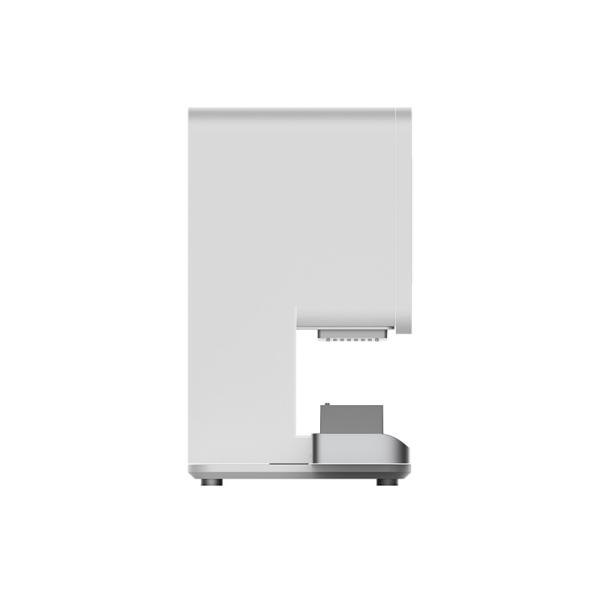

EL-2600 Monitoring &Independent Sample Adding Automatic Processing System
EL-2600 Monitoring &Independent Sample Adding Automatic Processing System
EL-2600 Monitoring &Independent Sample Adding Automatic Processing System
EL-2600 Monitoring &Independent Sample Adding Automatic Processing System
EL-2600 Monitoring &Independent Sample Adding Automatic Processing System
EL-2600 Monitoring &Independent Sample Adding Automatic Processing System
Specifications
Brand Name :
HEALES
Model Number :
EL-2600
Certification :
CE
Place of Origin :
Shenzhen, CHINA
MOQ :
1 PCS
Price :
Negoiable
Payment Terms :
T/T
Supply Ability :
20-30 pieces per week
Packaging Details :
675mmx313mmx508mm
The principle :
adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer
Volume increment :
≤0.1μl
Sample flux :
96 channels
Screen size :
8-inch high resolution color large touch screen
Operating system :
Linux
Compatibility mode :
SBS standard plate 96 orifice plate
Description

General Intro

EL-2600 is an automated, high-precision sample processing system. Compared to other traditional instruments, it can automatically perform tasks such as gradient dilution, pipetting and combining liquids. It can also achieve accurate detection of target objects with superior efficiency, considerably reducing labor costs and avoiding human error.

For sophisticated experimental procedures and precise pipetting operations, the EL-2600 can meet most of your pipetting needs.

Compatible with SBS experimental consumables and Linux systems, it has a two-mode operation with touch and keyboard. The experimental procedure can be easily set up and operated, and the software curve fitting calibration control absolutely eliminates the distinction between suction and separation, improving the repeatability of the pipetting. It is the best choice for large flux and high precision pipetting of microporous plates.

Main Parameters

The principle adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer
Sample flux 96 channels
Range 1~1000μl
Volume increment ≤0.1μl
Compatibility mode SBS standard plate 96 orifice plate
Number of boards ≥4
Screen size 8-inch high resolution color large touch screen
Operating system Linux operating system
Software upgrade USB interface one button upgrade
Reagent matching Match mainstream reagents on the market
Volume 675mm x 313mm x 508mm
Weight 30kg
Recommended service life 5 years

EL-2600 Monitoring &Independent Sample Adding Automatic Processing System EL-2600 Monitoring &Independent Sample Adding Automatic Processing System

Characteristic&Advantanges

♦Efficient ♦Flexible ♦Small ♦Precise

Multiple range

Three measuring ranges: 50 - 100μL,5 - 200μL,1 - 20μL. Meet the requirements of different experimental volumes

Graphical operation interface

Graphical operation interface, intuitive and easy to learn, with program storage, orifice memory and other functions to ensure repeatability and reproducibility

Multiple application scenarios

It integrates multiple liquid transfer functions. You can switch between different types of experiments by clicking Run

Model Liquid transfer range

EL-2600[L] 1~20 μL

EL-2600[M] 5~200 μL

EL-2600[H] 50~1000 μL
