Precise Multi Range Sample Processing System With Ultra Small Volume
Precise Multi Range Sample Processing System With Ultra Small Volume
Specifications
Brand Name :
HEALES
Model Number :
EL-2600
Certification :
CE
Place of Origin :
Shenzhen, CHINA
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20-30 Pieces per week
Packaging Details :
675mm x 313mm x 508mm
Operating system :
Linux
Compatibility mode :
SBS standard 96 orifice plate
Sample flux :
96 channels
Screen size :
8-inch high resolution color large touch screen
Range :
1~1000 μl
The principle :
adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer
Description

Brief Introduction

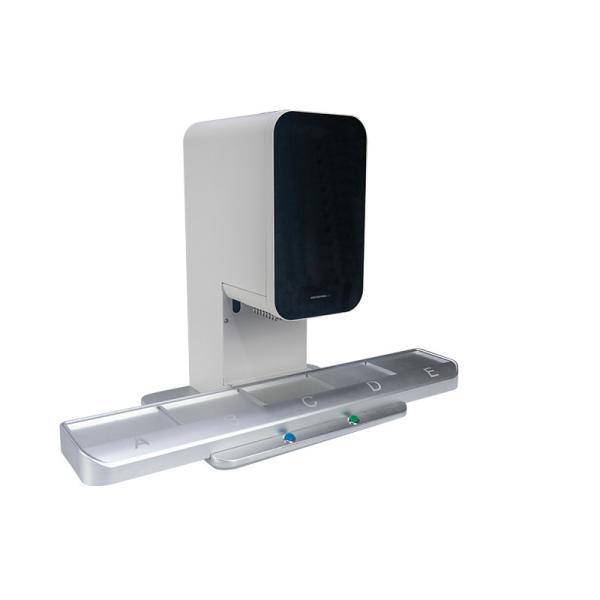

The latest EL-2600 series automatic sample handling system from HEALES Technology is a product that can meet a wide range of sampling needs. It is suitable for PCR reaction system and protein crystallization for micro-separation detection and model development. The independent sampling head can reach any well position of standard SBS plate to achieve complex model development design. The instrument has an embedded 8" color operation display screen for independent operation and real-time monitoring of operation status.

►Main Advantages

efficient flexible precise

►Main Functions

1. Multiple range

Three measuring ranges: 5 0 - 1 0 0 μ L,5 - 2 0 0 μ L,1 - 2 0 μL. Meet the requirements of different experimental volumes.

2.Multiple mode

Single liquid separation and continuous liquid separation, supporting operations such as blowing, blowing, reverse suction, suspending and samplingSupport common job loading and project template calling.

3.High accuracy

Precise positioning of suction nozzle Microporous liquid transfer speed Editable liquid transfer process.

4.Ultra small volume

Ultra compact and lightweight design, convenient for moving and placing super clean table, fume hood, safety cabinet, etc. in the laboratory.

5.Multiple application scenarios

It integrates multiple liquid transfer functions. You can switch between different types of experiments by clicking Run.

►Main parameters

The principle adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer
Sample flux 96 channels
Range 1~1000 μl
Volume increment ≤ 0.1 μl
Compatibility mode SBS standard plate 96 orifice plate
Number of boards ≥ 4
Screen size 8-inch high resolution color large touch screen
Operating system Linux operating system
Software upgrade USB interface one button upgrade
Reagent matching Match mainstream reagents on the market
volume 675mm x 313mm x 508mm
Weight 30kg
Recommended service life 5 years
