16 / 32 / 48 / 96 Channels Multi Flux Automated Sample Processing System
16 / 32 / 48 / 96 Channels Multi Flux Automated Sample Processing System
Specifications
Brand Name :
HEALES
Model Number :
EL-2600
Certification :
CE
Place of Origin :
Shenzhen, CHINA
MOQ :
1 PCS
Price :
Negoitable
Payment Terms :
T/T
Supply Ability :
20-30 Pieces per week
Packaging Details :
675mm x 313mm x 508mm Gross Weight: 30kg
principle :
gas piston liquid transfer technology
Sample flux :
96 channels
Range :
1~1000 μl
Volume increment :
≤ 0.1 μl
Compatibility mode :
SBS standard plate 96 orifice plate
Number of boards :
≥ 4
Description

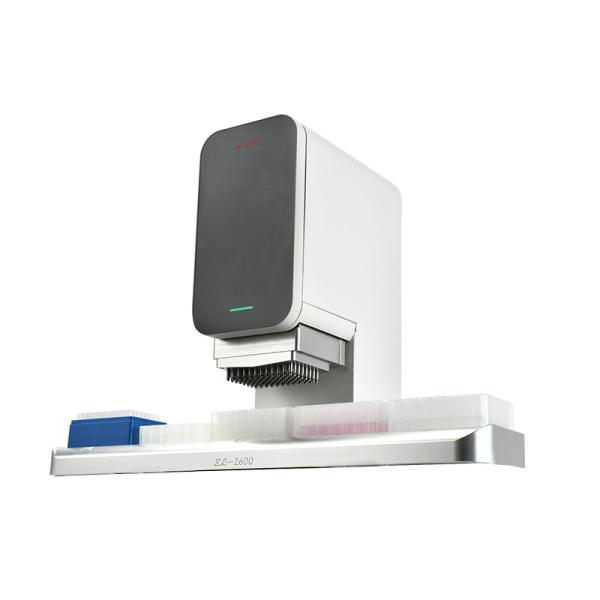

Full Automatic Sample Processing System EL-2600

System construction The EL-2600 series automatic sample processing system newly launched by Huisong Science and Technology is a product that meets the requirements of small flow and high precision Complete system required for sampling. The system has a multi plate design, which is suitable for micro separation detection and model development establishment of PCR reaction system and protein crystallization. The independent sampling head can reach any hole position of the standard SBS plate to realize complex model development and design. The instrument is embedded with an 8-inch color operation display screen for independent operation and operation, and real time monitoring of operation status.

Function Introduction

♦Multiple range

Three measuring ranges: 50 - 1000 μL,5 - 200 μL,1 - 20 μL. Meet the requirements of different experimental volumes.

♦Multiple mode

Single liquid separation and continuous liquid separation, supporting operations such as blowing, blowing, reverse suction, suspending and samplingSupport common job loading and project template calling.

♦High accuracy

Precise positioning of suction nozzle Microporous liquid transfer speed Editable liquid transfer process.

♦Unattended

Unattended 96 channels have high consistency and can effectively control the appropriate immersion.

Project parameters

Screen size

8-inch high resolution color large touch screen

Operating system

Linux operating system

Software upgrade

USB interface one button upgrade

Reagent matching

Match mainstream reagents on the market

volume

675mm x 313mm x 508mm

Range

1~1000 μl

Volume increment

≤ 0.1 μl

Recommended service life:

5 years

Advantages

efficient flexible
