Specifications
Brand Name :
HEALES
Model Number :
EL-2600
Certification :
CE
Place of Origin :
Shenzhen, CHINA
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20-30 Pieces per week
Packaging Details :
675mm x 313mm x 508mm
Weight :
30kg
volume :
675mm x 313mm x 508mm
Screen size :
8-inch high resolution color large touch screen
Compatibility mode :
SBS standard plate 96 orifice plate
Operating system :
Linux operating system
Volume increment :
≤ 0.1 μl
Description

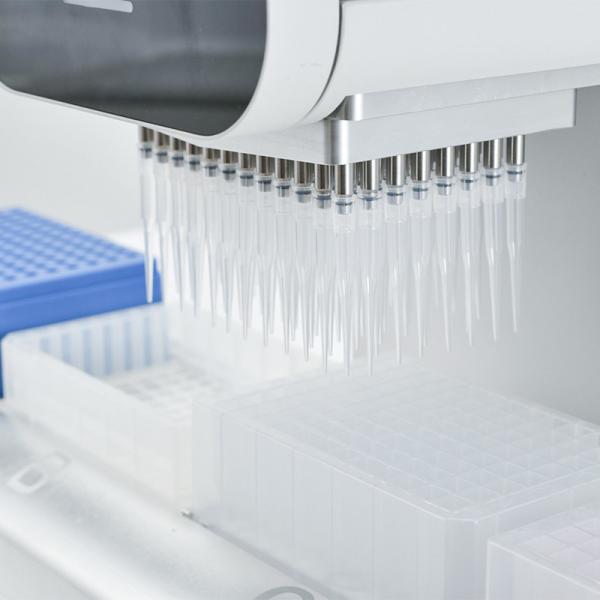

96-Channel Multi-Range High-Precision Automatic Sample Analysis And Processing Device

Product Introduction

The latest EL-2600 series fully automated sample processing system from Huisong Technology is a complete system that meets the requirements of small flow rate and high precision spiking. The system has a multi-plate position design and is suitable for micro-splitting assays, model development, PCR reaction system set-up and protein crystallization. The independent spiking head can reach any well position of a standard SBS plate, enabling complex model development and design. The instrument has an embedded 8" color operation display for independent operation and operation, and real-time monitoring of operation status.

Main Features and Functions

♦Multiple application scenarios

It integrates multiple liquid transfer functions. You can switch between different types of experiments by clicking Run.

♦Ultra small volume

Ultra compact and lightweight design, convenient for moving and placing super clean table, fume hood, safety cabinet, etc. in the laboratory.

♦Precise

Precise engineering design, μ Grade II manufacturing process, allowing 96 pistons to move synchronously, with separate channels, ensuring the repeatability of the experiment.

♦Graphical operation interface

Graphical operation interface, intuitive and easy to learn, with program storage, orifice memory and other functions to ensure repeatability and reproducibility.

♦Multiple range

Three measuring ranges: 50 - 1000 μL,5 - 200 μL,1 - 20 μL. Meet the requirements of different experimental volumes.

Parameters

The principle adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer
Sample flux 96 channels
Range 1~1000 μl
Volume increment ≤ 0.1 μl
Compatibility mode SBS standard plate 96 orifice plate
Number of boards ≥ 4
Screen size 8-inch high resolution color large touch screen
Operating system Linux operating system
Software upgrade USB interface one button upgrade
Reagent matching Match mainstream reagents on the market
volume 675mm x 313mm x 508mm
Weight 30kg
Recommended service life 5 years

Main advantages

small efficient precise flexible
