DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
DOT Pin Portable Pneumatic Dot Peen Marking Machine For Engraving
Specifications
Cooling Method :
Air Cooling
Model NO. :
JZ115P
Keywords :
DOT Pin Portable Pneumatic Marking Machine
Transport Package :
Cartons
Marking Speed :
1500-2000mm/Min
Origin :
Beijing
Power Supply :
AC220V/±10%/50Hz
Trademark :
HBS
MOQ :
1 Piece
Production Capacity :
1000/Month
Marking Depth :
0.02-1mm
HS Code :
8456301090
Price :
US $1,699-2,399 / P
Marking Area :
150X100mm
Repetition Precision :
0.05mm
Specification :
750X530X390mm
Description

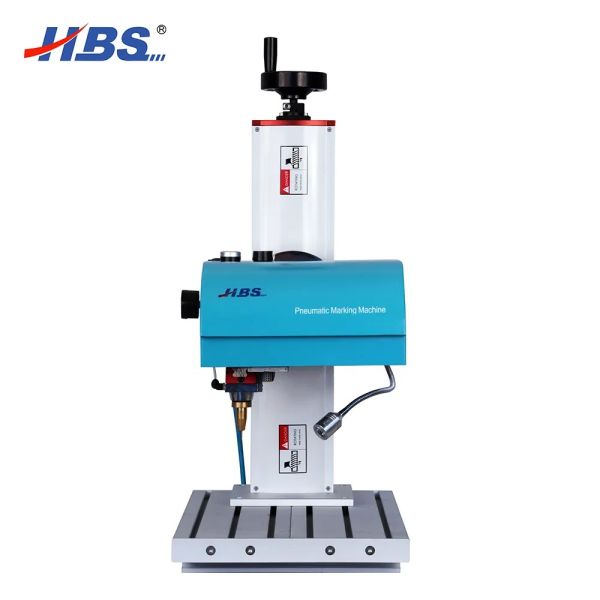

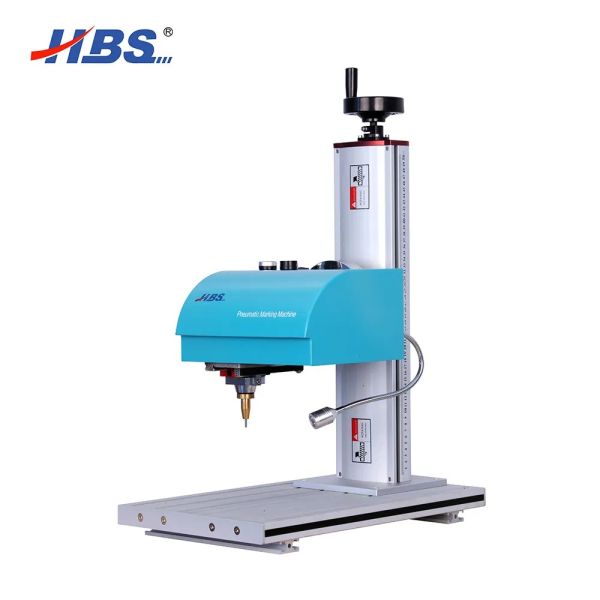

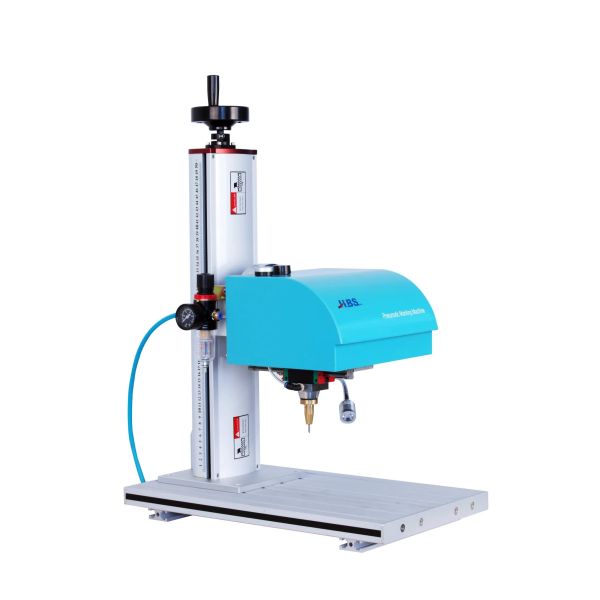

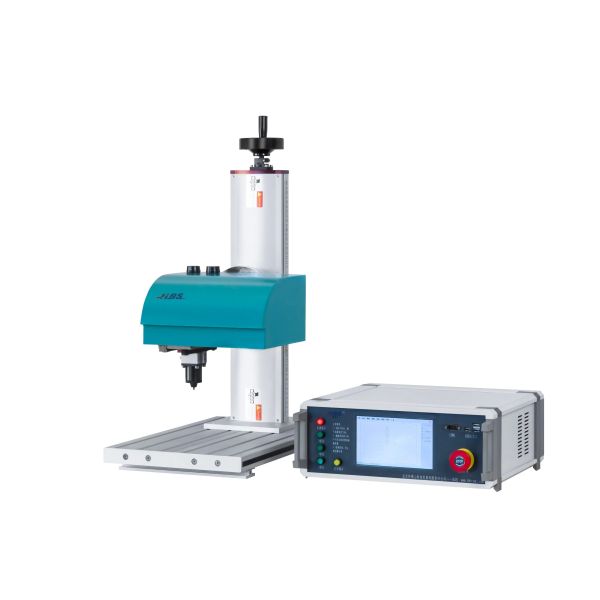

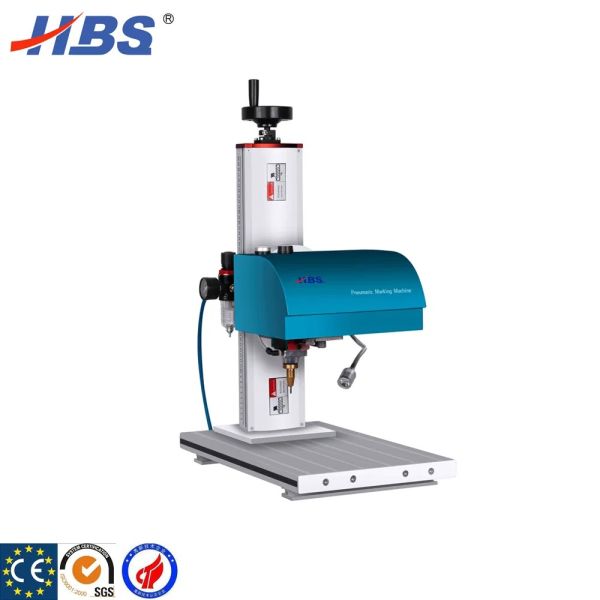

Dot Pin Portable Pneumatic Marking Machine for Engraving
1 Profile

The working principle of pneumatic marking machine: it is necessary to input the printing content into the computer. The computer controls the marking needle to move along a certain trajectory through the marking machine controller. At the same time, the marking needle impacts the workpiece with high frequency under the action of compressed air, so as to engrave the required content on the workpiece

2 Technical Parameter
Marking Content Numbers, Chinese and English characters, graphics
Marking Area 150mm x 100mm
Repetition Accuracy 0.05mm
Marking Depth 0.02 - 1mm
Marking Speed 1500 - 2000mm/Min
Power supply AC220V ±10% 50Hz
Compressed Air supply 0.3-0.6MPa
Air Consumption 3L/S
Power consumption Less Than 150W
3 Features
  • It can engraving products, such as steel, iron, copper, aluminum and plastic, and all kinds of signs.
  • It can print Chinese, English, Arabia figures, arbitrary patterns, engraving marks, and aesthetics.
  • Serial number automatically increases (minus), VIN code, random code, two-dimensional code, etc.
  • The marking needle has high impact frequency and fast printing speed, which can meet the needs of mass production.
  • The force of the needle is small, which does not affect the mechanical properties of the workpiece.
  • The depth of printing is 0.02~1mm (adjustable), which can meet all kinds of depth requirements.
  • Easy operation and convenient maintenance.
4 Application

Hardware tools, plumbing materials, mechanical parts, instrument dashboards, gear bearings, valve signs, copper and aluminium products, etc.

5 Packaging & Shipping

Dimension: 750x530x390 mm
Machine: 320x440x800 mm
Controller:390x380x150 mm
Gross Weight: 68 kg
Net Weight: 64 kg
Marking Head: 58kg
Controller: 6 kg

6 About Us

Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!
