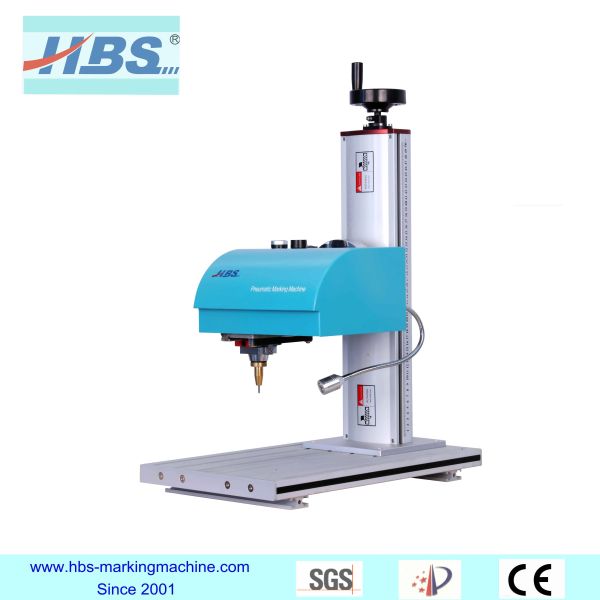

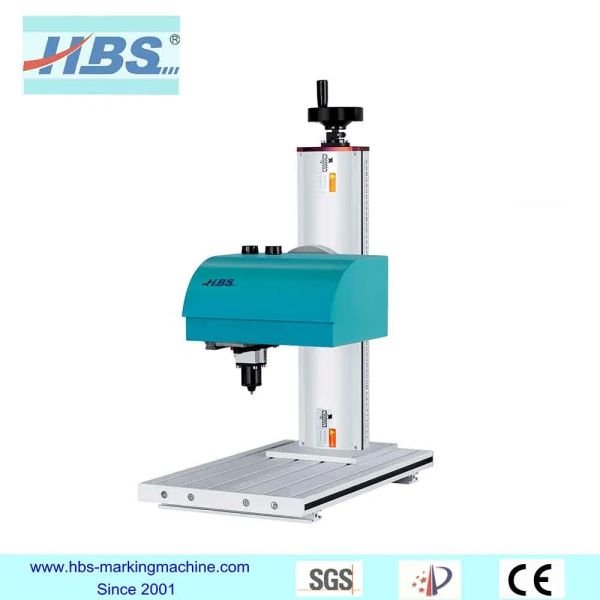

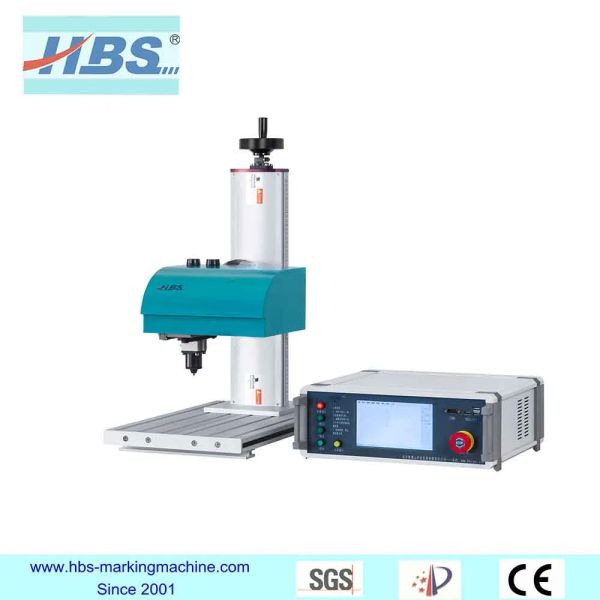

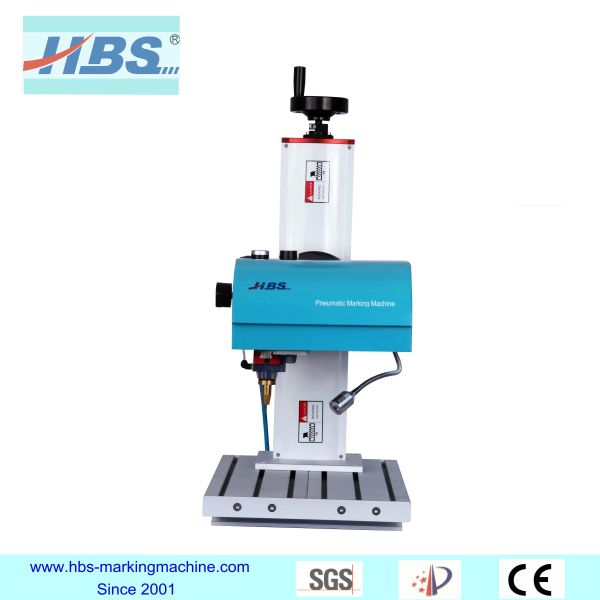

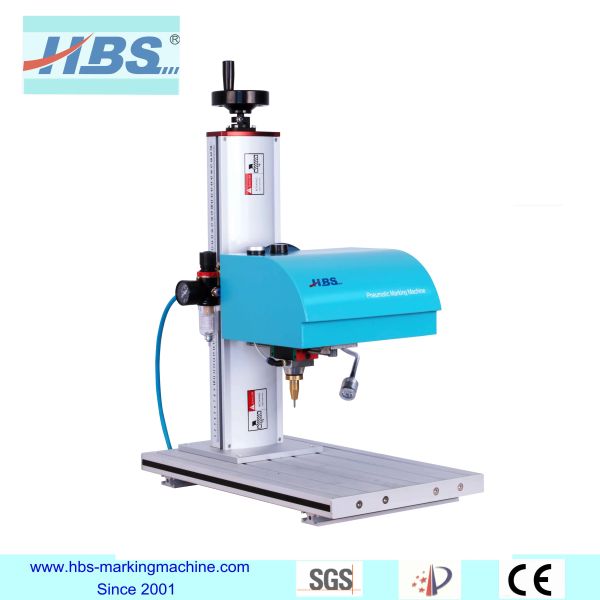

Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Label Make Pneumatic DOT Pin Marking Machine
Specifications
MOQ :
1 Piece
Origin :
China
Trademark :
HBS
Model NO. :
JZ115P
HS Code :
84798190
Production Capacity :
200PCS
Price :
US $1,699-2,199 / P
Description

JZS115P

Plane Electric Marking Machine

Label Make Pneumatic DOT Pin Marking Machine
Technical Parameter
Model JZ115P
Marking Content Numbers, Chinese/English characters, graphics
Marking Area 150mm x 100mm
Repetition Accuracy 0.05mm
Marking Depth 0.02-1mm(Adjustable with different material)
Marking Speed 1500-2000mm/Min
Power Supply AC220V ±10% 50Hz
Power consumption <=350W
JZS115P Circular Marking Φ5-100mm (Large circular clamp can be customized)
Non-standard Options
Marking Area 150mmx150mm, 200mmx200mm
Circular Marking Can be customized as user's requirement
Packing Details
Dimension(mm) 750X530X390 (marking: 320X440X800, controller:390X380X150)
Net Weight(kg) 64(machine: 58, controller: 6)
Gross Weight(kg) 68
Label Make Pneumatic DOT Pin Marking Machine
Product Features
  • No need to equip with pneumatic supply or computer, built-in programming system with industrial microcomputer and various USB ports.

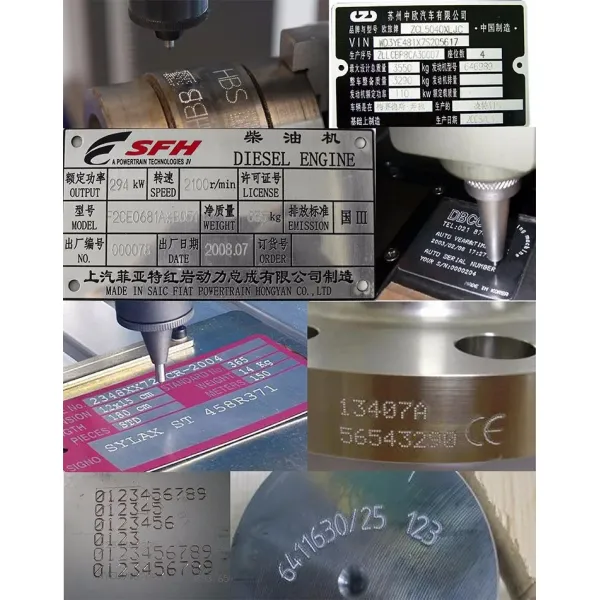

  • Able to mark on wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.
  • Able to mark in Chinese and English characters, Arabic numbers and any picture with harmonized and aesthetic effects.
  • Serial number automatically increasing or decreasing, VIN code, random code and 2D code, etc.
  • Key factor is high impact frequency of marking head and fast marking speed making. It's possible for mass production to customers' satisfaction.
  • Very small force of marking pin has no influence on the mechanical property of work pieces.
  • Marking depth from 0.02~1mm (adjustable), meeting demands for various marking depth.
  • Simple operation, easy maintenance.
