0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
Specifications
Marking Area :
30*80mm
Transport Package :
Carton
MOQ :
1 unit
Price :
US $1,650 / unit
Marking Depth :
0.1-1.5mm
Origin :
China
Marking Content :
VIN Code, Graphics, Characters, Numbers
Model NO. :
HBS-380P
Marking Speed :
2 - 5 Characters Per Second
Trademark :
HBS
Production Capacity :
300 PCS Per Month
Marking Way :
Pneumatic
HS Code :
8456110090
Certification :
CE
Style :
Portable
Application :
Machinery, Instruments & Meters, Auto Parts
Specification :
620x290x460mm
Description

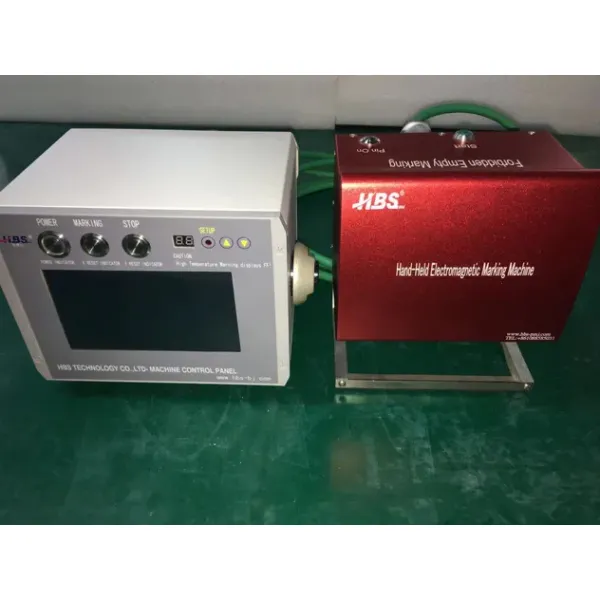

Portable Pneumatic Dot Pin Marking Machine

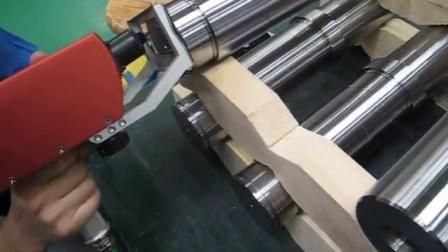

HBS-380P is specially designed for printing all kinds of large valves, frame Numbers, processing materials and other objects not suitable for moving.Pneumatic hand - held marking printer adopts two - body design.The head of the operation is held directly against the object for printing.Light weight and beautiful appearance.For printing large items manufacturers, this machine and cheap and flexible, is your first choice to improve the product grade equipment

Specification

Function

  • You can print Chinese, English characters, Arabic Numbers, special symbols and graphics. You can also automatically print running number, INTERNATIONAL standard VIN number and dot matrix.
  • Special symbols include: I,II,III,IV,/,*,-, pentagram, meter, etc
  • The graph can be edited by an external computer and stored in the labeling controller.
  • Print Chinese characters, English characters, Numbers, etc.; No need to solidified chip;

Key Configurations

  • 7-inch embedded LCD touch screen, RAM chip control, embedded marking operating system.
  • Completely offline operation (desktop computer), friendly man-machine interface, easy to learn and easy to operate.
  • Can automatically print Chinese characters, Numbers, graphics, running water number, VIN code, etc.
  • Unlimited storage of the printed contents will not be lost in case of power failure.
  • the needle is made of cemented carbide and the hardness of the printed material can reach HRC90.
  • With strong anti-interference and radiation resistance, it can adapt to the working site with poor environment
  • The frame is aircraft aluminum. It is light weight, small size, large printing area and high strength, which cannot be achieved among similar products and is comparable with similar foreign products.
  • The unique ELECTROMAGNETIC adsorption model does not require manual positioning
  • With large impact range, it is also fully competent for marking the material with uneven surface of the workpiece.
  • Printing pressure can be set.
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

Key Configurations

  • 7-inch embedded LCD touch screen, RAM chip control, embedded marking operating system.
  • Completely offline operation (desktop computer), friendly man-machine interface, easy to learn and easy to operate.
  • Can automatically print Chinese characters, Numbers, graphics, running water number, VIN code, etc.
  • Unlimited storage of the printed contents will not be lost in case of power failure.
  • the needle is made of cemented carbide and the hardness of the printed material can reach HRC90.
  • With strong anti-interference and radiation resistance, it can adapt to the working site with poor environment
  • The frame is aircraft aluminum. It is light weight, small size, large printing area and high strength, which cannot be achieved among similar products and is comparable with similar foreign products.
  • The unique ELECTROMAGNETIC adsorption model does not require manual positioning
  • With large impact range, it is also fully competent for marking the material with uneven surface of the workpiece.
  • Printing pressure can be set.
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

right elevation

0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

left elevation

0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

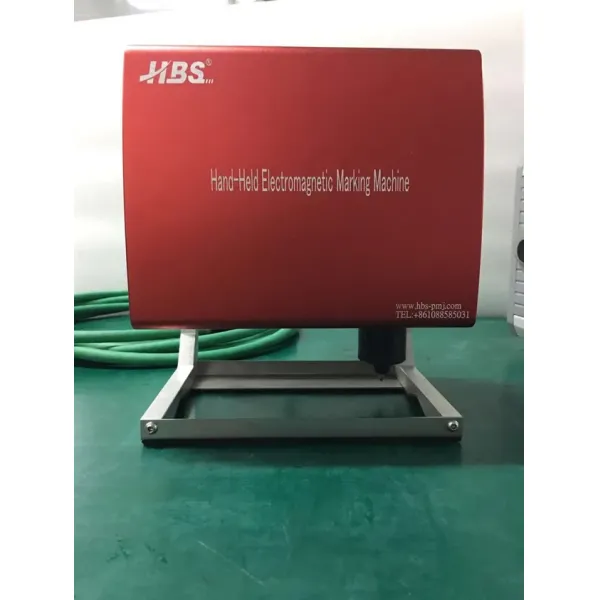

front elevation

Technical Specifications

(Custom configurations available upon request.)

Parameter Value
Model HBS-380P
Marking Area 30mm x 80mm
Power Consumption <=350W
Power supply AC220V ±10% 50Hz
Temperature 0ºC~40ºC
Marking Pattern Line, Arc, Angularity,Dot-Matrix,
Marking Speed 2 - 5 Characters Per Second
Marking Depth 0.1mm--0.3mm (Adjustable with differentmaterial)
Marking Power Air
Repeat printing accuracy 0.04mm,2×2mm characters can bemarked
Impact rate of marking pin 300/second
Marking Hardness <=HRC62
COM Port RS232, USB

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

After Sales Service

  • Standard Warranty: 12 months
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: remote operation/maintenance training.

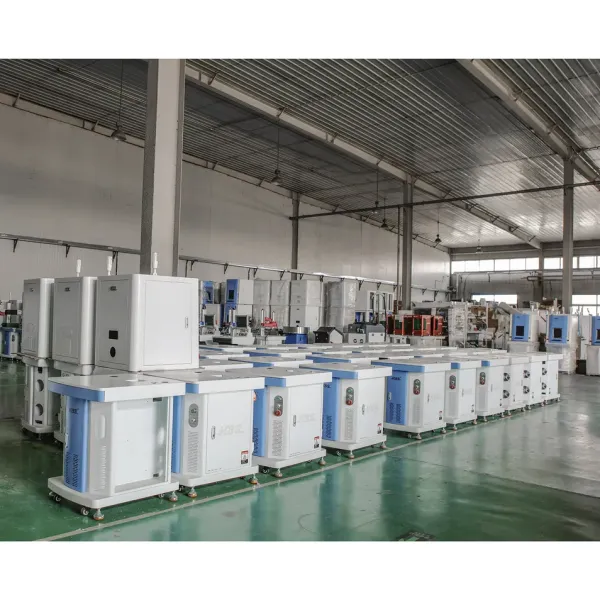

Company Profile

0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

HBS Tech Co., Ltd.

HBS Tech Co., Ltd. is a leading Chinese manufacturer of construction equipment with over 20 years of expertise. Certified with CE, and FDA, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

Why Choose Us?

  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping & customs clearance support
  • Turnkey project solutions
0.1-1.5mm Portable Pneumatic DOT Peen Engraving Equipment Portable

Other Products

  • Bench top dot pin marking machine
  • MOPA laser marking machine
  • CO2 laser marking machine
  • EDM

FAQ

Q: What's the lead time for orders?

A: Standard models ship in 7-10 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?

A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized bucket size?

A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?

A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?

A: Contact us via email/phone for a quote, then confirm with a PO.
