Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Hangheld Pneumatic DOT Peen Marking Machine For Metal
Specifications
Product Name :
Pneumatic Dotpeen Markingmachine
Marking Speed :
1500-2000mm/Min
Marking Depth :
0.02-1mm
Trademark :
HBS
Repetition Accuracy :
0.05
Origin :
China
Marking Content :
VIN Code, Graphics, Characters, Numbers
Model NO. :
HBS-380P
Price :
US $1,699-1,799 / P
Production Capacity :
100000PCS
Marking Area :
30*80mm
HS Code :
84798190
Transport Package :
Cartons
Style :
Portable
Certification :
FDA, CE, ISO
MOQ :
1 Piece
Application :
Machinery
Description
Metal DOT Pin Date Matrix Marking Engraving Machine, Mini Portable Pneumatic DOT Peen Marking Machine
Hangheld Pneumatic DOT Peen Marking Machine For Metal

Technical Parameter

Power Consumption 200w
Power Supply AC220V ±10% 50Hz
Operating Temperature 0-40ºC
Operating Humidity 0-90% NA
Marking Speed 3-5 Characters Per Second Or 50 mm Straight Line
Marking Depth 0.02-1mm (depending on different material)
Minimum Character Size 0.04mm(can print 2X2mm characters)
Compressed Air 0.3-0.6Mpa
Marking hardness HRC62
Marking Area 30mm x80mm(plane surface)
Computer and compressed air (supplied by user)

Non-standard Options

  • Marking Area: 150mmx150mm, 200mmx200mm
  • Circular Marking: Can be customized as user's requirement

Packing Details

  • Dimension(mm): 620*470*300
  • Gross Weight(kg): 13

Product Features

No need to equip with pneumatic supply or computer, built-in programming system with industrial microcomputer and various USB ports.

Able to mark on wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.

Able to mark in Chinese and English characters, Arabic numbers and any picture with harmonized and aesthetic effects.

Serial number automatically increasing or decreasing, VIN code, random code and 2D code, etc.

Key factor is high impact frequency of marking head and fast marking speed making. It's possible for mass production to customers' satisfaction.

Very small force of marking pin has no influence on the mechanical property of work pieces.

Marking depth from 0.02~1mm (adjustable), meeting demands for various marking depth.

Simple operation, easy maintenance.

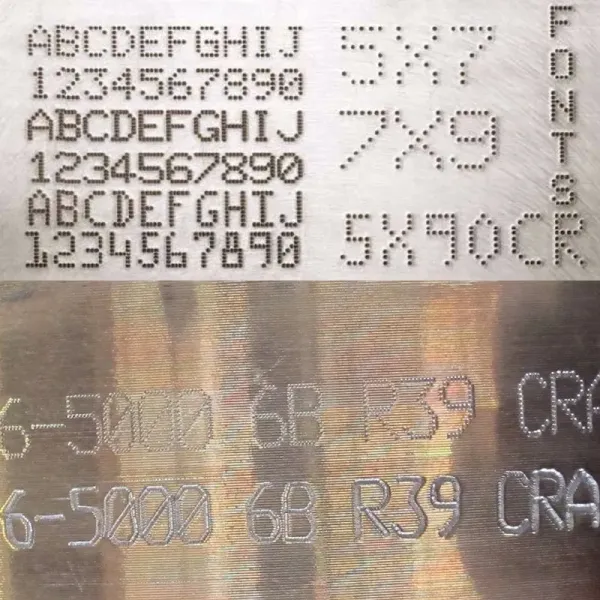

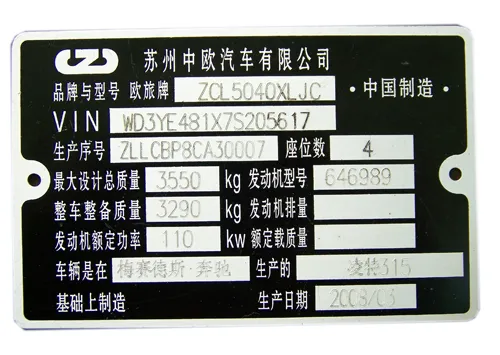

Marking sample

Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal

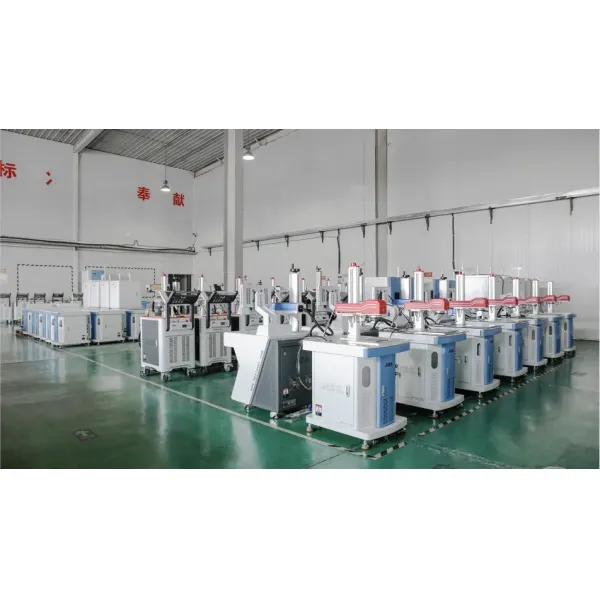

Office & factory

Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal Hangheld Pneumatic DOT Peen Marking Machine For Metal
