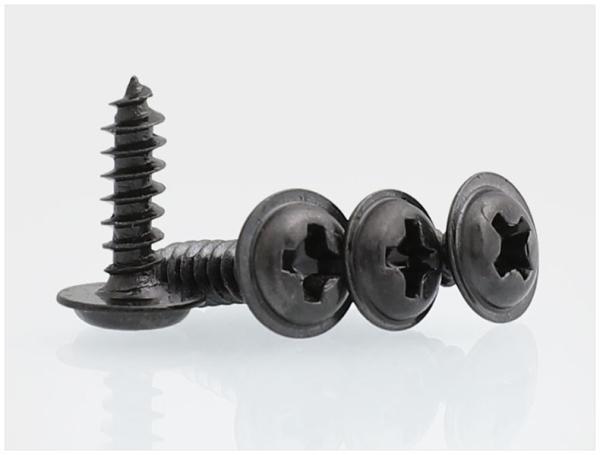

DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar Flanged Pointed Screws
DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar Flanged Pointed Screws
DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar Flanged Pointed Screws
DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar Flanged Pointed Screws
DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar Flanged Pointed Screws
DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar Flanged Pointed Screws
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Runtai
Model Number :
Tapping Screws
Supply Ability :
5 Tons/ Day
Packaging Details :
PP bag+Carton box+ Wooden Pallet
MOQ :
50000
Price :
Negotiable
Certification :
ISO9001/TS16949
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
14-21 days
Products Name :
DIN968 Black Oxide Steel Phillips Drive Pan Head Tapping Screw with Collar
Grade :
4.8, 8.8, 10.9, 12.9 for choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Material :
Steel Stainless Steel Red Copper Aluminum Alloy For Choose
Standard :
DIN ISO JIS ANSI
Size :
M1-M30 for choose.
Description

Stainless Steel Phillips Flanged Extra-Wide Rounded Head Screws for Sheet Metal Tapping Screws with Collar

Products Descriptions

Made from black oxide stgeel, these flanged tapping screws widely used in dry enviorments. A flangeunder the head distributes holding pressure and reduces the risk of crushing thin metal. They penetrate 0.025" and thinner sheet metal. Length is measured from under the flange. Head height includes the flange.

Products Specifications

Material black oxide steel
Screw Size No. 12
Screw Size Decimal Equivalent 0.216"
Length 3/4"
Head
Diameter 0.511"
Height 0.134"
Drive Size No. 3
Drive Style Phillips
Drill Bit Size 3/16"
Drill Bit Size Decimal Equivalent 0.1875"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 11
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Rounded
Rounded Head Profile Wide
Rounded Head Style Truss
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.
