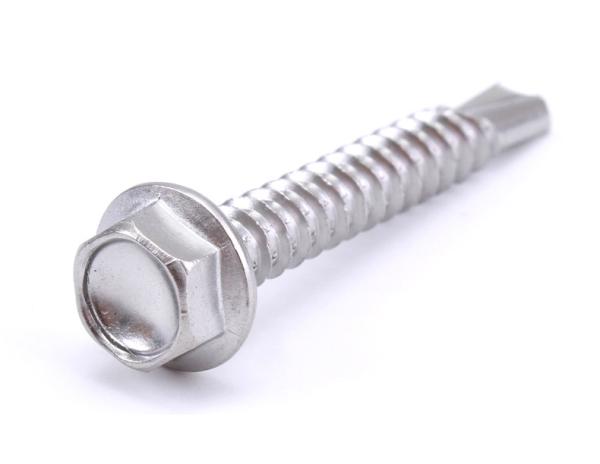

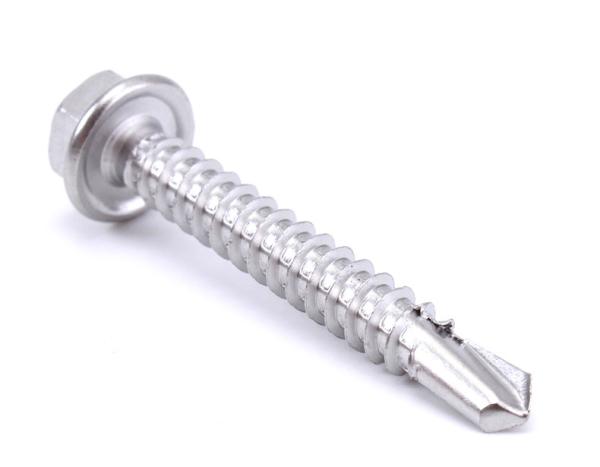

Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread


Products Description


These 18-8 stainless steel screws have a hardened steel drill point to penetrate steel and are coated to increase corrosion resistance. All have a hex head for a secure grip with a wrench and a flange to reduce the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. Length is measured from under the flange. Head height includes the flange.

.
Products Specification

Material Ultra-Corrosion-Resistant Coated 18-8 Stainless Steel
Screw Size No. 10
Screw Size Decimal Equivalent 0.19"
Length 1 1/4"
Drill Tip
Type No. 3
Length 1/4"
Maximum Drilling Thickness 0.15"
Head
Width 0.313"
Height 0.193"
Flange Diameter 0.414"
Drive Style External Hex
Approximate Threads per Inch 16
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Hex
Hex Head Profile Standard
Tip Type Drilling
Tip Material Steel
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Stainless Steel, Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed

How to Production

Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread

Comapny Production Equipment
Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread

More Products Pictures

Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw ThreadStainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
