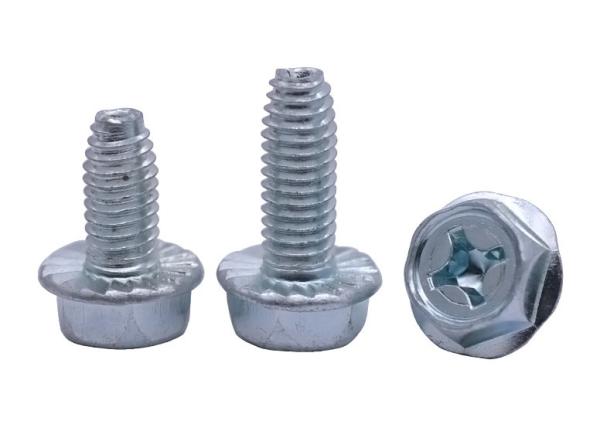

Phillips Drive Hex Head Flanged Thread Forming Screws Zinc Plated Swageform Screws
Phillips Drive Hex Head Flanged Thread Forming Screws Zinc Plated Swageform Screws
Phillips Drive Hex Head Flanged Thread Forming Screws Zinc Plated Swageform Screws
Phillips Drive Hex Head Flanged Thread Forming Screws Zinc Plated Swageform Screws
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Hex Head Flanged Thread Forming Screws Zinc Plated Steel Swageform Screws
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Hex Head Flanged Thread Forming Screws Zinc Plated Steel Swageform Screws


Products Description

These screws have a hex head for a secure grip with a wrench and a flange to reduce the risk of crushing thin metal. Also known as Swageform screws, threads at the tip are designed to grab material for a fast start with low torque in a wide range of materials. All are zinc-plated steel to resist corrosion in wet environments. Length is measured from under the head

.
Products Specification

Material Zinc-Plated Steel
Thread Size 10-24
Screw Size No. 10
Screw Size Decimal Equivalent 0.19"
Length 1"
Head
Width 0.313"
Height 0.151"
Flange Diameter 0.414"
Drive Style External Hex/Slotted
Drill Bit Size No. 21
Drill Bit Size Decimal Equivalent 0.159"
Thread Direction Right Hand
Threading Fully Threaded
Thread Type UNC
Thread Spacing Coarse
Tapping Method Thread Forming
Tapping Screw Type SW
Head Type Hex
Hex Head Profile Standard
Tip Type Blunt
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Aluminum, Brass, Cast Iron, Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed
