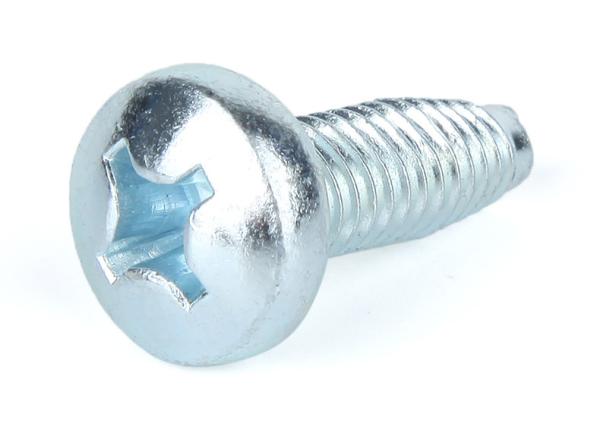

Pan Head Phillips Drive Thread Forming Screws Zinc Plated Steel Tapping Screws
Pan Head Phillips Drive Thread Forming Screws Zinc Plated Steel Tapping Screws
Pan Head Phillips Drive Thread Forming Screws Zinc Plated Steel Tapping Screws
Pan Head Phillips Drive Thread Forming Screws Zinc Plated Steel Tapping Screws
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Pan Head Phillips Drive Thread-Forming Screws Zinc Plated Steel Tapping Screws
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Pan Head Phillips Drive Thread-Forming Screws Zinc Plated Steel Tapping Screws

Products Description

These screws have a triangular shank that presses tightly as it forms threads, so screws resist loosening in soft metals such as brass, aluminum, and copper. Also known as Taptite® screws, they have a Torx drive that allows you to apply extra force with less slippage or damage to the recess.Made from steel, they're zinc-plated steel to resist corrosion in wet environments. Length is measured from under the head.


Products Specification

Material Zinc-Plated Steel
Thread Size M5
Screw Size M5
Length 12 mm
Head, mm
Diameter 9.3
Height 3.55
Drive Size T25
Drive Style Torx
Thread Direction Right Hand
Threading Fully Threaded
Thread Type Metric
Thread Spacing Coarse
Thread Pitch 0.8 mm
Tapping Method Thread Forming
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Blunt
Shank Cross Section Tri-Lobe
System of Measurement Metric
For Use In Aluminum, Brass, Copper
RoHS Compliant

Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed

FAQ
Q:What is your minimum order quantity?
A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.
Q:How can I get a sample to check your quality?
A: After price is confirmed, you can require samples to check our quality. Free for existing samples ,but you need to paid the express freight. For sample making, we will charge a sample fee. Sample fee will be confirmed according to the products' craftwork.
Q:How can I customize my products?
A: Attach your drawings with details.(Surface treatment, material, quantity and special requirements etc).
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50%-70% T/T in advance (depending on different situations.) ,balance before shipment.
Q.What is the quality of your products guarantee?
A:We have passed ISO9001:2015 Quality Management System Certification, SGS testing report, If the quality doesn't accord the standard, you can exchange the goods for free.
Q:What's the delivery time?
A: For products in stock, we can ship it within 2 working days after receiving your payment. For custom order, within 24 tons, production time is 8-20 working days after confirmed every details.

More Products Pictures

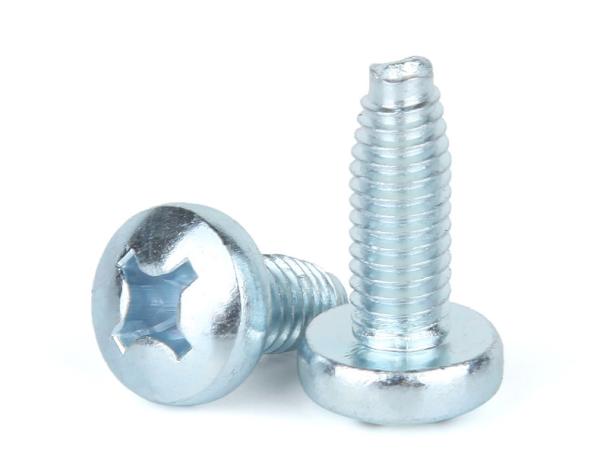

Pan Head Phillips Drive Thread Forming Screws Zinc Plated Steel Tapping ScrewsPan Head Phillips Drive Thread Forming Screws Zinc Plated Steel Tapping Screws
