Specifications
Brand Name :
Haida
Place of Origin :
Guangdong, China
Model Number :
HD-E706
MOQ :
1
Price :
€4,182.07-5,142.87
Internal dimension :
600*600*600mm
External dimension :
1100*900*1650mm
Test sample size :
300*300*50mm
Chamber material :
SUS#304 Stainless steel
Mesh hole size :
75um
Mesh wire diameter :
50um
Talcum powder amount :
2kg/m³
Airflow speed :
No more than 2m/s
Vacuum pump capacity :
60-600 L/H
Door type :
Left open door with tempered glass
Power supply :
AC380V, 50/60Hz, three phase
Fan type :
Centrifugal fan
Controller type :
PLC Touch Screen
Cycle time :
Adjustable
Test time :
0s ~99m99s
Description

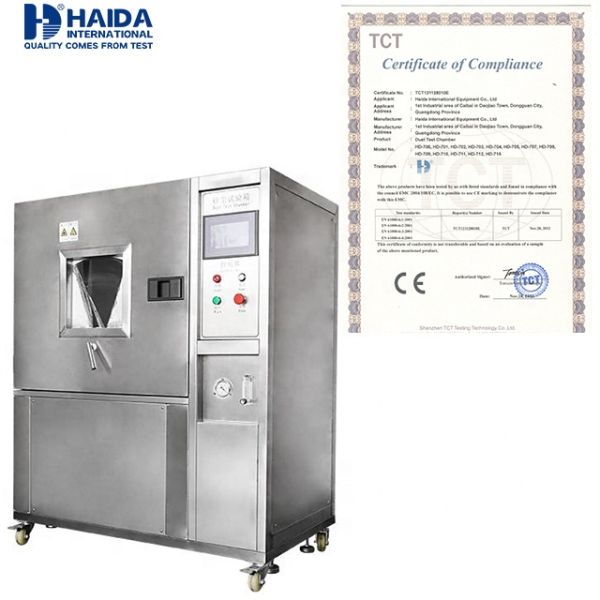

IP5X & 6X Programmable Vacuum Sand and Dust Test Chamber
Professional environmental test chamber designed for dust-proof testing of electronics, ensuring compliance with IP5X and IP6X protection standards.
Product Overview
This programmable vacuum sand and dust test chamber provides reliable environmental testing for electronic components and devices, verifying their resistance to dust ingress under controlled conditions.
IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics

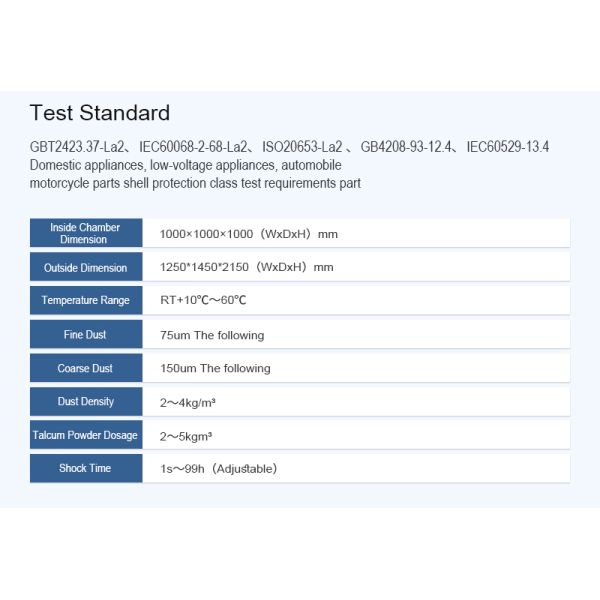

Technical Specifications
Item Value
Warranty 1 year
Customized Support OEM, ODM
Place of Origin Guangdong, China
Brand Name Haida
Model Number HD-E706
Power Electronic
Internal Dimension (W×D×H) 600×600×600mm
External Dimension (W×D×H) 1100×900×1650mm
Test Sample (W×D×H) 300×300×50mm
Chamber Material SUS#304 Stainless Steel
Square Mesh Sieve Specifications Mesh hole 75μm, mesh metal wire diameter 50μm
Talcum Powder Amount 2kg/m³
Airflow Speed No more than 2m/s

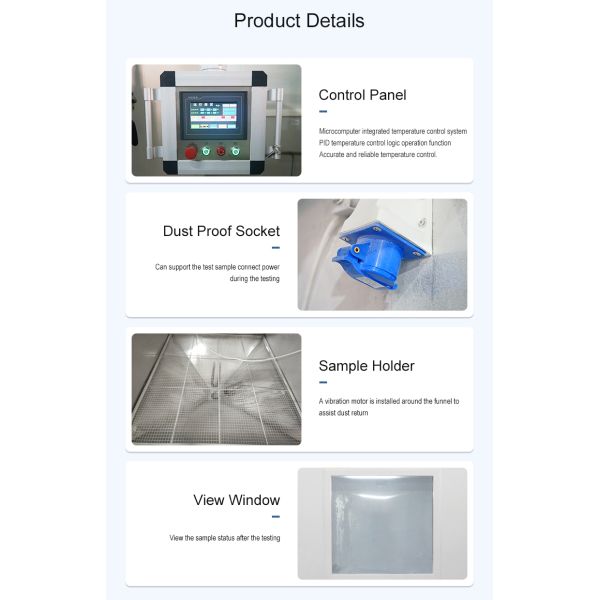

Controller Features

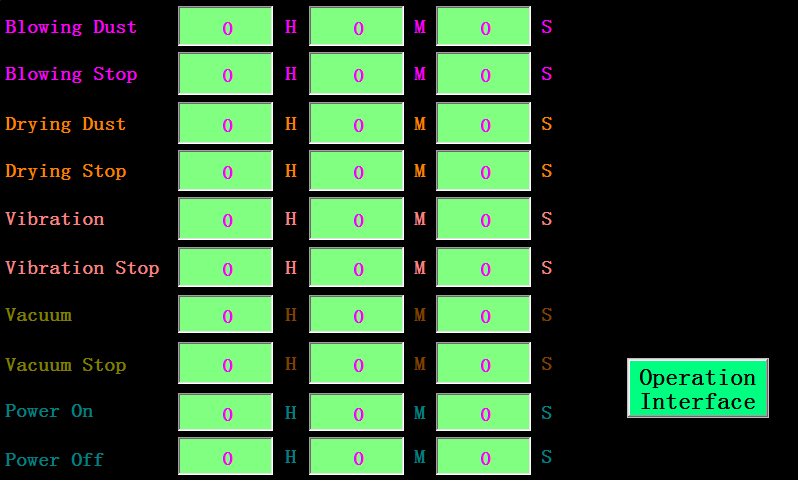

  • PLC Touch Screen controller with programmable settings
  • Adjustable blowing dust time (Stop/Blow) cycles
  • Configurable cycle time settings
  • Pre-set test time range: 0s to 99 minutes 99 seconds
Additional Specifications
  • Vacuum pump capacity: 60-600 L/H
  • Left-opening door with tempered glass viewing window
  • Power supply: AC 380V, 50/60Hz, three phase
  • Centrifugal fan system
  • Safety protection devices including meter over-temperature function, phase shortage protection, and power short-circuit protection
Manufacturer Profile
Haida specializes in manufacturing high-quality environmental test chambers and testing equipment for industrial applications.
