Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Specifications
Brand Name :
Haida
Place of Origin :
Guangdong, China
MOQ :
1
Power :
10KW
Voltage :
380 V
Rainfall time :
1~9999min, adjustable
Rainfall cycle :
1~240min, interval adjustable
Box material :
Stainless Steel SUS304#
Heating/humidifying power :
2.0KW/2.0KW
Sample spinning speed :
1~5r/min (adjustable)
Sample-lamp distance :
300~375mm
Internal dimensions :
700*500*600mm
External dimensions :
1350*1300*1850mm
Chamber humidity range :
55%~90% RH
Chamber temperature :
35℃~90℃
Black panel temperature :
45℃~95℃, adjustable
Xenon lamp power :
1.8KW * 3pcs = 5.4KW
Irradiance strength :
0.51W/m²@340nm
Description

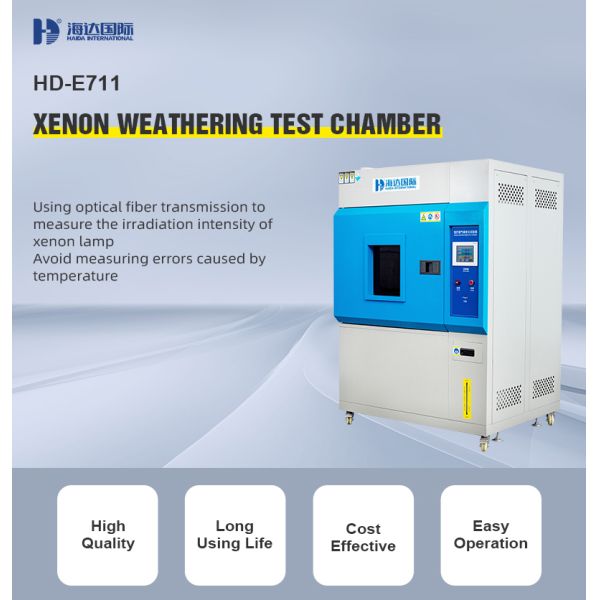

Xenon Arc Lamp Test Chamber - Xenon Accelerated Weathering Test Machine
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine

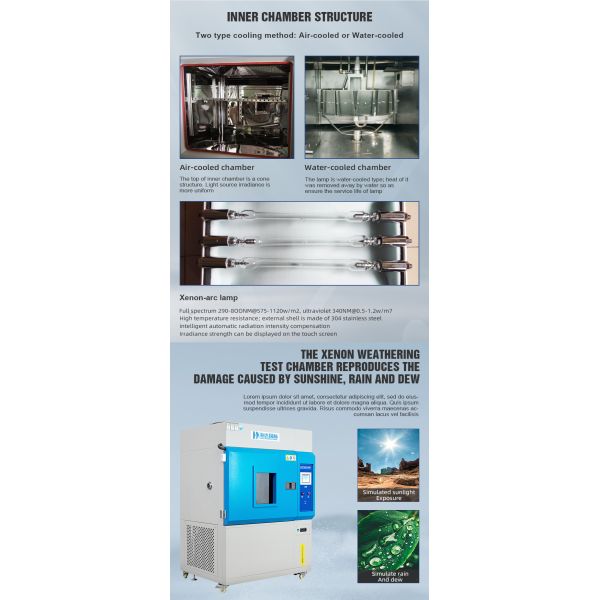

The Xenon aging test chamber simulates the full sunlight spectrum using xenon arc lamps to reproduce destructive light waves found in various environments. This equipment provides appropriate environmental simulation and accelerated testing for scientific research, product development, and quality control applications.
This climate tester can simulate hazards caused by sunlight, rain, and dew - the primary causes of product degradation. It is suitable for testing materials including coatings, plastics, aluminum panels, and automotive safety glass.
Applications
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
This equipment is designed for accelerated weathering tests on various materials to predict their long-term performance and durability under different environmental conditions.
Technical Specifications
Item Specification
Internal Dimension (W*D*H) 700*500*600mm
External Dimension (W*D*H) 1350*1300*1850mm
Internal chamber material SUS 304 # Stainless Steel, anti-rust
External chamber material Cold-rolled steel with spray
Chamber humidity range 55%~90% RH
Chamber temperature 35℃~90℃
Black panel temperature 45℃~95℃, adjustable
Temperature uniformity ≤±3℃
Filter Window glass filter / daylight filter
Light source Air cooled long arc xenon lamp
Xenon lamp power 1.8KW * 3pcs = 5.4KW
Irradiance strength 0.51W/m²@340nm
Control system LCD programmable controller, Auto display irradiance, capacity: 100 groups program, 99 cycles
Illumination time 1~999 hours, adjustable
Water spray system Water spray time 999 minutes settable, Interval spray time: 1~240 minutes settable
Sample holder Stainless steel, 1pc
Distance from sample holder to lamp 250~300mm
Heating Nickel-chromium alloy electric heater
Humidification power Stainless steel surface evaporative humidifier
Insulation materials Super fine glass fiber
Temperature sensor PT100 high precision sensor
Air circulation system Stainless steel centrifugal rotor vane to improve temperature and humidity uniformity
Standard accessories Xenon lamp x 3pcs; Humidification cotton x 5pcs; English user manual x 1pc; Operation video x 1pc

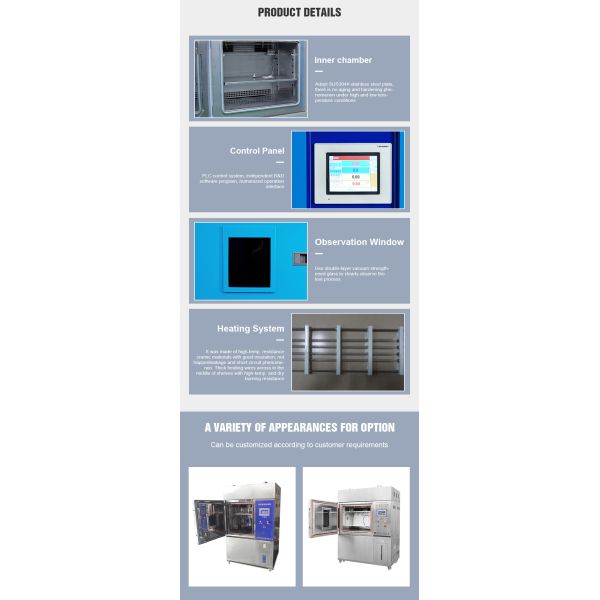

Key Features
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
  • Ventilation system: Automatic temperature control with inner chamber cooling by refrigerating system
  • Back panel thermometer: Wired transmission technology for highly improved control accuracy
  • Temperature sensor: PT100 platinum resistance thermocouple
  • Intelligent temperature and humidity controller with PID adjustment and rapid self-tuning
  • Multiple protective devices: Over temperature protection, water leakage alarm, compressor over pressure protection, electricity leakage protection, and automatic power-off protection
  • Safety feature: Xenon light automatically turns off when door is opened
Design Standards
ISO 4892-2:2006, ISO 11341-2004, ASTM G155-05a, ASTM D2565-99, ASTM D4459-06, ASTM D6695-03

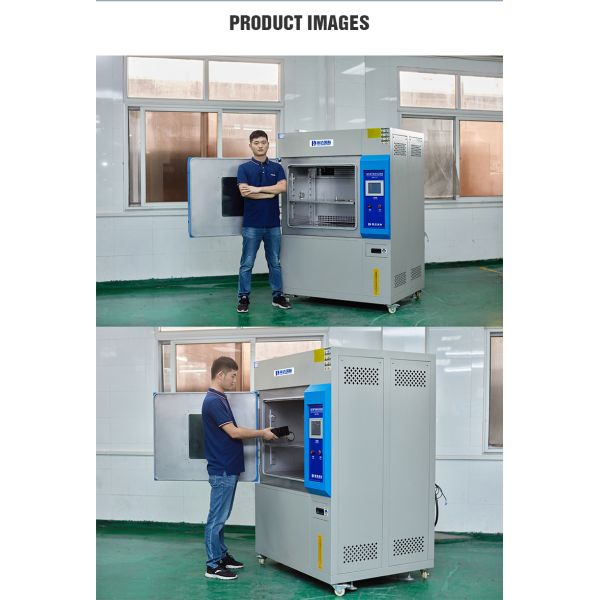

Product Gallery
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Company Profile
HAIDA INTERNATIONAL
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 15 years of experience. Our products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries. They are applicable to all scientific research units, quality inspection institutions, and academic fields.
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Quality Control
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Service & Support
Haida Equipment Service
We provide comprehensive technical support. If you encounter any problems during testing, we guarantee a response within 48 hours and solution implementation within 3 working days. We offer operation videos, English operation manuals, and video conferencing support.
Onsite Services
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment upkeep
Additional Services
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
  • Free documentation: Product instructions, operation manuals/videos, experiment test applications and reports
Device Problem Resolution
  • Social media 24-hour online communication
  • Seamless email support
  • Video conferencing assistance
  • On-site technical service
Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine
Why Choose HAIDA?
  • Considerate Service: Different country plugs, manually changeable voltage from 110V to 220V, insurance indicator
  • Excellent After-sales Service: 12 months warranty with free controller repairs and replacement parts
  • Comprehensive documentation: Operation videos and English operation manuals
  • Video conferencing support available
Please feel FREE to contact us if you have any requirements. Visit our official website at:

www.haidatestequipment.com

For more information, please leave a message below and click "CONTACT SUPPLIER".

Thank you for your time and attention!
