Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Specifications
Brand Name :
Haida
Place of Origin :
Guangdong, China
MOQ :
1
Price :
AED 14,210.19-16,827.85
Power :
5.5kw
Voltage :
380 V
Capacity :
60L/100L/150L/225L/408L/1000L
Humidity range :
20~98%R.H
Temperature range :
-20℃,-40℃,-60℃,-70℃~+150℃
Internal dimensions :
400*500*500mm
External dimensions :
700*1400*1100mm
Temperature fluctuation :
±0.5℃
Temperature uniformity :
≤1.5℃
Humidity fluctuation :
≤±2.5%RH
Humidity uniformity :
3%RH
Cooling speed :
1℃/min
Heating speed :
3℃/min
Internal material :
SUS#304 stainless steel
External material :
Stainless steel
Description

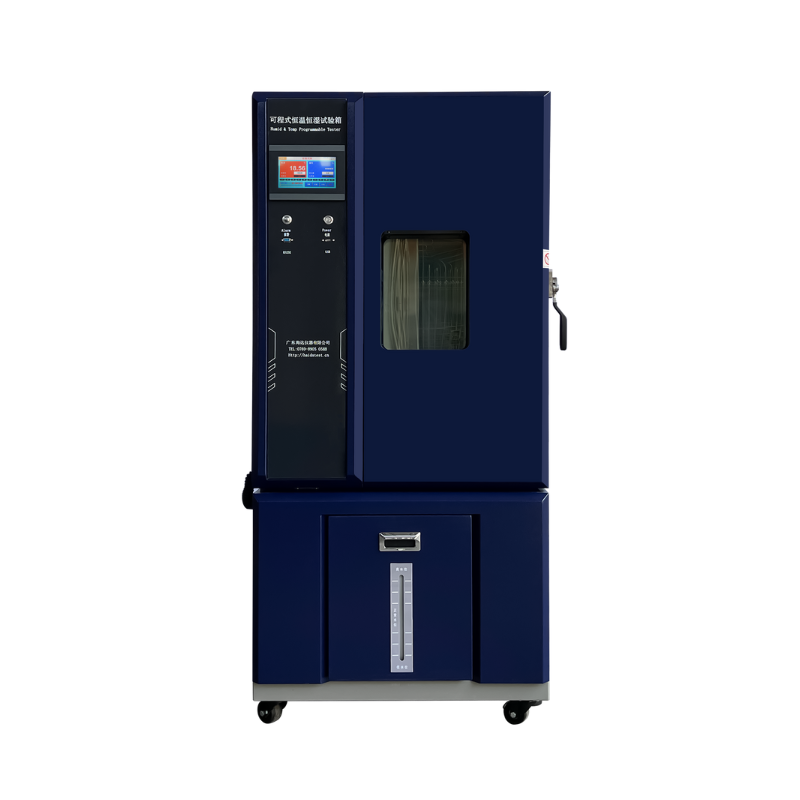

HD-E702 Programmable Temperature & Humidity Test Chamber
The HD-E702 Temperature and Humidity Test Chamber is designed to evaluate material performance under various environmental conditions, testing heat resistance, cold resistance, dry resistance, and humidity resistance. Ideal for quality testing across multiple industries including electronics, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical care, and aerospace.
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Technical Specifications
Model Dimensions
Model Internal Dimension (W×H×D) External Dimension (W×H×D)
HD-E702-100400×500×500mm700×1400×1100mm
HD-E702-150500×500×600mm800×1500×1100mm
HD-E702-225500×750×600mm800×1670×1200mm
HD-E702-408600×850×800mm900×1770×1400mm
HD-E702-10001000×1000×800mm1550×2100×1400mm
Internal Dimensions
400×500×500mm (W×D×H)
External Dimensions
700×1400×1100mm (W×D×H)
Temperature Range
-20℃, -40℃, -60℃, -70℃ to +150℃
Temperature Fluctuation
±0.5℃
Temperature Uniformity
≤1.5℃
Humidity Range
20-98% RH
Humidity Fluctuation
≤±2.5% RH
Humidity Uniformity
3% RH
Cooling Speed
1℃/min average (without loading)
Heating Speed
3℃/min average (without loading)
Internal Chamber Material
SUS#304 stainless steel, mirror finished
External Chamber Material
Stainless steel
Cooling Method
Air cooling
Controller
LCD touch screen, programmable control for temperature and humidity with cyclic test parameters
Insulation Material
50mm high density rigid Polyurethane foam
Heater
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor
France Tecumseh compressor x 2 sets
Lighting
Heat resistance
Temperature Sensor
PT-100 dry and wet bulb sensor
Observation Window
Tempered glass
Testing Hole
Diameter 50mm, for cable routing
Sample Tray
SUS#304 stainless steel, 2 pieces
Safety Protection Features
  • Leakage protection
  • Over-temperature protection
  • Compressor overvoltage and overload protection
  • Heater short circuit protection
  • Water shortage protection
Test Chamber Applications
  • Simulate test environments with different temperature and humidity conditions
  • Cyclic testing including climatic conditions: holding test, cooling-off test, heating-up test, moistening test, and drying test
  • Cable port with flexible silicone plug for cable routing to test units under operation
  • Uncover test unit weaknesses in short-term tests with accelerated time effect
Design Features
  • High performance and quiet operation (68 dBA)
  • Space-saving design for flush installation to wall
  • Full thermal break around door-frame
  • One 50mm diameter cable port with flexible silicone plug
  • Accurate wet/dry-bulb humidity measurement system for easy maintenance
Programmable Controller Features
  • PLC controller for test chamber operation
  • Step types include: ramp, soak, jump, auto-start, and end
  • RS-232 interface for computer connectivity and data output
Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric
Manufacturer Profile
Professional manufacturer of environmental test equipment with expertise in climate simulation chambers for industrial and research applications.
