200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
200w Battery Heavy Impact Test Chamber IEC62133
Specifications
Impact Height :
0-1000mm (Can be set)
Impact Floor Material :
No. 45 Steel, Thickness 30 Password
Power Supply :
AC220V; 50Hz/60Hz
customized support :
OEM, ODM
Voltage :
220 V
Weight :
9.1kg and 10kg
Displacement Accuracy :
≤±5mm
Accuracy :
/
power :
200w
Height Display :
LED Meter Display
MOQ :
1
Impact Method :
Free Fall
Type :
Testing Machine
Metal Rod :
15.8±0.2mm (5/8 inch) Steel Rod
Pressure Relief Door Size :
200*200mm
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Lithium battery testing, New energy battery testing, Lead-acid battery testing, other battery testing
Control Method :
PLC Touch Screen Control
warranty :
1 Year
Protection Class :
Ip56
Description
Product Description

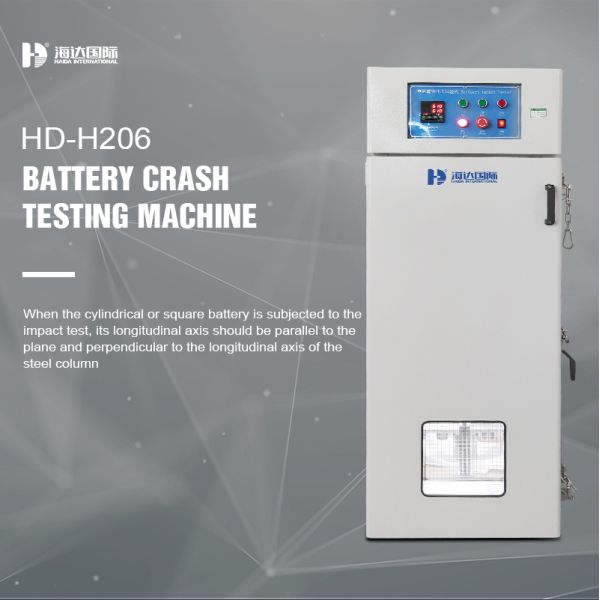

HD-H206 Battery Heavy Impact Test Chamber

Battery Impact Test Chamber tests the safety performance of battery through different weights from different heights and different stressed area to impact.

200w Battery Heavy Impact Test Chamber IEC62133


Technical parameters


Item Description

Inner Box Size (W*D*H)

490*520*1430mm

Equipment Dimensions (W*D*H)

700*1000*1720mm

Weight

9.1kg and 10kg

Impact Height

0-1000mm (Can be set)

Height Display

LED Meter Display

Displacement Accuracy

≤±5mm

Impact Method

Free Fall

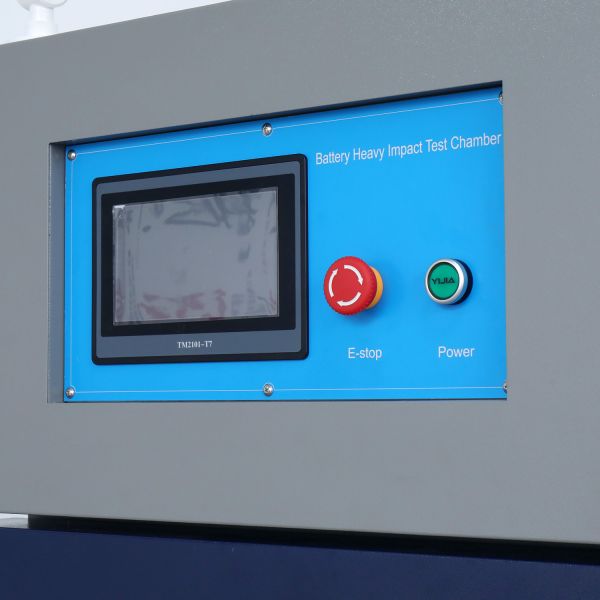

Control Mode

PLC Touch Screen Control

Impact Floor Material

30mm No. 45 Steel

Metal Rod

15.8±0.2mm (5/8 inch) Steel Rod

Pressure Relief Door Size

200*200mm

Smoke Exhaust Pipe

Diameter φ100mm (Located at the back of the box)

The Maximum Size

of the Battery Tested (W*D*H)

200*200*200mm
Equipment Weight 85Kg
Power Supply AC220V; 50Hz/60Hz
Internal Material

1.2mm SUS#304 Stainless Steel Plate,

Teflon Melt Adhesive Tape is Applied to 1/3 of the Place,

High Temperature Resistance

Corrosion Resistance, Insulation and easy to clean.
External Material 1.5mm Thick Cold-rolled Steel Plate with Paint Treatment

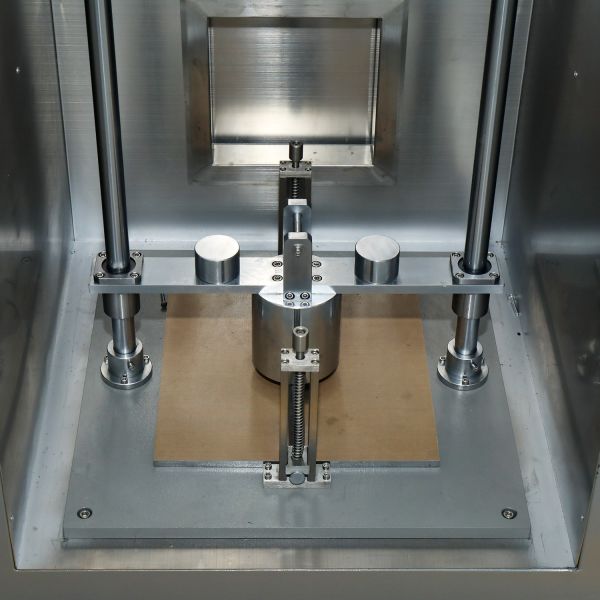

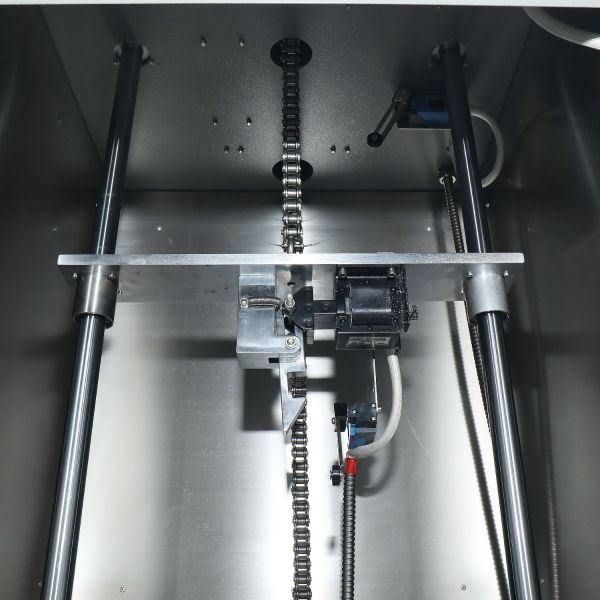

Impact Method

Lift the Falling Ball to a Certain Height and Release it,

and the Falling Ball Falls Freely in the Vertical Direction,

without Tilting or Shaking;

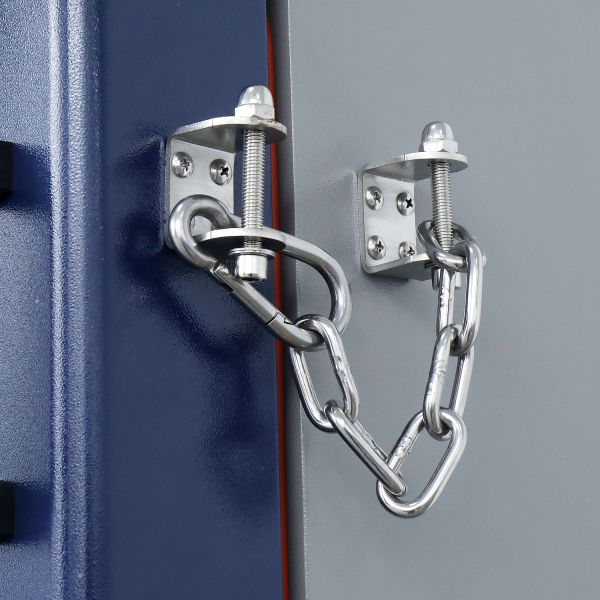

Box Door

a Single Door Opens to the Left,

and Explosion-proof Chain is Installed on the Side of Door
