Specifications
Control Method :
PLC Touch Screen Control
Equipment Weight :
135Kg
Extrusion Head :
Extrusion Head Area ≥20cm²
Extrusion Degree :
Extrusion Pressure Reaches 13±0.2kN, Keep for 1min
Place of Origin :
Guangdong, China
MOQ :
1
power :
200w
Accuracy :
/
warranty :
1 Year
Force Value Display :
Touch Screen Display
Brand Name :
HAIDA
Application :
Lithium battery testing, New energy battery testing, Lead-acid battery testing, other battery testing
Force Range :
1~20kN
Protection Class :
Ip56
Voltage :
220 V
Extrusion Stroke :
250mm
Inner Box Size :
520*450*560mm (W*D* H*)
Equipment Dimensions :
800*700*1720mm (W*D* H*)
Type :
Testing Machine
customized support :
OEM, ODM
Power Supply :
AC220V; 20A
Description
Product Description

HD-H212 Battery Crush & Nail Penetration Test Chamber

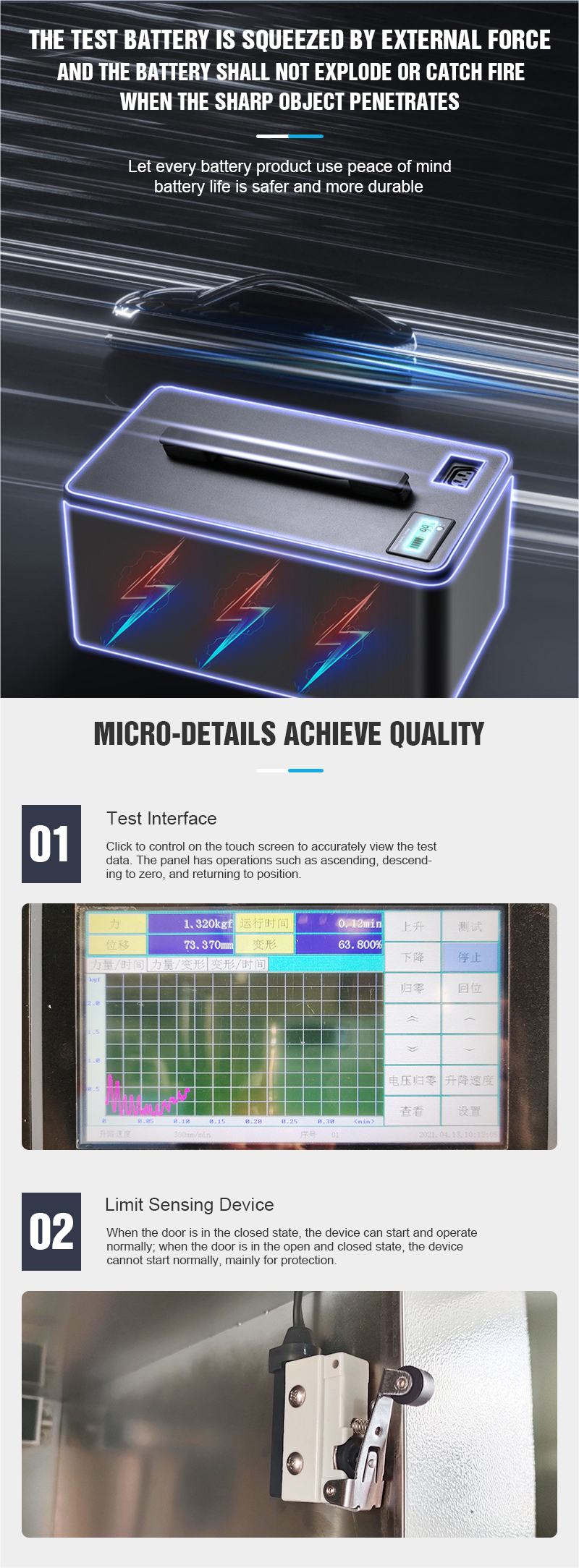

Battery Crush & Nail Penetration Test Chamber is suitable for simulating the squeezing and acupuncture of various batteries during use, transportation, storage or disposal of household waste.

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber


Technical parameters


Item Description

Inner Box Size (W*D*H)

520*450*560mm

Equipment Dimensions (W*D*H)

800*700*1720mm

Force Range

1~20kN

Force Value Display

Touch Screen Display

Extrusion Stroke

250mm

Extrusion Head

Extrusion Head Area ≥20cm²

Extrusion Degree

Extrusion Pressure reaches 13±0.2kN, Keep for 1min

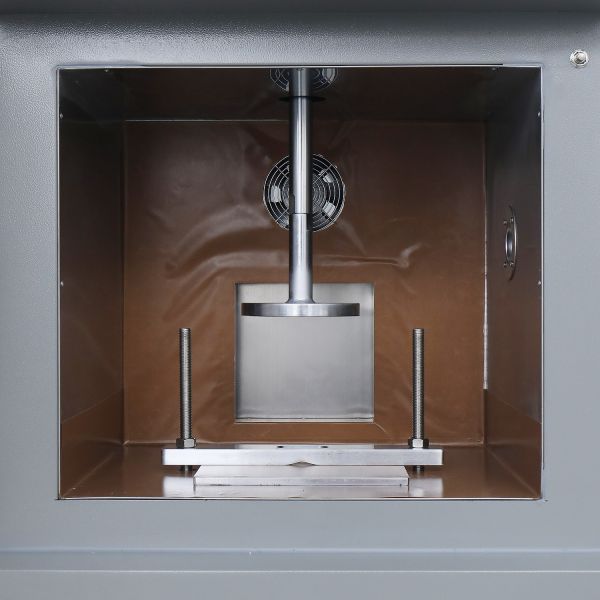

Test Space (W*D*H)

200*200*200mm

Steel Needle

φ2mm~φ8mm High Temperature Resistant Steel Needle,

the Length is 100mm (Can be Specified)

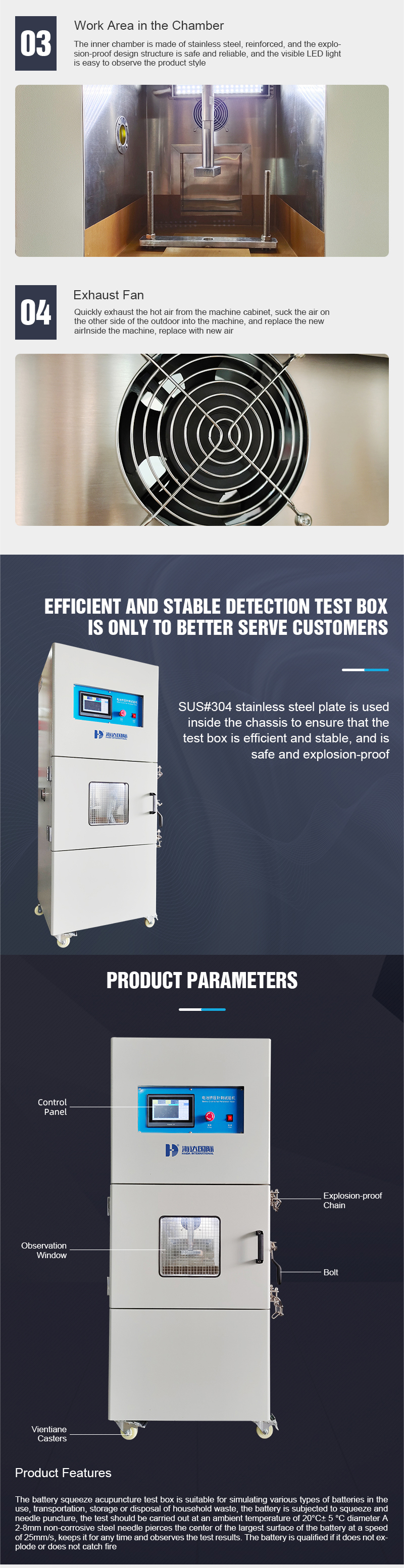

Internal Material

1.2mm SUS304 Stainless Steel Plate

External Material

1.5mm A3 Steel Plate and Painted

Pressure Relief Door Size

200*200mm

Smoke Exhaust Pipe

Diameter φ100mm, Located at the Back of the Box

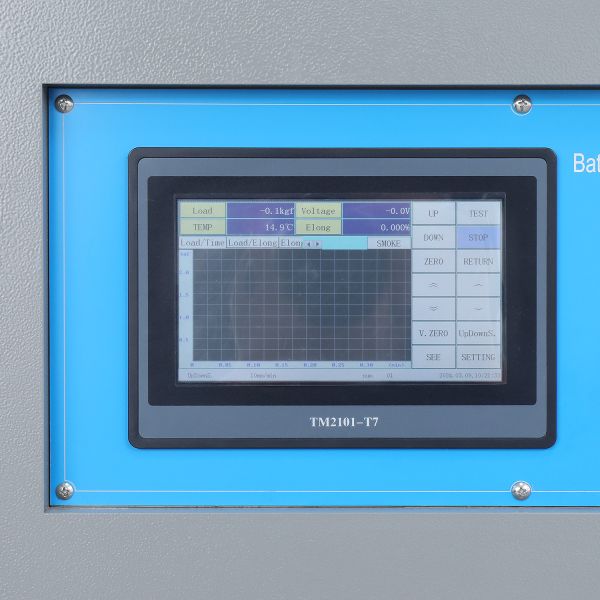

Control Method

PLC Touch Screen Control

Drive Mode

Servo Motor Drive

Equipment Weight 135Kg
Power Supply AC220V; 20A

Box Door

a Single Door Opens to the Left,

and an Explosion-proof Chain is Installed on the Door

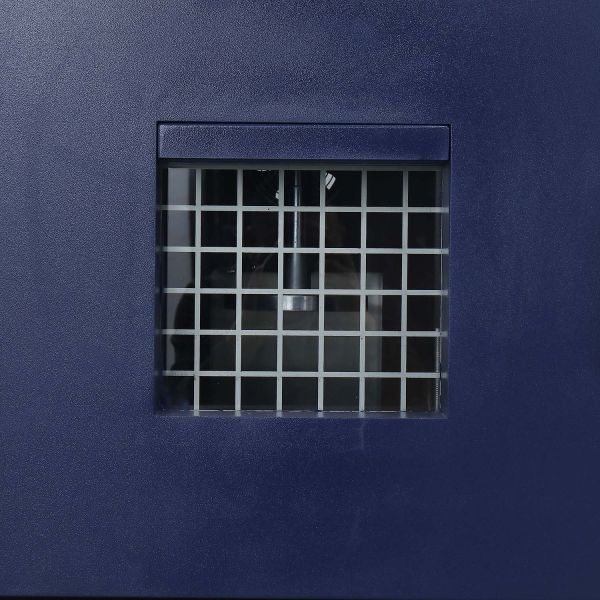

Observation Window

The Size is 250*250mm Two-layer Tempered Glass

The Transparent Window is Equipped with Stainless Steel Mesh

Details

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber

HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber
