Specifications
Brand Name :
HAIDA
Voltage accuracy :
± 0.02% F.S
Voltage :
380 V
Power supply frequency :
50±5% Hz
Output current :
300A/400A/600A/1000A/2000A/4000A
warranty :
1
Type :
Testing Machine
power :
/
Voltage resolution :
1mV
MOQ :
1
Wiring method :
AC three-phase four-wire
Application :
Battery Testing
customized support :
OEM, ODM
Power factor :
> 0.99
Protection Class :
Ip56
Cabinet size (Optional) :
(1600-2800)*1100*2000
Place of Origin :
Guangdong, China
Single channel voltage range :
750V~1500V...2000V
Accuracy :
0.01
Max. power feedback efficiency :
≥ 96%
Power supply voltage :
380±10% VAC
Description
Product Description

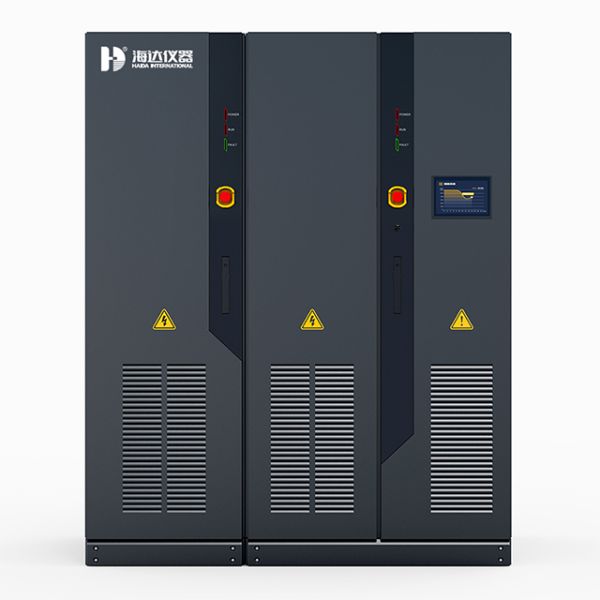

Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing




HD-H214-750/2000

High voltage and high current battery test system

Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing

Specification
Functions
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Battery capacity test Charge/discharge test Static/dynamic SOC test Charge retention test
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Cycle life test Temp. performance test High-speed DCIR test
working condition pulse test
Detailed Parameters
AC parameters
Wiring method
AC three-phase four-wire
Power supply voltage
380±10% VAC
Power supply frequency
50±5% Hz
Power factor
> 0.99
Max. power feedback efficiency
≥ 96%
THD
＜3%
DC parameters
Output current
300A/400A/600A/1000A/2000A/4000A
Single channel voltage range
750V~1500V...2000V
Voltage accuracy
± 0.02% F.S
Voltage resolution
0.1mV
Current accuracy
± 0.02% F.S
Current resolution
1mA
Current response time
3ms（10%~90% F.S）
Current switching time
5ms（-90%~90% F.S）
Min. Working Condition Simulation Interval
10ms
Upper computer software function
Charging mode
CC, CV, CCCV, CP, Slope, etc.
discharge mode
CC, CV, CP, CR, Slope, etc.
Other working mode
Still,Pause,Working condition test, Pulse test,DCIR
Test cut-of condition
Battey voltage, current, time, capacity, temperature
Data export format
Excel、TXT etc.
Time recording interval
10ms
Editable step
Max. 10000
Programmable step
Max. 10000
Nested loop
Max. 10 layers
Software protection
OCP/OVP/UVP/Reverse or wrong connection protection Protection for abnormal communication
Third-party
device integration
Support linkage of temperature box, MTV/MTS,
and I/O control box, and chiller
Other parameters
IP grade
IP20
Working temperature
0℃~40℃
Cooling method
Air Cooling
Noise
＜75dB
Cabinet size
(1600-2800)*1100*2000（W*D*H mm）
Note: For specific models and parameters,
please refer to the corresponding technical specifications
Advantages
* Support single battery voltage consistence test

* Support multi-channel parallel

* Power factor value up to 0.99

* Anti-reverse connection and data protection

* Battery discharge and energy feedback efficiency ≥96%

* Three-level technology,wide voltage output, small current ripple

* Support RS485/CAN battery pack communication protocol

* CAN communication baud rate is changeable

* Support DBC import at one-click

* Support user-defined BMS values as control/protection parameters

* Support slope charging and discharging

* User-defined login management rights are supported

* National standard plug, simulate charging pile for charging(optional)

Details
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Company Profile
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Our Partners
Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing
Our Advantages
Our Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
