Specifications
customized support :
OEM, ODM
IP grade :
IP20
Power supply voltage :
220±10% VAC
Capacity :
60V~200V, 100V~1500V
Cooling method :
Air cooling
Type :
Testing Machine
Application :
Battery Testing
power :
3.5kw
Power supply frequency :
50±5% Hz
Protection Class :
Ip56
Accuracy :
0.01
Wiring method :
AC single-phase three-wire
Cabinet size :
600*850*1980 (W*D*H mm)
MOQ :
1
Rated power :
3.5KW
warranty :
1
Working temperature :
0℃~40℃
Place of Origin :
Guangdong, China
Brand Name :
HAIDA
Voltage :
220 V
Noise :
<75dB
Description
Product Description

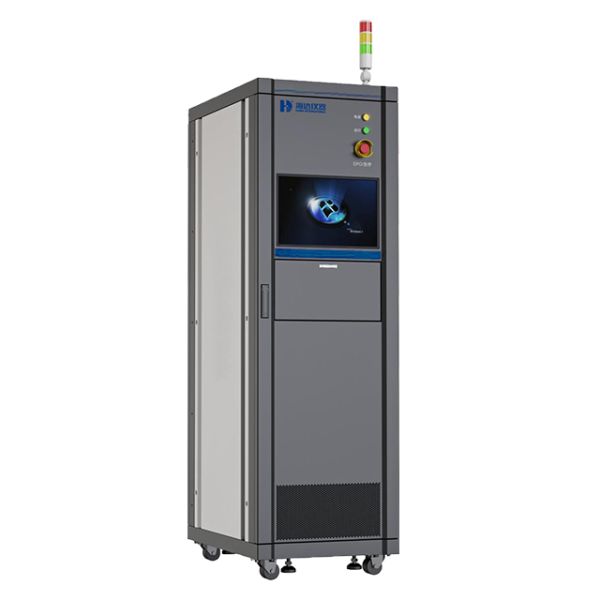

Power Battery Insulation & Charge & Current EOL Test Machine for E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module





HD-H215-60/100/1500

Power Battery Pack

EOL Test System

Applied in e-vehicle, e-bus, energy storage base, battery pack EOL testing, and quality control.
Specification
Functions
Power Battery Insulation & Charge & Current EOL Test Machine for E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module
Insulation detect Vehicle/CAN communication UDS communication Single battery/total
test charging function test function test voltage precision test
Power Battery Insulation & Charge & Current EOL Test Machine for E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module
Fast charge/slow charge SOC function test Relay ON/OFF test Total current precision test
pre-charge function test
Detailed Parameters



AC parameters
Wiring method
AC single-phase three-wire
Capacity
60V~200V, 100V~1500V
Rated power
3.5KW
Power supply voltage
220±10% VAC
Power supply frequency
50±5% Hz







Safety performance test
Insulation resistance test
DC voltage withstand test
AC voltage withstand test
DC Equipotential test
AC Equipotential test
High-voltage interlock function test
Zero-drift testing
Insulation leakage simulation test
Collision signal test










Basic function test
OCV
AC internal resistance
Low voltage power consumption test
BMS data reading and sending
Relay ON/OFF test
Program burning
Slow charging signal test
Fast charging signal test
Balancing function test
Heating function test
SOC function test
Current accuracy test
DCIR test




Other parameters
IP grade
IP20
Working temperature
0℃~40℃
Cooling method
Air cooling
Noise
＜75dB
Cabinet size
600*850*1980mm（W*D*H ）
Note: For specific models and parameters,
please refer to the corresponding technical specifications


Advantages
* Integrated high-precision meter, reliable and standard testing result

* Support production verification and research-oriented test for R&D

* High compatibility, satisfy different testing requirements on module mono box, and PACK unit

* Functional module is expandable as required

* Intelligent and automatic work process to save labors and improve testing efficiency

* Exclusive open software platform, support instruments and meters of other brands

* Software supports the analysis of various BMS communication protocols, pass-through analyze,
without any algorithm process

* Testing function and project development can be customized as required
