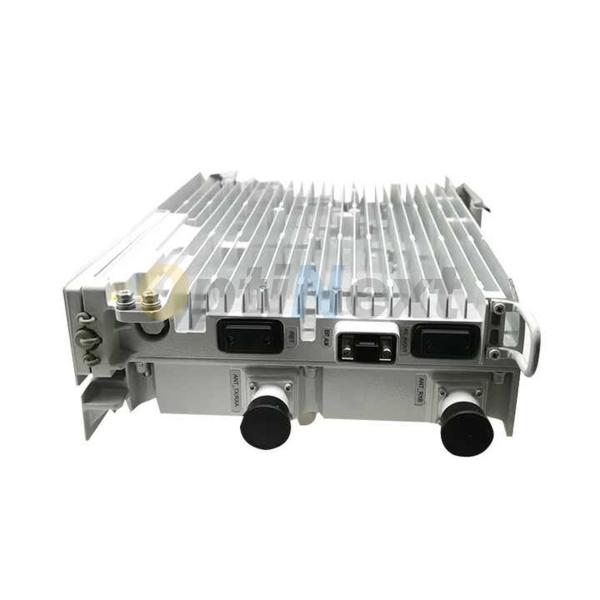

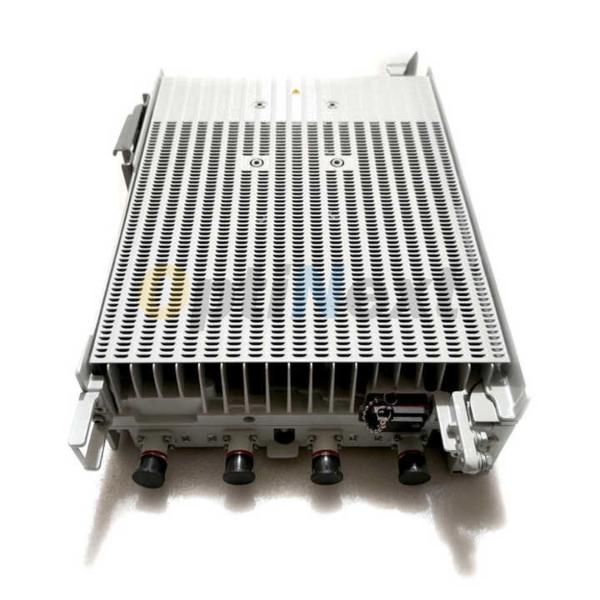

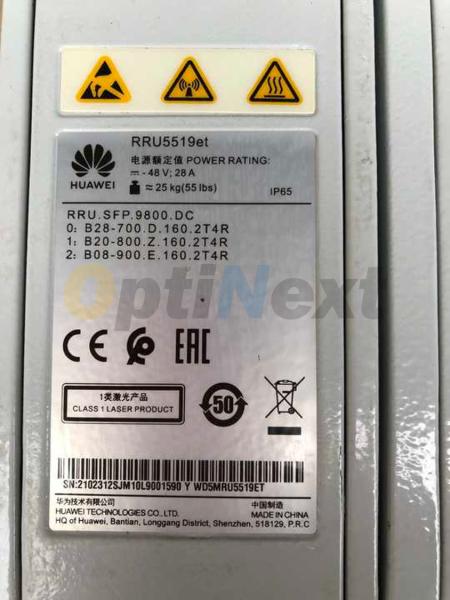

RRU5519et
RRU5519et
RRU5519et
RRU5519et
RRU5519et
RRU5519et
Specifications
Brand Name :
Huawei
Model Number :
RRU5519et
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
15 working days
Description

3.1 RRU5519et (700 MHz+800 MHz+900 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands

Table 3-1 Frequency bands supported by an RRU5519et

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

IBW (MHz)
700+800+900 Band 28/n28+Band 20/n20+Band 8/n8

700: 703 to 733

800: 832 to 862

900: 880 to 915

700: 758 to 788

800: 791 to 821

900: 925 to 960

700: 30a

800: 30a

900: 35a
a: The IBW can be achieved when no third-order passive intermodulation (PIM3) products of TX signals fall in the RX frequency bands.
