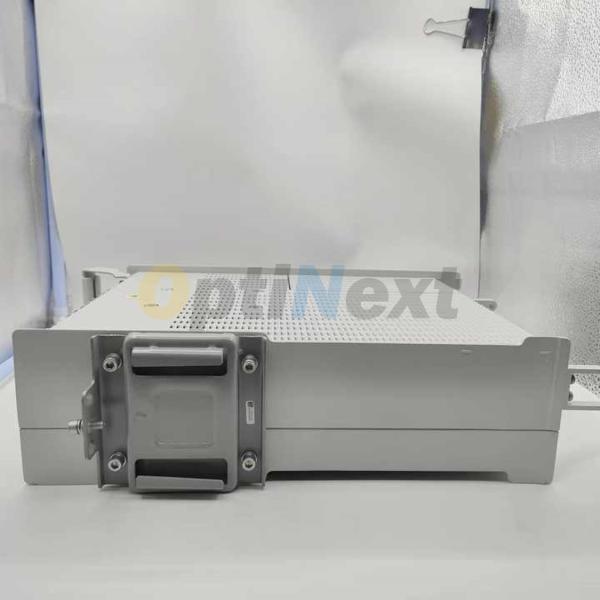

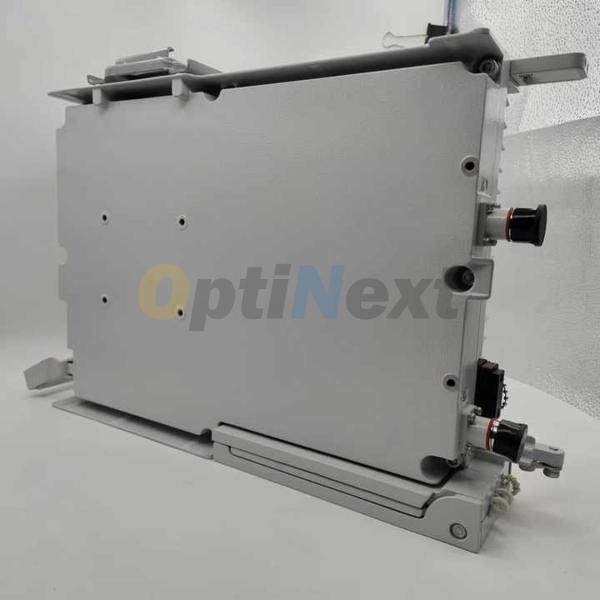

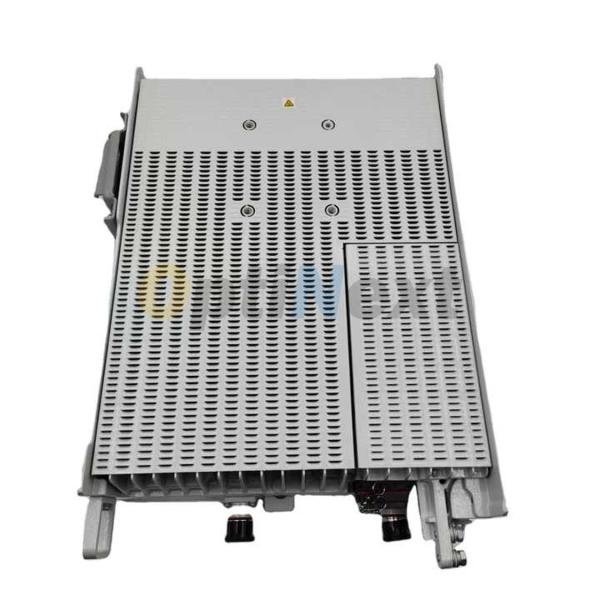

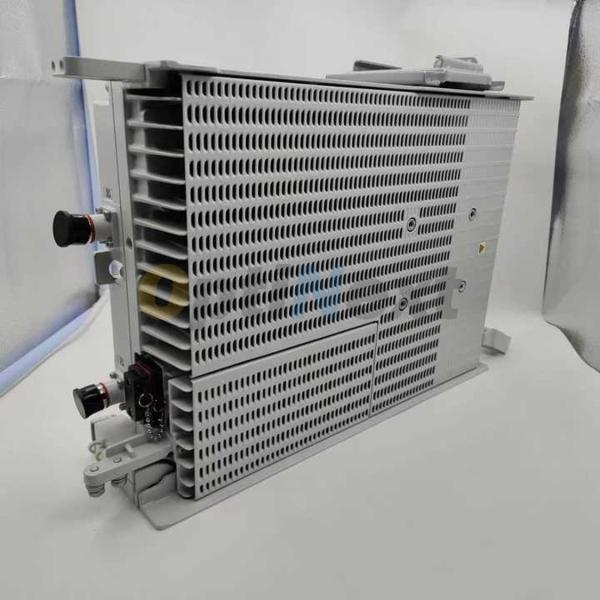

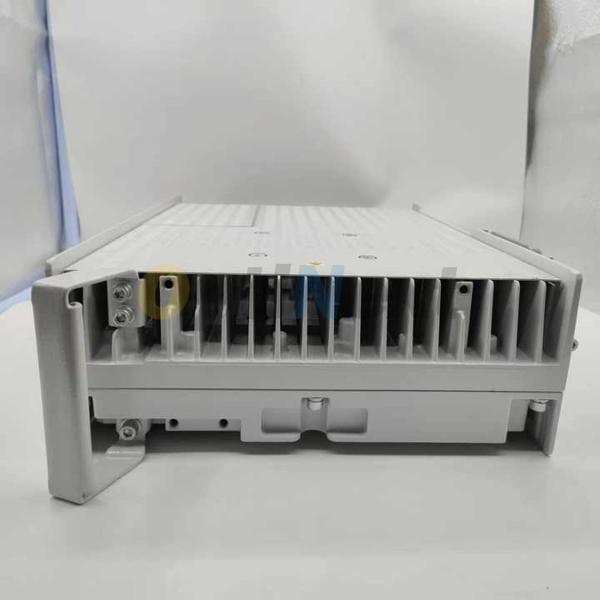

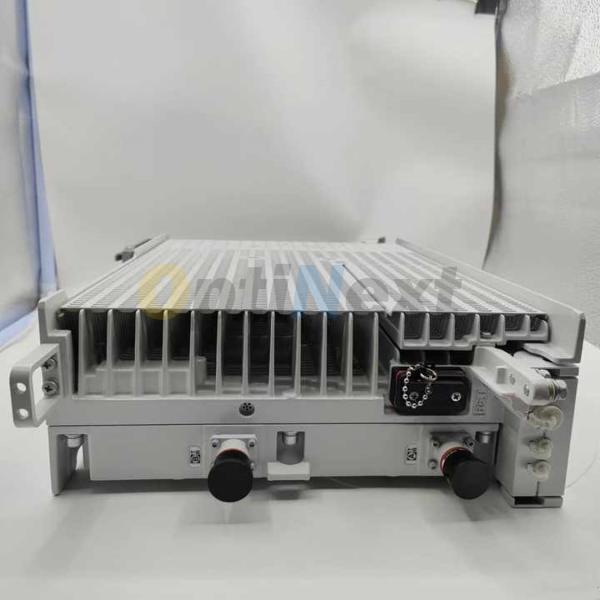

RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
RRU5905
Specifications
Brand Name :
Huawei
Model Number :
RRU5905
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
500pcs/Week
Delivery Time :
15 working days
Description

3 RRU5905 (900 MHz) Technical Specifications

The technical specifications of an RRU5905 (900 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

3.1 RRU5905 (900 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.

Supported Frequency Bands and RATs

Table 3-1 Frequency bands and RATs supported by an RRU5905 (900 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
900 EGSM Band 8/n8 880 to 915 925 to 960 GSM, UMTS, LTE FDD, GU, GL, UL, GUL, LTE NB-IoT, GM, UM, LM, GUM, GLM, ULM, GULM, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), MN (FDD), GMN (FDD), UMN (FDD), GUMN (FDD) 35
900 PGSM Band 8/n8 890 to 915 935 to 960 GSM, UMTS, LTE FDD, GU, GL, UL, GUL, LTE NB-IoT, GM, UM, LM, GUM, GLM, ULM, GULM, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), MN (FDD), GMN (FDD), UMN (FDD), GUMN (FDD) 25

4 RRU5905 (1800 MHz) Technical Specifications

The technical specifications of an RRU5905 (1800 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

4.1 RRU5905 (1800 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, G is short for GSM, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 4-1 Frequency bands and RATs supported by an RRU5905 (1800 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
1800 Band 3/n3 1710 to 1785 1805 to 1880 GSM, LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD) 45

TX/RX Modes and Capacity

Table 4-2 TX/RX modes and capacity of an RRU5905 (1800 MHz)

Frequency Band (MHz)

Protocol-defined Band

TX/RX Modea

Capacityb

Supported Bandwidth (MHz)c
1800 Band 3/n3 2T2R

GSM: 8 carriers

LTE FDD: 2 carriers

LTE NB-IoT: 8 carriers when the NB-IoT multi-carrier function is enabled and 1 carrier when the NB-IoT multi-carrier function is disabled

NR SUL: 1 carrier

NR FDD: 2 carriers

LTE FDD: 1.4/3/5/10/15/20

NR SUL: 15/20

NR FDD: 5/10/15/20

5 RRU5905 (2100 MHz) Technical Specifications

The technical specifications of an RRU5905 (2100 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

5.1 RRU5905 (2100 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 5-1 Frequency bands and RATs supported by an RRU5905 (2100 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
2100 Band 1/n1 1920 to 1980 2110 to 2170 UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD), ULM 60

TX/RX Modes and Capacity

Table 5-2 TX/RX modes and capacity of an RRU5905 (2100 MHz)

Frequency Band (MHz)

Protocol-defined Band

TX/RX Modea

Capacityb

Supported Bandwidth (MHz)c
2100 Band 1/n1 2T2R

UMTS: 8 carriers (without MIMO) and 4 carriers (with MIMO)

LTE FDD: 2 carriers

NR SUL: 1 carrier

LTE NB-IoT: 1 carrier

NR FDD: 2 carriers

LTE FDD: 5/10/15/20

NR SUL: 15/20

NR FDD: 5/10/15/20/25/30/40
