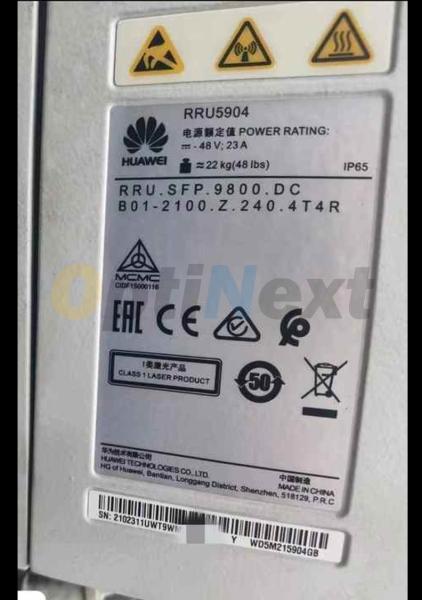

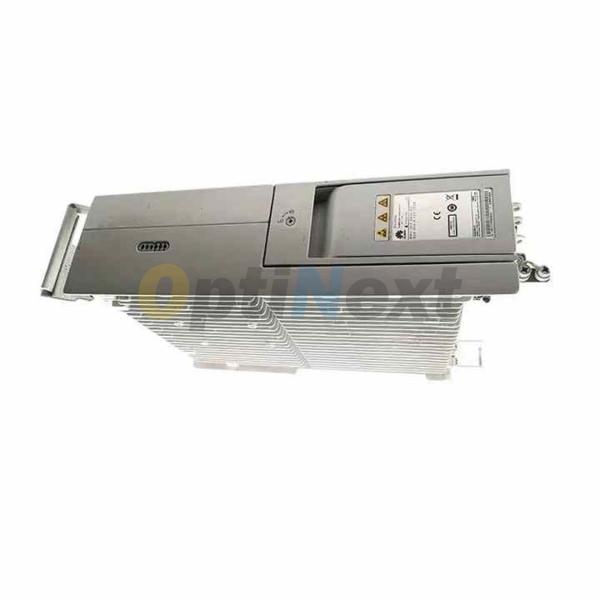

RRU5904
RRU5904
RRU5904
RRU5904
RRU5904
RRU5904
Specifications
Brand Name :
Huawei
Model Number :
RRU5904
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
15 working days
Description

3 RRU5904 (1800 MHz) Technical Specifications

The technical specifications of an RRU5904 (1800 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

3.1 RRU5904 (1800 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, G is short for GSM, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 3-1 Frequency bands and RATs supported by an RRU5904 (1800 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
1800 Band 3/n3 1710 to 1785 1805 to 1880 GSM, LTE FDD, GL, LTE NB-IoT, GM, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), MN (FDD), LMN (FDD) 45

4.1 RRU5904 (2100 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 4-1 Frequency bands and RATs supported by an RRU5904 (2100 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
2100 Band 1/n1 1920 to 1980 2110 to 2170 UMTS, LTE FDD, UL, ULM, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD), LM 60
